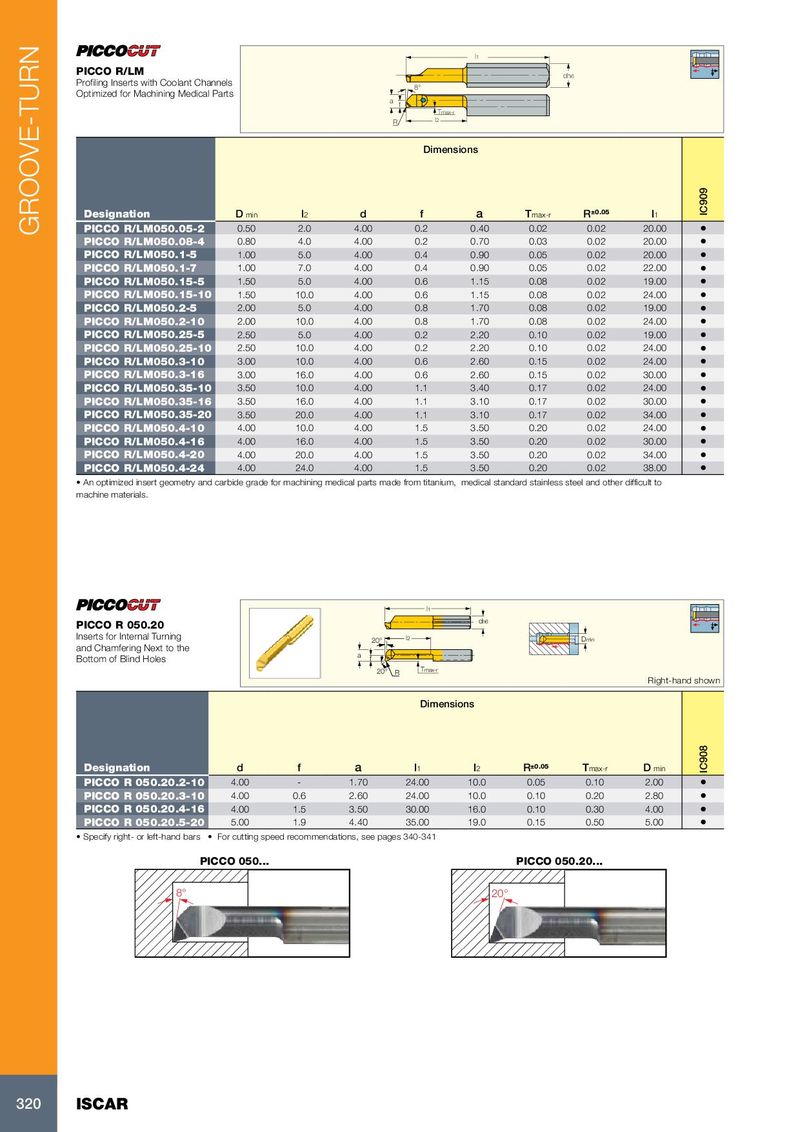

GROOVE-TURN
l1
PICCO R/LM dh6
Profiling Inserts with Coolant Channels 8°
Optimized for Machining Medical Parts
a
f
Tmax-r
R l2

Dimensions


IC909
Designation D min l2 d f a Tmax-r R±0.05 l1
PICCO R/LM050.05-2 0.50 2.0 4.00 0.2 0.40 0.02 0.02 20.00 •
PICCO R/LM050.08-4 0.80 4.0 4.00 0.2 0.70 0.03 0.02 20.00 •
PICCO R/LM050.1-5 1.00 5.0 4.00 0.4 0.90 0.05 0.02 20.00 •
PICCO R/LM050.1-7 1.00 7.0 4.00 0.4 0.90 0.05 0.02 22.00 •
PICCO R/LM050.15-5 1.50 5.0 4.00 0.6 1.15 0.08 0.02 19.00 •
PICCO R/LM050.15-10 1.50 10.0 4.00 0.6 1.15 0.08 0.02 24.00 •
PICCO R/LM050.2-5 2.00 5.0 4.00 0.8 1.70 0.08 0.02 19.00 •
PICCO R/LM050.2-10 2.00 10.0 4.00 0.8 1.70 0.08 0.02 24.00 •
PICCO R/LM050.25-5 2.50 5.0 4.00 0.2 2.20 0.10 0.02 19.00 •
PICCO R/LM050.25-10 2.50 10.0 4.00 0.2 2.20 0.10 0.02 24.00 •
PICCO R/LM050.3-10 3.00 10.0 4.00 0.6 2.60 0.15 0.02 24.00 •
PICCO R/LM050.3-16 3.00 16.0 4.00 0.6 2.60 0.15 0.02 30.00 •
PICCO R/LM050.35-10 3.50 10.0 4.00 1.1 3.40 0.17 0.02 24.00 •
PICCO R/LM050.35-16 3.50 16.0 4.00 1.1 3.10 0.17 0.02 30.00 •
PICCO R/LM050.35-20 3.50 20.0 4.00 1.1 3.10 0.17 0.02 34.00 •
PICCO R/LM050.4-10 4.00 10.0 4.00 1.5 3.50 0.20 0.02 24.00 •
PICCO R/LM050.4-16 4.00 16.0 4.00 1.5 3.50 0.20 0.02 30.00 •
PICCO R/LM050.4-20 4.00 20.0 4.00 1.5 3.50 0.20 0.02 34.00 •
PICCO R/LM050.4-24 4.00 24.0 4.00 1.5 3.50 0.20 0.02 38.00 •
• An optimized insert geometry and carbide grade for machining medical parts made from titanium, medical standard stainless steel and other difficult to
machine materials.


l1
dh6
PICCO R 050.20
Inserts for Internal Turning 20° l2 Dmin
and Chamfering Next to the
a
Bottom of Blind Holes f
20° R Tmax-r
Right-hand shown
Dimensions IC908


Designation d f a l1 l2 R±0.05 Tmax-r D min
PICCO R 050.20.2-10 4.00 - 1.70 24.00 10.0 0.05 0.10 2.00 •
PICCO R 050.20.3-10 4.00 0.6 2.60 24.00 10.0 0.10 0.20 2.80 •
PICCO R 050.20.4-16 4.00 1.5 3.50 30.00 16.0 0.10 0.30 4.00 •
PICCO R 050.20.5-20 5.00 1.9 4.40 35.00 19.0 0.15 0.50 5.00 •
• Specify right- or left-hand bars • For cutting speed recommendations, see pages 340-341
PICCO 050... PICCO 050.20...
8° 20°


320 ISCAR
