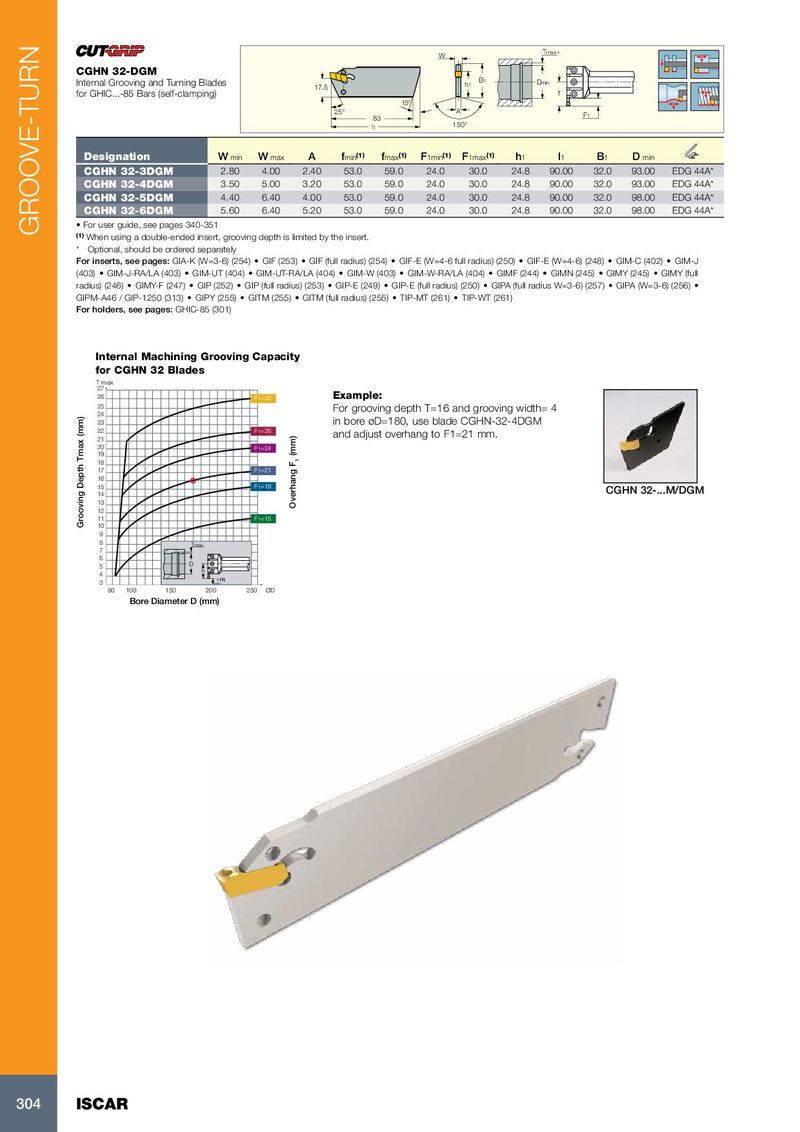

| CGHN 32-DGM Internal Grooving and Turning for GHIC...-85 Bars (self-clam | Blades ping) | 17.5 | 25° | 83 l1 15° | W | 150° A h1 B1 | Dmin f Tmax-r F | 1 | ||||
| Designation | Wmin | Wmax | A | fmin(1) | fmax(1) | F1min(1) | F1max(1) | h1 | l1 | B1 | Dmin | |
| CGHN 32-3DGM | 2.80 | 4.00 | 2.40 | 53.0 | 59.0 | 24.0 | 30.0 | 24.8 | 90.00 | 32.0 | 93.00 | EDG 44A |
| CGHN 32-4DGM | 3.50 | 5.00 | 3.20 | 53.0 | 59.0 | 24.0 | 30.0 | 24.8 | 90.00 | 32.0 | 93.00 | EDG 44A |
| CGHN 32-5DGM | 4.40 | 6.40 | 4.00 | 53.0 | 59.0 | 24.0 | 30.0 | 24.8 | 90.00 | 32.0 | 98.00 | EDG 44A |
| CGHN 32-6DGM | 5.60 | 6.40 | 5.20 | 53.0 | 59.0 | 24.0 | 30.0 | 24.8 | 90.00 | 32.0 | 98.00 | EDG 44A |
- For user guide, see pages 340-351
(1) When using a double-ended insert, grooving depth is limited by the insert. * Optional, should be ordered separately For inserts, see pages: GIA-K (W=3-6) (254) GIF (253) GIF (full radius) (254) GIF-E (W=4-6 full radius) (250) GIF-E (W=4-6) (248) GIM-C (402) GIM-J (403) GIM-J-RA/LA (403) GIM-UT (404) GIM-UT-RA/LA (404) GIM-W (403) GIM-W-RA/LA (404) GIMF (244) GIMN (245) GIMY (245) GIMY (full radius) (246) GIMY-F (247) GIP (252) GIP (full radius) (253) GIP-E (249) GIP-E (full radius) (250) GIPA (full radius W=3-6) (257) GIPA (W=3-6) (256) GIPM-A46 / GIP-1250 (313) GIPY (255) GITM (255) GITM (full radius) (255) TIP-MT (261) TIP-WT (261) For holders, see pages: GHIC-85 (301)
Internal Machining Grooving Capacity
for CGHN 32 Blades
T max 27 Example: 26 F1=30 25 For grooving depth T=16 and grooving width= 4 24 in bore øD=180, use blade CGHN-32-4DGM 23
22 F1=26 and adjust overhang to F1=21 mm.
21 20 F1=24 19 18
17 F1=21 16
15 F1=19 CGHN 32-...M/DGM
14 13 12 11 F1=15
10 9 8 T max 7 6 5 D 4 f1 3 T (1)
80 100 150 200 250 ØD
Bore Diameter D (mm)
