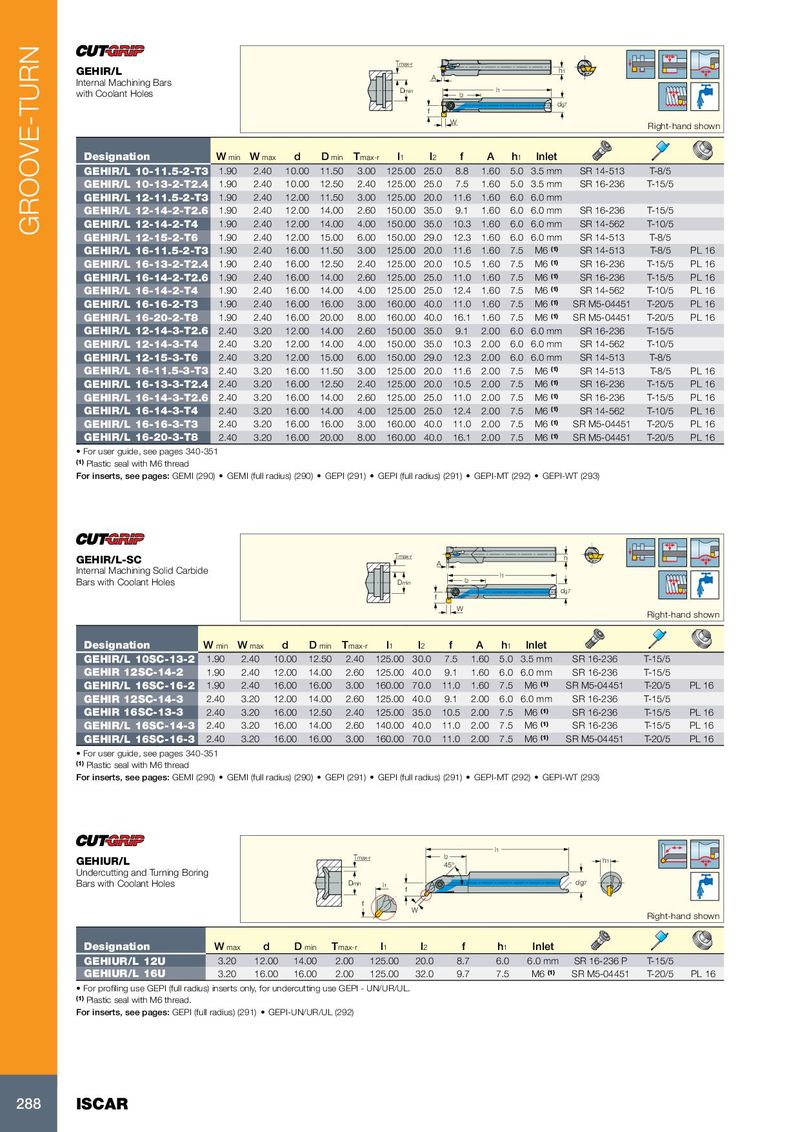

Каталог Iscar токарный инструмент 2017 - страница 292

Tmax-r GEHIR/L h1 A Internal Machining Bars Dmin l1 with Coolant Holes l2 dg7 f W Right-hand shown Designation W min W max d D min T max-r l 1 l 2 f A h 1 Inlet GEHIR/L 10-11.5-2-T3 1.90 2.40 10.00 11.50 3.00 125.00 25.0 8.8 1.60 5.0 3.5 mm SR 14-513 T-8/5 GEHIR/L 10-13-2-T2.4 1.90 2.40 10.00 12.50 2.40 125.00 25.0 7.5 1.60 5.0 3.5 mm SR 16-236 T-15/5 GEHIR/L 12-11.5-2-T3 1.90 2.40 12.00 11.50 3.00 125.00 20.0 11.6 1.60 6.0 6.0 mm GEHIR/L 12-14-2-T2.6 1.90 2.40 12.00 14.00 2.60 150.00 35.0 9.1 1.60 6.0 6.0 mm SR 16-236 T-15/5 GEHIR/L 12-14-2-T4 1.90 2.40 12.00 14.00 4.00 150.00 35.0 10.3 1.60 6.0 6.0 mm SR 14-562 T-10/5 GROOVE-TURN GEHIR/L 12-15-2-T6 1.90 2.40 12.00 15.00 6.00 150.00 29.0 12.3 1.60 6.0 6.0 mm SR 14-513 T-8/5 GEHIR/L 16-11.5-2-T3 1.90 2.40 16.00 11.50 3.00 125.00 20.0 11.6 1.60 7.5 M6 (1) SR 14-513 T-8/5 PL 16 GEHIR/L 16-13-2-T2.4 1.90 2.40 16.00 12.50 2.40 125.00 20.0 10.5 1.60 7.5 M6 (1) SR 16-236 T-15/5 PL 16 GEHIR/L 16-14-2-T2.6 1.90 2.40 16.00 14.00 2.60 125.00 25.0 11.0 1.60 7.5 M6 (1) SR 16-236 T-15/5 PL 16 GEHIR/L 16-14-2-T4 1.90 2.40 16.00 14.00 4.00 125.00 25.0 12.4 1.60 7.5 M6 (1) SR 14-562 T-10/5 PL 16 GEHIR/L 16-16-2-T3 1.90 2.40 16.00 16.00 3.00 160.00 40.0 11.0 1.60 7.5 M6 (1) SR M5-04451 T-20/5 PL 16 GEHIR/L 16-20-2-T8 1.90 2.40 16.00 20.00 8.00 160.00 40.0 16.1 1.60 7.5 M6 (1) SR M5-04451 T-20/5 PL 16 GEHIR/L 12-14-3-T2.6 2.40 3.20 12.00 14.00 2.60 150.00 35.0 9.1 2.00 6.0 6.0 mm SR 16-236 T-15/5 GEHIR/L 12-14-3-T4 2.40 3.20 12.00 14.00 4.00 150.00 35.0 10.3 2.00 6.0 6.0 mm SR 14-562 T-10/5 GEHIR/L 12-15-3-T6 2.40 3.20 12.00 15.00 6.00 150.00 29.0 12.3 2.00 6.0 6.0 mm SR 14-513 T-8/5 GEHIR/L 16-11.5-3-T3 2.40 3.20 16.00 11.50 3.00 125.00 20.0 11.6 2.00 7.5 M6 (1) SR 14-513 T-8/5 PL 16 GEHIR/L 16-13-3-T2.4 2.40 3.20 16.00 12.50 2.40 125.00 20.0 10.5 2.00 7.5 M6 (1) SR 16-236 T-15/5 PL 16 GEHIR/L 16-14-3-T2.6 2.40 3.20 16.00 14.00 2.60 125.00 25.0 11.0 2.00 7.5 M6 (1) SR 16-236 T-15/5 PL 16 GEHIR/L 16-14-3-T4 2.40 3.20 16.00 14.00 4.00 125.00 25.0 12.4 2.00 7.5 M6 (1) SR 14-562 T-10/5 PL 16 GEHIR/L 16-16-3-T3 2.40 3.20 16.00 16.00 3.00 160.00 40.0 11.0 2.00 7.5 M6 (1) SR M5-04451 T-20/5 PL 16 GEHIR/L 16-20-3-T8 2.40 3.20 16.00 20.00 8.00 160.00 40.0 16.1 2.00 7.5 M6 (1) SR M5-04451 T-20/5 PL 16 • For user guide, see pages 340-351 (1) Plastic seal with M6 thread For inserts, see pages: GEMI (290) • GEMI (full radius) (290) • GEPI (291) • GEPI (full radius) (291) • GEPI-MT (292) • GEPI-WT (293) Tmax-r GEHIR/L-SC h A Internal Machining Solid Carbide l1 Bars with Coolant Holes Dmin l2 dg7 f W Right-hand shown Designation W min W max d D min T max-r l 1 l 2 f A h 1 Inlet GEHIR/L 10SC-13-2 1.90 2.40 10.00 12.50 2.40 125.00 30.0 7.5 1.60 5.0 3.5 mm SR 16-236 T-15/5 GEHIR 12SC-14-2 1.90 2.40 12.00 14.00 2.60 125.00 40.0 9.1 1.60 6.0 6.0 mm SR 16-236 T-15/5 GEHIR/L 16SC-16-2 1.90 2.40 16.00 16.00 3.00 160.00 70.0 11.0 1.60 7.5 M6 (1) SR M5-04451 T-20/5 PL 16 GEHIR 12SC-14-3 2.40 3.20 12.00 14.00 2.60 125.00 40.0 9.1 2.00 6.0 6.0 mm SR 16-236 T-15/5 GEHIR 16SC-13-3 2.40 3.20 16.00 12.50 2.40 125.00 35.0 10.5 2.00 7.5 M6 (1) SR 16-236 T-15/5 PL 16 GEHIR/L 16SC-14-3 2.40 3.20 16.00 14.00 2.60 140.00 40.0 11.0 2.00 7.5 M6 (1) SR 16-236 T-15/5 PL 16 GEHIR/L 16SC-16-3 2.40 3.20 16.00 16.00 3.00 160.00 70.0 11.0 2.00 7.5 M6 (1) SR M5-04451 T-20/5 PL 16 • For user guide, see pages 340-351 (1) Plastic seal with M6 thread For inserts, see pages: GEMI (290) • GEMI (full radius) (290) • GEPI (291) • GEPI (full radius) (291) • GEPI-MT (292) • GEPI-WT (293) l1 Tmax-r l2 GEHIUR/L h1 45° Undercutting and Turning Boring Bars with Coolant Holes Dmin l1 dg7 f f W Right-hand shown Designation W max d D min T max-r l 1 l 2 f h 1 Inlet GEHIUR/L 12U 3.20 12.00 14.00 2.00 125.00 20.0 8.7 6.0 6.0 mm SR 16-236 P T-15/5 GEHIUR/L 16U 3.20 16.00 16.00 2.00 125.00 32.0 9.7 7.5 M6 (1) SR M5-04451 T-20/5 PL 16 • For profiling use GEPI (full radius) inserts only, for undercutting use GEPI - UN/UR/UL. (1) Plastic seal with M6 thread. For inserts, see pages: GEPI (full radius) (291) • GEPI-UN/UR/UL (292) 288 ISCAR
