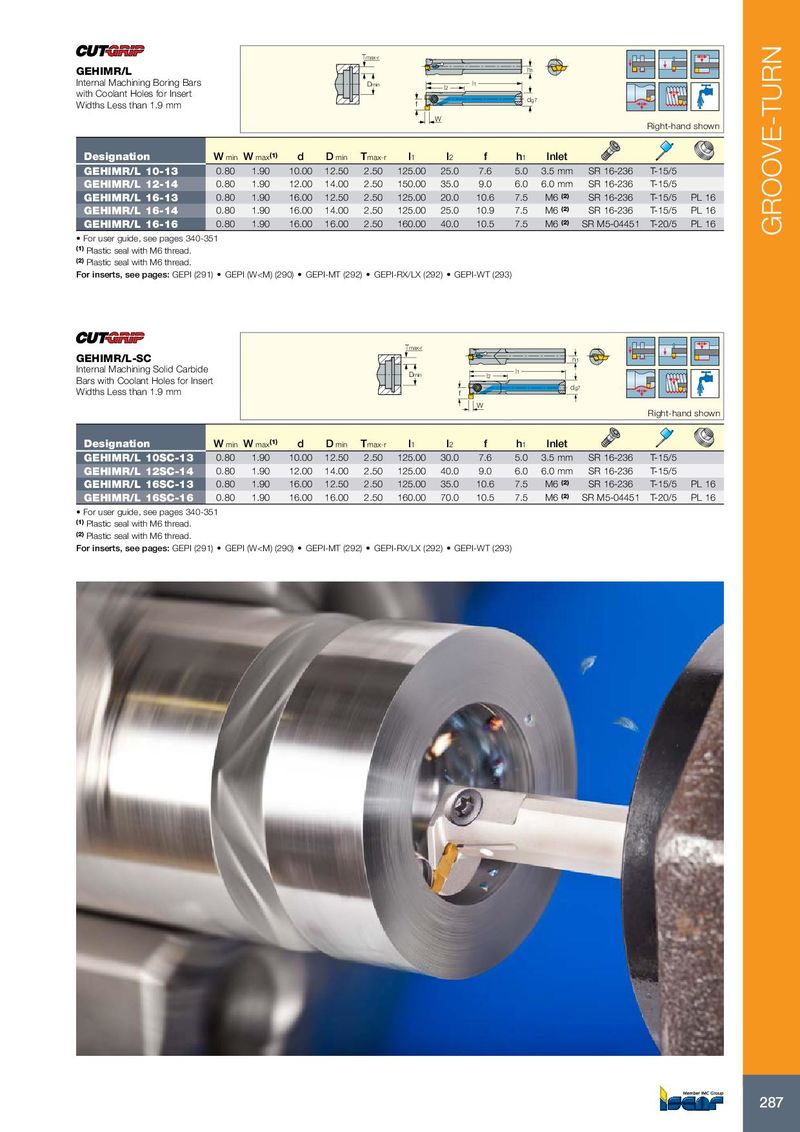

Tmax-r GEHIMR/L h1 Internal Machining Boring Bars Dmin l1 l2 with Coolant Holes for Insert dg7 Widths Less than 1.9 mm f W Right-hand shown Designation W min W max (1) d D min T max-r l 1 l 2 f h 1 Inlet GEHIMR/L 10-13 0.80 1.90 10.00 12.50 2.50 125.00 25.0 7.6 5.0 3.5 mm SR 16-236 T-15/5 GEHIMR/L 12-14 0.80 1.90 12.00 14.00 2.50 150.00 35.0 9.0 6.0 6.0 mm SR 16-236 T-15/5 GEHIMR/L 16-13 0.80 1.90 16.00 12.50 2.50 125.00 20.0 10.6 7.5 M6 (2) SR 16-236 T-15/5 PL 16 GEHIMR/L 16-14 0.80 1.90 16.00 14.00 2.50 125.00 25.0 10.9 7.5 M6 (2) SR 16-236 T-15/5 PL 16 GEHIMR/L 16-16 0.80 1.90 16.00 16.00 2.50 160.00 40.0 10.5 7.5 M6 (2) SR M5-04451 T-20/5 PL 16 GROOVE-TURN • For user guide, see pages 340-351 (1) Plastic seal with M6 thread. (2) Plastic seal with M6 thread. For inserts, see pages: GEPI (291) • GEPI (W
