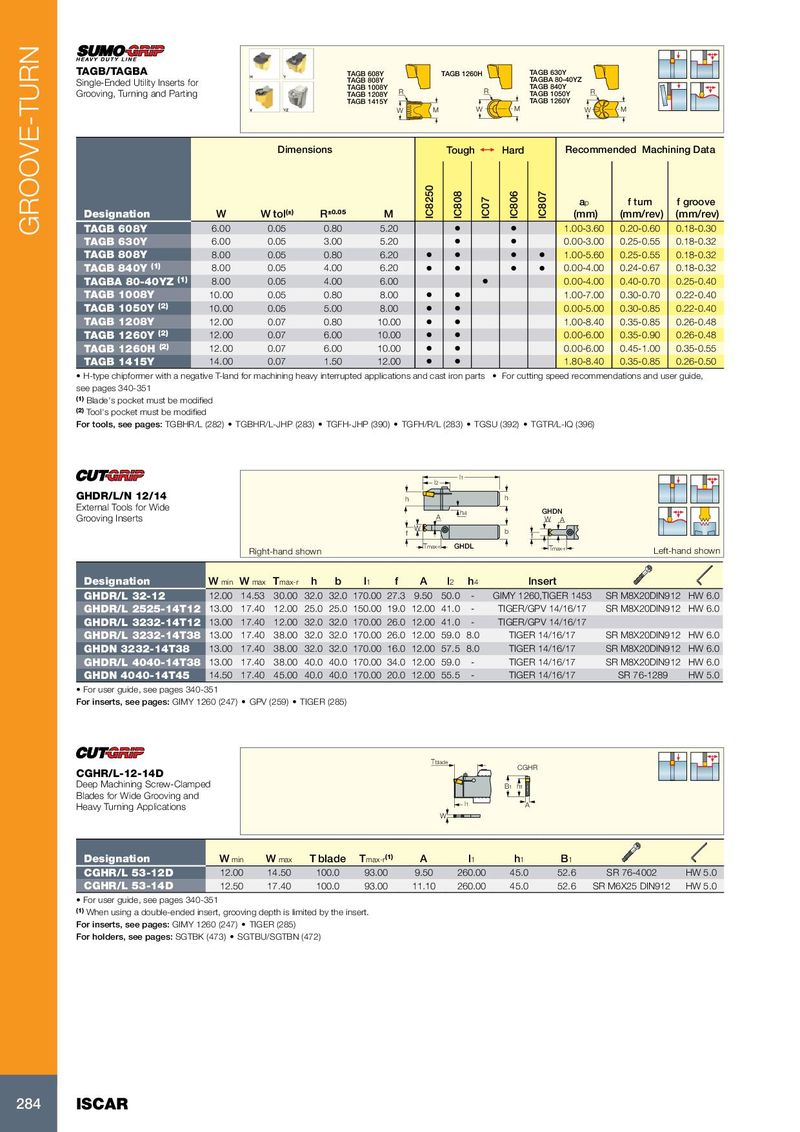

| TAGB/TAGBA Single-Ended Utility Inserts for | TAG TAG TAG | B 608Y B 808Y 1008Y | TAGB 126 | 0H | TAGB 63 TAGBA TAGB 8 | 0Y 80-40YZ 0Y | ||||||
| Grooving, Turning and Parting | TAG TAG | R W B 1208Y B 1415Y | M | R W | M | TAGB 10 TAGB 12 | R W 50Y 60Y | M | ||||
| Dimensi | ons | Toug | h1 | Hard | Recomme | nded Mach | ining Data | |||||
| Designation | W | W tol(±) | R±0.05 | M | IC8250 | IC808 | IC07 | IC806 | IC807 | ap (mm) | f turn (mm/rev) | f groove (mm/rev) |
| TAGB 608Y | 6.00 | 0.05 | 0.80 | 5.20 | • | • | 1.00-3.60 | 0.20-0.60 | 0.18-0.30 | |||
| TAGB 630Y | 6.00 | 0.05 | 3.00 | 5.20 | • | • | 0.00-3.00 | 0.25-0.55 | 0.18-0.32 | |||
| TAGB 808Y | 8.00 | 0.05 | 0.80 | 6.20 | • | • | • | • | 1.00-5.60 | 0.25-0.55 | 0.18-0.32 | |
| TAGB 840Y(1) | 8.00 | 0.05 | 4.00 | 6.20 | • | • | • | • | 0.00-4.00 | 0.24-0.67 | 0.18-0.32 | |
| TAGBA 80-40YZ(1) | 8.00 | 0.05 | 4.00 | 6.00 | • | 0.00-4.00 | 0.40-0.70 | 0.25-0.40 | ||||
| TAGB 1008Y | 10.00 | 0.05 | 0.80 | 8.00 | • | • | 1.00-7.00 | 0.30-0.70 | 0.22-0.40 | |||
| TAGB 1050Y(2) | 10.00 | 0.05 | 5.00 | 8.00 | • | • | 0.00-5.00 | 0.30-0.85 | 0.22-0.40 | |||
| TAGB 1208Y | 12.00 | 0.07 | 0.80 | 10.00 | • | • | 1.00-8.40 | 0.35-0.85 | 0.26-0.48 | |||
| TAGB 1260Y(2) | 12.00 | 0.07 | 6.00 | 10.00 | • | • | 0.00-6.00 | 0.35-0.90 | 0.26-0.48 | |||
| TAGB 1260H(2) | 12.00 | 0.07 | 6.00 | 10.00 | • | • | 0.00-6.00 | 0.45-1.00 | 0.35-0.55 | |||
| TAGB 1415Y | 14.00 | 0.07 | 1.50 | 12.00 | • | • | 1.80-8.40 | 0.35-0.85 | 0.26-0.50 |
- H-type chipformer with a negative T-land for machining heavy interrupted applications and cast iron parts
- For cutting speed recommendations and user guide,
see pages 340-351 (1) Blade's pocket must be modified (2) Tool's pocket must be modified For tools, see pages: TGBHR/L (282) TGBHR/L-JHP (283) TGFH-JHP (390) TGFH/R/L (283) TGSU (392) TGTR/L-IQ (396)
| GHDR/L/N 12/14 | h | l2 | l1 | h | |||||
| External Tools for Wide Grooving Inserts | f | W A | h4 | b A W f GHDN | |||||
| Right | -hand s | hown | Tmax-r | GHDL | Tmax-r | Left-han | d shown | ||
| Designation | Wmin | Wmax | Tmax-r | h b l1 f | A | l2 h4 | Insert | ||
| GHDR/L 32-12 | 12.00 | 14.53 | 30.00 | 32.0 32.0 170.00 27.3 | 9.50 | 50.0 - | GIMY 1260,TIGER 1453 | SR M8X20DIN912 | HW 6.0 |
| GHDR/L 2525-14T12 | 13.00 | 17.40 | 12.00 | 25.0 25.0 150.00 19.0 | 12.00 | 41.0 - | TIGER/GPV 14/16/17 | SR M8X20DIN912 | HW 6.0 |
| GHDR/L 3232-14T12 | 13.00 | 17.40 | 12.00 | 32.0 32.0 170.00 26.0 | 12.00 | 41.0 - | TIGER/GPV 14/16/17 | ||
| GHDR/L 3232-14T38 | 13.00 | 17.40 | 38.00 | 32.0 32.0 170.00 26.0 | 12.00 | 59.0 8.0 | TIGER 14/16/17 | SR M8X20DIN912 | HW 6.0 |
| GHDN 3232-14T38 | 13.00 | 17.40 | 38.00 | 32.0 32.0 170.00 16.0 | 12.00 | 57.5 8.0 | TIGER 14/16/17 | SR M8X20DIN912 | HW 6.0 |
| GHDR/L 4040-14T38 | 13.00 | 17.40 | 38.00 | 40.0 40.0 170.00 34.0 | 12.00 | 59.0 - | TIGER 14/16/17 | SR M8X20DIN912 | HW 6.0 |
| GHDN 4040-14T45 | 14.50 | 17.40 | 45.00 | 40.0 40.0 170.00 20.0 | 12.00 | 55.5 - | TIGER 14/16/17 | SR 76-1289 | HW 5.0 |
- For user guide, see pages 340-351
For inserts, see pages: GIMY 1260 (247) GPV (259) TIGER (285)
| CGHR/L-12-14D Deep Machining Screw-Clamped | Tblad | e | CGHR h1 B1 | |||||||
| Blades for Wide Grooving and Heavy Turning Applications | W | l1 | A | |||||||
| Designation | Wmin | Wmax | T blade | Tmax-r(1) | A | l1 | h1 | B1 | ||
| CGHR/L 53-12D | 12.00 | 14.50 | 100.0 | 93.00 | 9.50 | 260.00 | 45.0 | 52.6 | SR 76-4002 | HW 5.0 |
| CGHR/L 53-14D | 12.50 | 17.40 | 100.0 | 93.00 | 11.10 | 260.00 | 45.0 | 52.6 | SR M6X25 DIN912 | HW 5.0 |
- For user guide, see pages 340-351
(1) When using a double-ended insert, grooving depth is limited by the insert. For inserts, see pages: GIMY 1260 (247) TIGER (285) For holders, see pages: SGTBK (473) SGTBU/SGTBN (472)
