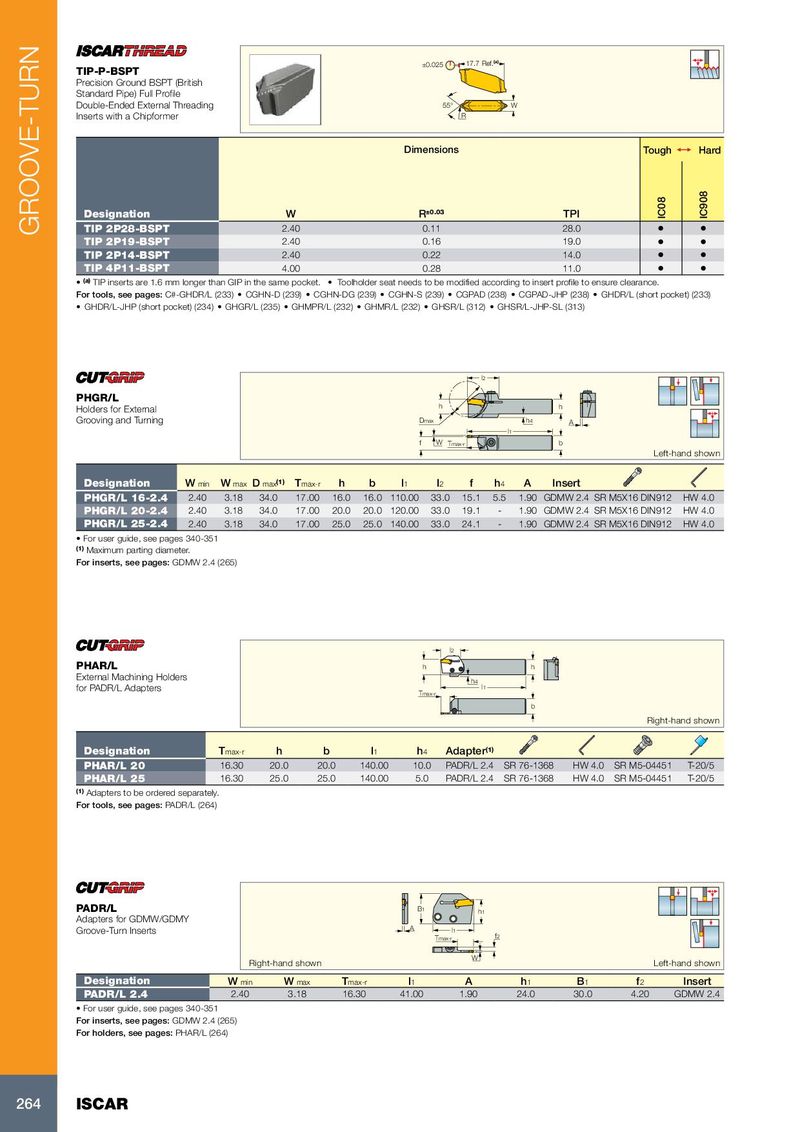

Каталог Iscar токарный инструмент 2017 - страница 268

17.7 Ref. (a) ±0.025 TIP-P-BSPT Precision Ground BSPT (British Standard Pipe) Full Profile Double-Ended External Threading 55° W Inserts with a Chipformer R Dimensions Tough 1  Hard Designation W R ±0.03 TPI IC08 IC908 GROOVE-TURN TIP 2P28-BSPT 2.40 0.11 28.0 • • TIP 2P19-BSPT 2.40 0.16 19.0 • • TIP 2P14-BSPT 2.40 0.22 14.0 • • TIP 4P11-BSPT 4.00 0.28 11.0 • • • (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance. For tools, see pages: C#-GHDR/L (233) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) • GHSR/L (312) • GHSR/L-JHP-SL (313) l2 PHGR/L Holders for External h h Grooving and Turning Dmax h4 A l1 f W Tmax-r b Left-hand shown Designation W min W max D max (1) T max-r h b l 1 l 2 f h 4 A Insert PHGR/L 16-2.4 2.40 3.18 34.0 17.00 16.0 16.0 110.00 33.0 15.1 5.5 1.90 GDMW 2.4 SR M5X16 DIN912 HW 4.0 PHGR/L 20-2.4 2.40 3.18 34.0 17.00 20.0 20.0 120.00 33.0 19.1 - 1.90 GDMW 2.4 SR M5X16 DIN912 HW 4.0 PHGR/L 25-2.4 2.40 3.18 34.0 17.00 25.0 25.0 140.00 33.0 24.1 - 1.90 GDMW 2.4 SR M5X16 DIN912 HW 4.0 • For user guide, see pages 340-351 (1) Maximum parting diameter. For inserts, see pages: GDMW 2.4 (265) l2 PHAR/L h h External Machining Holders h4 for PADR/L Adapters l1 Tmax-r b Right-hand shown Designation T max-r h b l 1 h 4 Adapter (1) PHAR/L 20 16.30 20.0 20.0 140.00 10.0 PADR/L 2.4 SR 76-1368 HW 4.0 SR M5-04451 T-20/5 PHAR/L 25 16.30 25.0 25.0 140.00 5.0 PADR/L 2.4 SR 76-1368 HW 4.0 SR M5-04451 T-20/5 (1) Adapters to be ordered separately. For tools, see pages: PADR/L (264) PADR/L B1 h1 Adapters for GDMW/GDMY Groove-Turn Inserts A l1 Tmax-r f2 W Right-hand shown Left-hand shown Designation W min W max T max-r l 1 A h 1 B 1 f 2 Insert PADR/L 2.4 2.40 3.18 16.30 41.00 1.90 24.0 30.0 4.20 GDMW 2.4 • For user guide, see pages 340-351 For inserts, see pages: GDMW 2.4 (265) For holders, see pages: PHAR/L (264) 264 ISCAR
