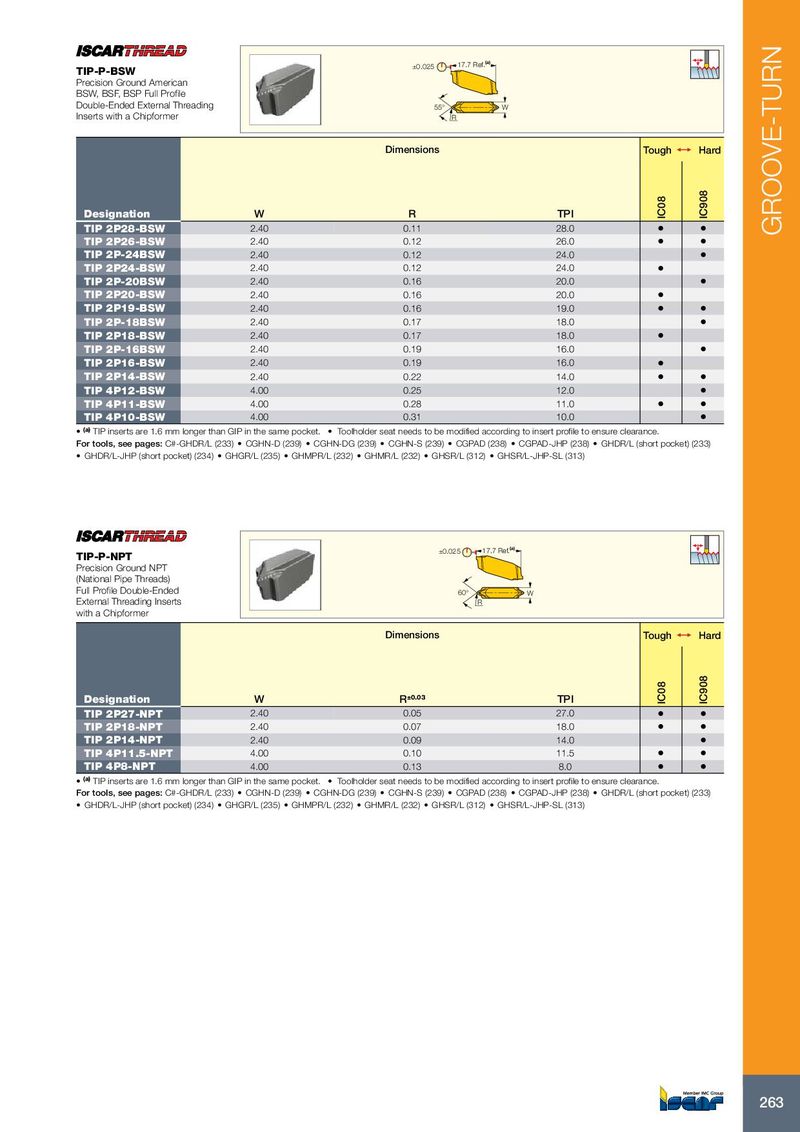

Каталог Iscar токарный инструмент 2017 - страница 267

17.7 Ref. (a) ±0.025 TIP-P-BSW Precision Ground American BSW, BSF, BSP Full Profile Double-Ended External Threading 55° W Inserts with a Chipformer R Dimensions Tough 1  Hard Designation W R TPI IC08 IC908 TIP 2P28-BSW 2.40 0.11 28.0 • • GROOVE-TURN TIP 2P26-BSW 2.40 0.12 26.0 • • TIP 2P-24BSW 2.40 0.12 24.0 • TIP 2P24-BSW 2.40 0.12 24.0 • TIP 2P-20BSW 2.40 0.16 20.0 • TIP 2P20-BSW 2.40 0.16 20.0 • TIP 2P19-BSW 2.40 0.16 19.0 • • TIP 2P-18BSW 2.40 0.17 18.0 • TIP 2P18-BSW 2.40 0.17 18.0 • TIP 2P-16BSW 2.40 0.19 16.0 • TIP 2P16-BSW 2.40 0.19 16.0 • TIP 2P14-BSW 2.40 0.22 14.0 • • TIP 4P12-BSW 4.00 0.25 12.0 • TIP 4P11-BSW 4.00 0.28 11.0 • • TIP 4P10-BSW 4.00 0.31 10.0 • • (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance. For tools, see pages: C#-GHDR/L (233) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) • GHSR/L (312) • GHSR/L-JHP-SL (313) ±0.025 17.7 Ref. (a) TIP-P-NPT Precision Ground NPT (National Pipe Threads) Full Profile Double-Ended 60° W External Threading Inserts R with a Chipformer Dimensions Tough 1  Hard Designation W R ±0.03 TPI IC08 IC908 TIP 2P27-NPT 2.40 0.05 27.0 • • TIP 2P18-NPT 2.40 0.07 18.0 • • TIP 2P14-NPT 2.40 0.09 14.0 • TIP 4P11.5-NPT 4.00 0.10 11.5 • • TIP 4P8-NPT 4.00 0.13 8.0 • • • (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance. For tools, see pages: C#-GHDR/L (233) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) • GHSR/L (312) • GHSR/L-JHP-SL (313) 263
