90° lt 45°

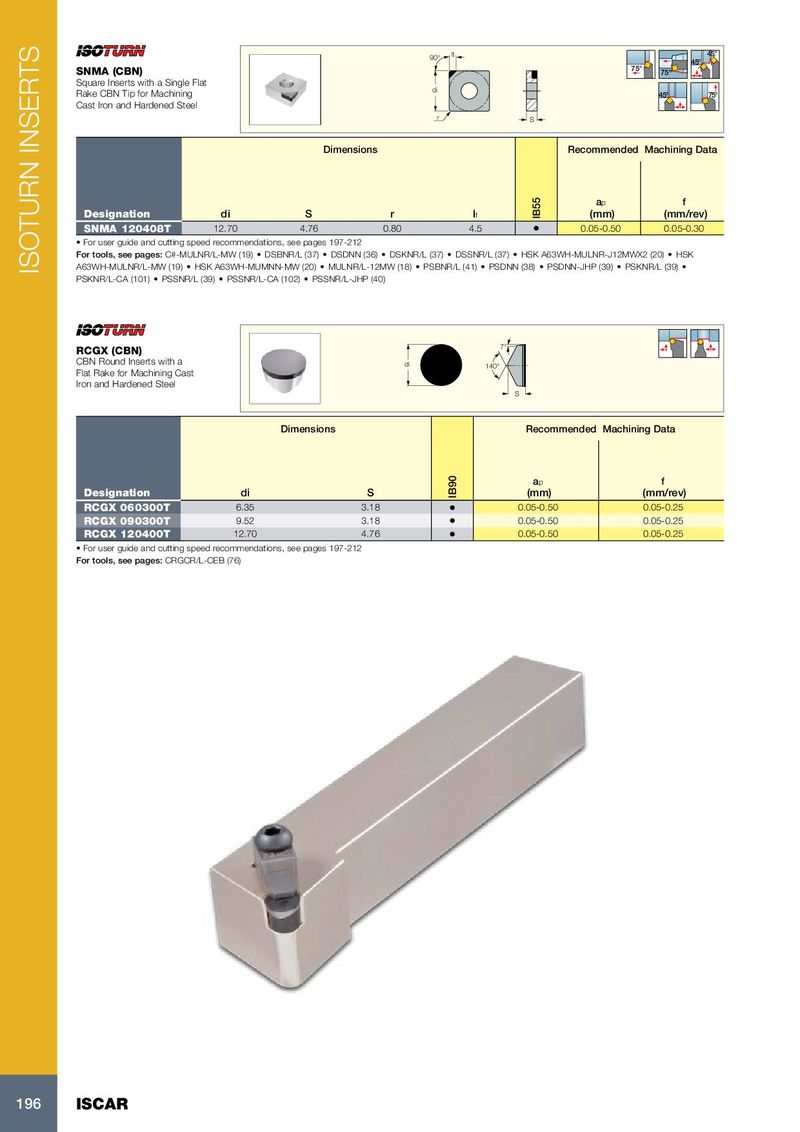

SNMA (CBN) 75° 75º
Square Inserts with a Single Flat Rake CBN Tip for Machining di 45° 75° Cast Iron and Hardened Steel
r S
Dimensions Recommended Machining Data
ap f
| Designation | di | S | r | lt | (mm) | (mm/rev) | |
| SNMA 120408T | 12.70 | 4.76 | 0.80 | 4.5 | • | 0.05-0.50 | 0.05-0.30 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-MULNR/L-MW (19) DSBNR/L (37) DSDNN (36) DSKNR/L (37) DSSNR/L (37) HSK A63WH-MULNR-J12MWX2 (20) HSK A63WH-MULNR/L-MW (19) HSK A63WH-MUMNN-MW (20) MULNR/L-12MW (18) PSBNR/L (41) PSDNN (38) PSDNN-JHP (39) PSKNR/L (39) PSKNR/L-CA (101) PSSNR/L (39) PSSNR/L-CA (102) PSSNR/L-JHP (40)
| RCGX (CBN) CBN Round Inserts with a Flat Rake for Machining Cast Iron and Hardened Steel | d | i | S 7° 140° | ||
| Dimensions | Recommended | Machining Data | |||
| Designation | di | S | IB90 | ap (mm) | f (mm/rev) |
| RCGX 060300T | 6.35 | 3.18 | • | 0.05-0.50 | 0.05-0.25 |
| RCGX 090300T | 9.52 | 3.18 | • | 0.05-0.50 | 0.05-0.25 |
| RCGX 120400T | 12.70 | 4.76 | • | 0.05-0.50 | 0.05-0.25 |
- For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: CRGCR/L-CEB (76)
