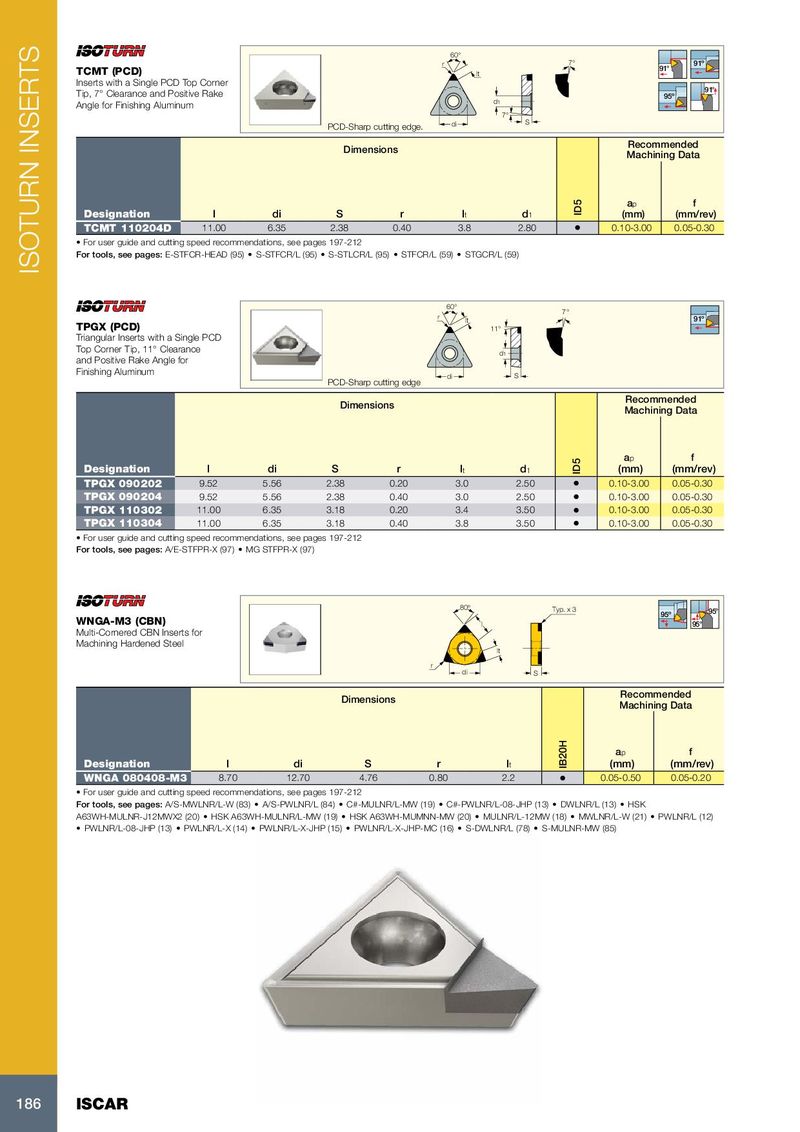

ISOTURN INSERTS
60°
r 7° 91º
91°
TCMT (PCD) lt
Inserts with a Single PCD Top Corner
91°
Tip, 7° Clearance and Positive Rake 95º
d1
Angle for Finishing Aluminum
7°
di S
PCD-Sharp cutting edge.
Recommended
Dimensions
Machining Data

ap f


ID5
Designation l di S r lt d1 (mm) (mm/rev)
TCMT 110204D 11.00 6.35 2.38 0.40 3.8 2.80 • 0.10-3.00 0.05-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: E-STFCR-HEAD (95) • S-STFCR/L (95) • S-STLCR/L (95) • STFCR/L (59) • STGCR/L (59)


60°
7°
r lt 91º
TPGX (PCD) 11°
Triangular Inserts with a Single PCD
Top Corner Tip, 11° Clearance d1
and Positive Rake Angle for
Finishing Aluminum di S
PCD-Sharp cutting edge
Recommended
Dimensions
Machining Data

ap f


ID5
Designation l di S r lt d1 (mm) (mm/rev)
TPGX 090202 9.52 5.56 2.38 0.20 3.0 2.50 • 0.10-3.00 0.05-0.30
TPGX 090204 9.52 5.56 2.38 0.40 3.0 2.50 • 0.10-3.00 0.05-0.30
TPGX 110302 11.00 6.35 3.18 0.20 3.4 3.50 • 0.10-3.00 0.05-0.30
TPGX 110304 11.00 6.35 3.18 0.40 3.8 3.50 • 0.10-3.00 0.05-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E-STFPR-X (97) • MG STFPR-X (97)


80º Typ. x 3
95º 95°
WNGA-M3 (CBN) l 95°
Multi-Cornered CBN Inserts for
Machining Hardened Steel
lt
r
di S

Recommended
Dimensions
Machining Data
IB20H


ap f
Designation l di S r lt (mm) (mm/rev)
WNGA 080408-M3 8.70 12.70 4.76 0.80 2.2 • 0.05-0.50 0.05-0.20
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) • DWLNR/L (13) • HSK
A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-W (21) • PWLNR/L (12)
• PWLNR/L-08-JHP (13) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85)


186 ISCAR
