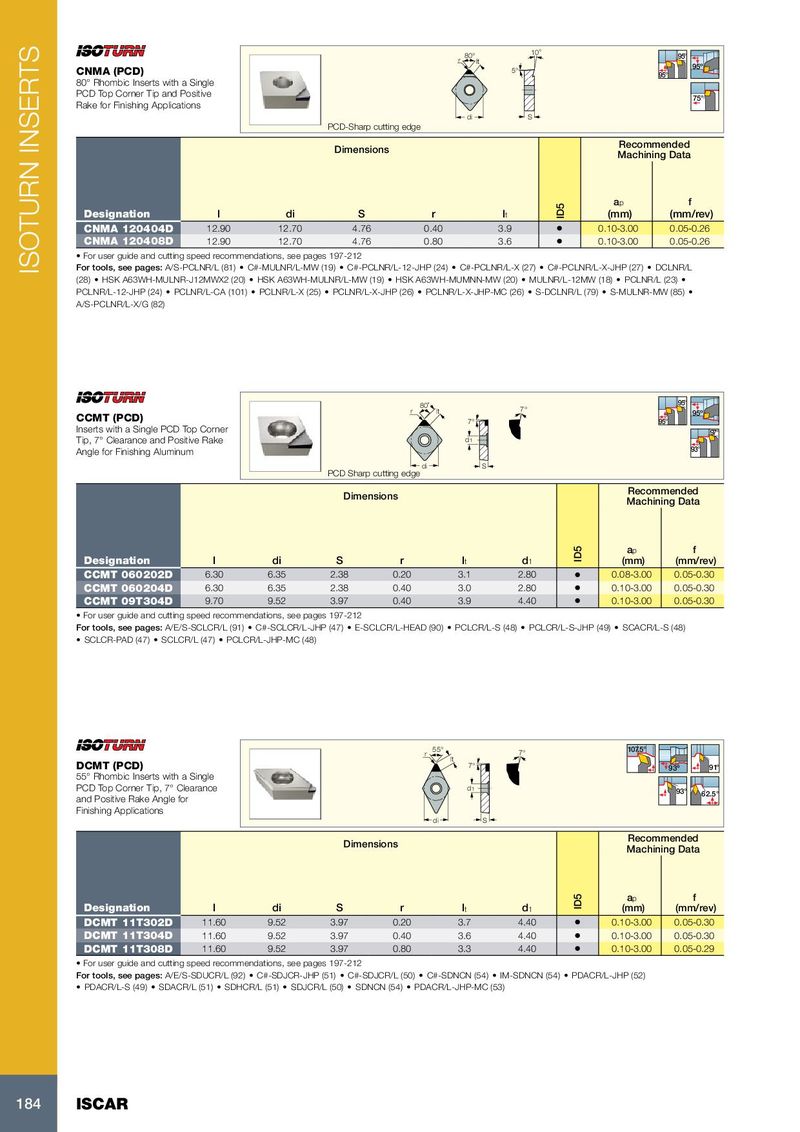

Каталог Iscar токарный инструмент 2017 - страница 188

80 ° 10 ° r 95° It 95º CNMA (PCD) 5 ° 95° 80° Rhombic Inserts with a Single PCD Top Corner Tip and Positive 75° Rake for Finishing Applications di S PCD-Sharp cutting edge Recommended Dimensions Machining Data a p f Designation l di S r l t ID5 (mm) (mm/rev) CNMA 120404D 12.90 12.70 4.76 0.40 3.9 • 0.10-3.00 0.05-0.26 CNMA 120408D 12.90 12.70 4.76 0.80 3.6 • 0.10-3.00 0.05-0.26 • For user guide and cutting speed recommendations, see pages 197-212 ISOTURN INSERTS For tools, see pages: A/S-PCLNR/L (81) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP (27) • DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) • S-MULNR-MW (85) • A/S-PCLNR/L-X/G (82) 80˚ 95° r lt 7° 95º CCMT (PCD) 7° 95° Inserts with a Single PCD Top Corner 97° Tip, 7° Clearance and Positive Rake d1 Angle for Finishing Aluminum 93° di S PCD Sharp cutting edge Recommended Dimensions Machining Data a p f Designation l di S r l t d 1 ID5 (mm) (mm/rev) CCMT 060202D 6.30 6.35 2.38 0.20 3.1 2.80 • 0.08-3.00 0.05-0.30 CCMT 060204D 6.30 6.35 2.38 0.40 3.0 2.80 • 0.10-3.00 0.05-0.30 CCMT 09T304D 9.70 9.52 3.97 0.40 3.9 4.40 • 0.10-3.00 0.05-0.30 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: A/E/S-SCLCR/L (91) • C#-SCLCR/L-JHP (47) • E-SCLCR/L-HEAD (90) • PCLCR/L-S (48) • PCLCR/L-S-JHP (49) • SCACR/L-S (48) • SCLCR-PAD (47) • SCLCR/L (47) • PCLCR/L-JHP-MC (48) r 55 ° 7 ° 107.5° lt DCMT (PCD) 7 ° 93º 91° 55° Rhombic Inserts with a Single PCD Top Corner Tip, 7° Clearance d1 93° 62.5° and Positive Rake Angle for Finishing Applications di S Recommended Dimensions Machining Data a p f Designation l di S r l t d 1 ID5 (mm) (mm/rev) DCMT 11T302D 11.60 9.52 3.97 0.20 3.7 4.40 • 0.10-3.00 0.05-0.30 DCMT 11T304D 11.60 9.52 3.97 0.40 3.6 4.40 • 0.10-3.00 0.05-0.30 DCMT 11T308D 11.60 9.52 3.97 0.80 3.3 4.40 • 0.10-3.00 0.05-0.29 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: A/E/S-SDUCR/L (92) • C#-SDJCR-JHP (51) • C#-SDJCR/L (50) • C#-SDNCN (54) • IM-SDNCN (54) • PDACR/L-JHP (52) • PDACR/L-S (49) • SDACR/L (51) • SDHCR/L (51) • SDJCR/L (50) • SDNCN (54) • PDACR/L-JHP-MC (53) 184 ISCAR
