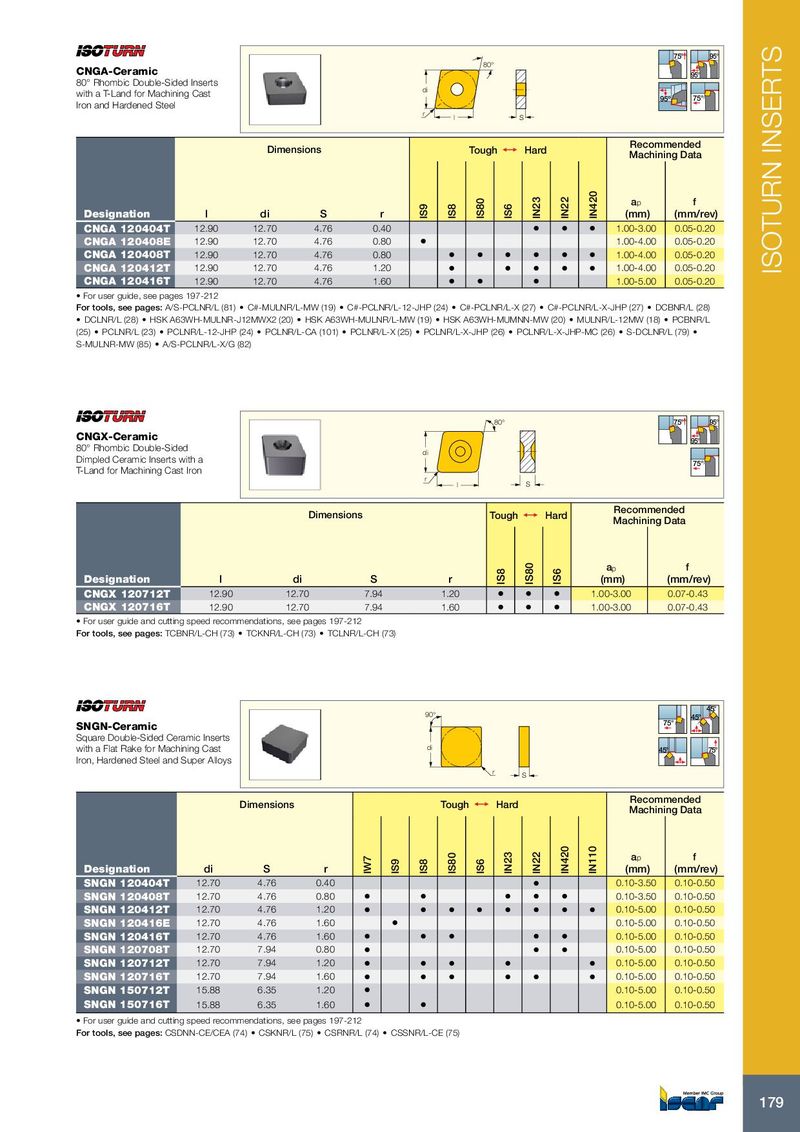

ISOTURN INSERTS
75° 95°
80°
CNGA-Ceramic 95°
80° Rhombic Double-Sided Inserts
di
with a T-Land for Machining Cast 95º 75°
Iron and Hardened Steel
r
l S

Recommended
Dimensions Tough 1 Hard
Machining Data


IN420
ap f


IN23
IN22
IS80
IS9
IS8


IS6
Designation l di S r (mm) (mm/rev)
CNGA 120404T 12.90 12.70 4.76 0.40 • • • 1.00-3.00 0.05-0.20
CNGA 120408E 12.90 12.70 4.76 0.80 • 1.00-4.00 0.05-0.20
CNGA 120408T 12.90 12.70 4.76 0.80 • • • • • • 1.00-4.00 0.05-0.20
CNGA 120412T 12.90 12.70 4.76 1.20 • • • • • 1.00-4.00 0.05-0.20
CNGA 120416T 12.90 12.70 4.76 1.60 • • • 1.00-5.00 0.05-0.20
• For user guide, see pages 197-212
For tools, see pages: A/S-PCLNR/L (81) • C#-MULNR/L-MW (19) • C#-PCLNR/L-12-JHP (24) • C#-PCLNR/L-X (27) • C#-PCLNR/L-X-JHP (27) • DCBNR/L (28)
• DCLNR/L (28) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • PCBNR/L
(25) • PCLNR/L (23) • PCLNR/L-12-JHP (24) • PCLNR/L-CA (101) • PCLNR/L-X (25) • PCLNR/L-X-JHP (26) • PCLNR/L-X-JHP-MC (26) • S-DCLNR/L (79) •
S-MULNR-MW (85) • A/S-PCLNR/L-X/G (82)


80° 75° 95°
CNGX-Ceramic 95°
80° Rhombic Double-Sided di
Dimpled Ceramic Inserts with a 75°
T-Land for Machining Cast Iron
r
l S

Recommended
Dimensions Tough 1 Hard
Machining Data

ap f
IS80
IS8


IS6
Designation l di S r (mm) (mm/rev)
CNGX 120712T 12.90 12.70 7.94 1.20 • • • 1.00-3.00 0.07-0.43
CNGX 120716T 12.90 12.70 7.94 1.60 • • • 1.00-3.00 0.07-0.43
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: TCBNR/L-CH (73) • TCKNR/L-CH (73) • TCLNR/L-CH (73)


45°
90° 45°
75°
SNGN-Ceramic
Square Double-Sided Ceramic Inserts
with a Flat Rake for Machining Cast di 45° 75°
Iron, Hardened Steel and Super Alloys
r S

Recommended
Dimensions Tough 1 Hard
Machining Data
IN420
IN110


ap f
IN23
IN22
IS80
IW7
IS9
IS8


IS6


Designation di S r (mm) (mm/rev)
SNGN 120404T 12.70 4.76 0.40 • 0.10-3.50 0.10-0.50
SNGN 120408T 12.70 4.76 0.80 • • • • • 0.10-3.50 0.10-0.50
SNGN 120412T 12.70 4.76 1.20 • • • • • • • • 0.10-5.00 0.10-0.50
SNGN 120416E 12.70 4.76 1.60 • 0.10-5.00 0.10-0.50
SNGN 120416T 12.70 4.76 1.60 • • • • • 0.10-5.00 0.10-0.50
SNGN 120708T 12.70 7.94 0.80 • • • 0.10-5.00 0.10-0.50
SNGN 120712T 12.70 7.94 1.20 • • • • • 0.10-5.00 0.10-0.50
SNGN 120716T 12.70 7.94 1.60 • • • • • • 0.10-5.00 0.10-0.50
SNGN 150712T 15.88 6.35 1.20 • 0.10-5.00 0.10-0.50
SNGN 150716T 15.88 6.35 1.60 • • 0.10-5.00 0.10-0.50
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: CSDNN-CE/CEA (74) • CSKNR/L (75) • CSRNR/L (74) • CSSNR/L-CE (75)


179
