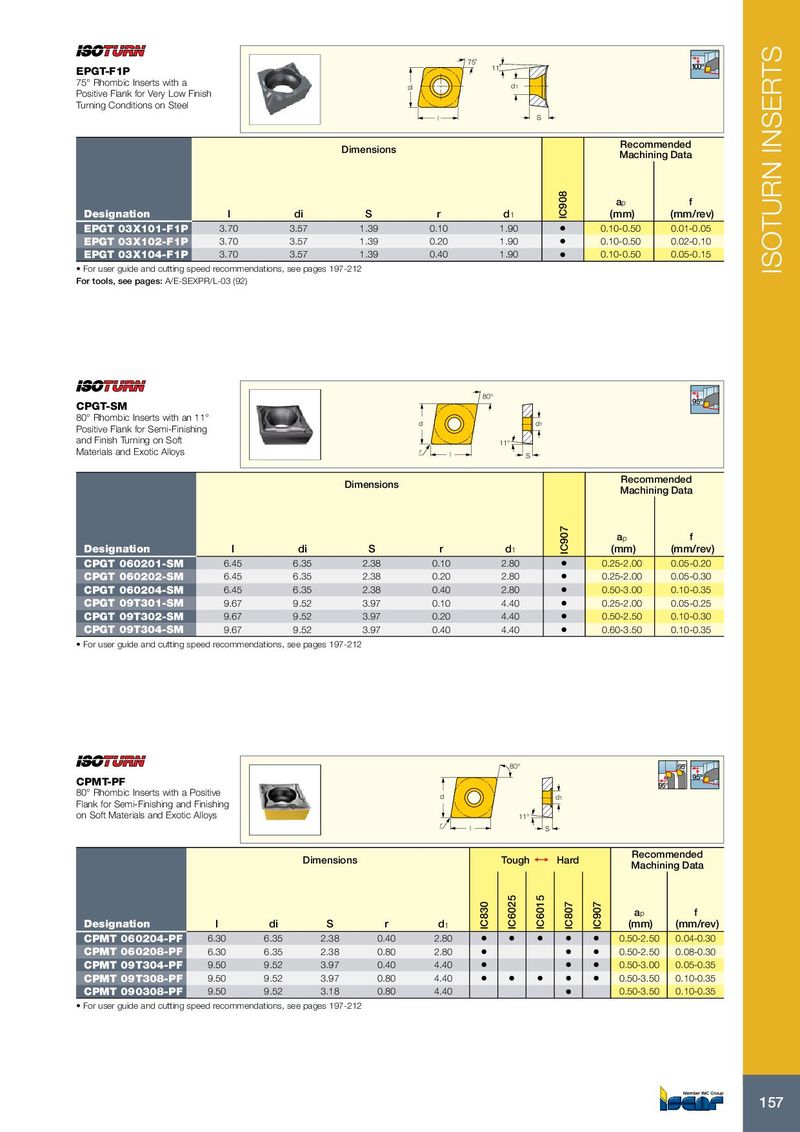

ISOTURN INSERTS
75˚
11˚ 100º
EPGT-F1P
75° Rhombic Inserts with a di d1
Positive Flank for Very Low Finish
Turning Conditions on Steel
l S

Recommended
Dimensions
Machining Data


IC908
ap f
Designation l di S r d1 (mm) (mm/rev)
EPGT 03X101-F1P 3.70 3.57 1.39 0.10 1.90 • 0.10-0.50 0.01-0.05
EPGT 03X102-F1P 3.70 3.57 1.39 0.20 1.90 • 0.10-0.50 0.02-0.10
EPGT 03X104-F1P 3.70 3.57 1.39 0.40 1.90 • 0.10-0.50 0.05-0.15
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E-SEXPR/L-03 (92)


80°
95º
CPGT-SM
80° Rhombic Inserts with an 11°
d d1
Positive Flank for Semi-Finishing
and Finish Turning on Soft 11°
Materials and Exotic Alloys r
l S

Recommended
Dimensions
Machining Data


IC907
ap f
Designation l di S r d1 (mm) (mm/rev)
CPGT 060201-SM 6.45 6.35 2.38 0.10 2.80 • 0.25-2.00 0.05-0.20
CPGT 060202-SM 6.45 6.35 2.38 0.20 2.80 • 0.25-2.00 0.05-0.30
CPGT 060204-SM 6.45 6.35 2.38 0.40 2.80 • 0.50-3.00 0.10-0.35
CPGT 09T301-SM 9.67 9.52 3.97 0.10 4.40 • 0.25-2.00 0.05-0.25
CPGT 09T302-SM 9.67 9.52 3.97 0.20 4.40 • 0.50-2.50 0.10-0.30
CPGT 09T304-SM 9.67 9.52 3.97 0.40 4.40 • 0.60-3.50 0.10-0.35
• For user guide and cutting speed recommendations, see pages 197-212


80° 95°
95º
CPMT-PF 95°
80° Rhombic Inserts with a Positive d d1
Flank for Semi-Finishing and Finishing
on Soft Materials and Exotic Alloys 11°
r l S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC830


IC807
IC907


ap f
Designation l di S r d1 (mm) (mm/rev)
CPMT 060204-PF 6.30 6.35 2.38 0.40 2.80 • • • • • 0.50-2.50 0.04-0.30
CPMT 060208-PF 6.30 6.35 2.38 0.80 2.80 • • • 0.50-2.50 0.08-0.30
CPMT 09T304-PF 9.50 9.52 3.97 0.40 4.40 • • • 0.50-3.00 0.05-0.35
CPMT 09T308-PF 9.50 9.52 3.97 0.80 4.40 • • • • • 0.50-3.50 0.10-0.35
CPMT 090308-PF 9.50 9.52 3.18 0.80 4.40 • 0.50-3.50 0.10-0.35
• For user guide and cutting speed recommendations, see pages 197-212


157
