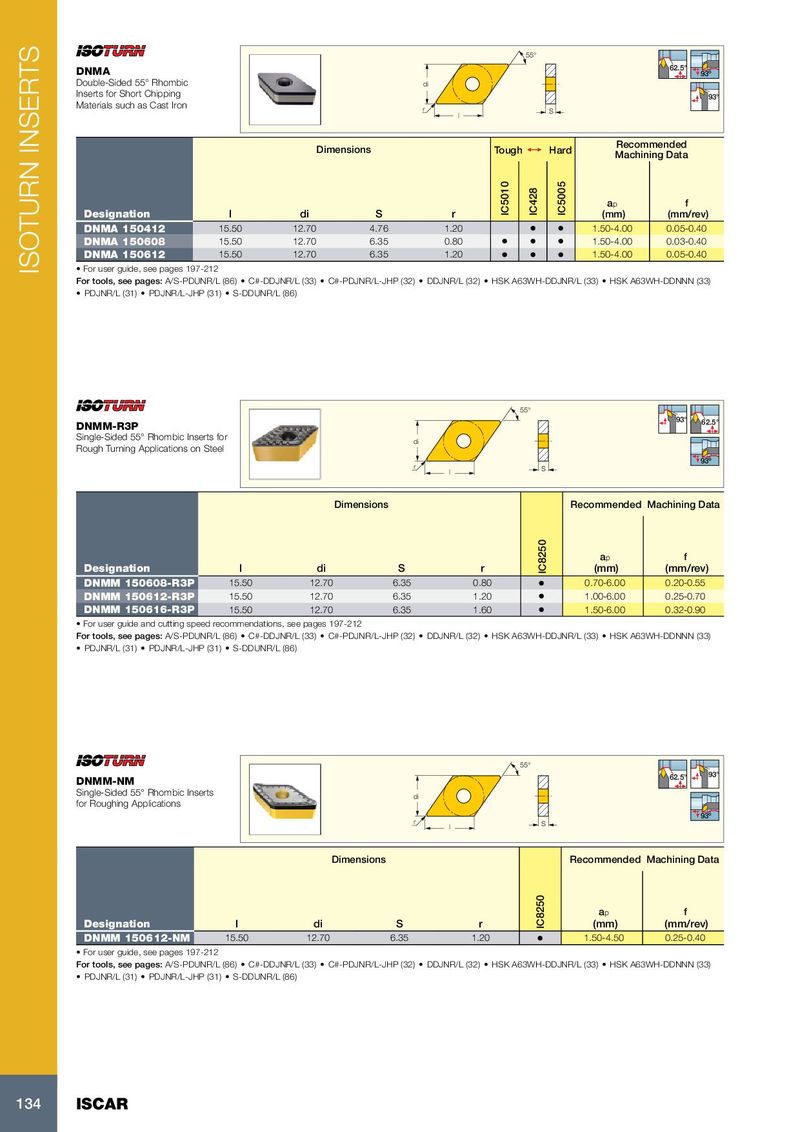

55° 62.5° DNMA 93º Double-Sided 55° Rhombic di Inserts for Short Chipping 93° Materials such as Cast Iron r S l Recommended Dimensions Tough 1  Hard Machining Data a p f Designation l di S r IC5010 IC428 IC5005 (mm) (mm/rev) DNMA 150412 15.50 12.70 4.76 1.20 • • 1.50-4.00 0.05-0.40 DNMA 150608 15.50 12.70 6.35 0.80 • • • 1.50-4.00 0.03-0.40 DNMA 150612 15.50 12.70 6.35 1.20 • • • 1.50-4.00 0.05-0.40 ISOTURN INSERTS • For user guide, see pages 197-212 For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33) • HSK A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86) 55° 93° 62.5° DNMM-R3P Single-Sided 55° Rhombic Inserts for di Rough Turning Applications on Steel 93º r l S Dimensions Recommended Machining Data a p f Designation l di S r IC8250 (mm) (mm/rev) DNMM 150608-R3P 15.50 12.70 6.35 0.80 • 0.70-6.00 0.20-0.55 DNMM 150612-R3P 15.50 12.70 6.35 1.20 • 1.00-6.00 0.25-0.70 DNMM 150616-R3P 15.50 12.70 6.35 1.60 • 1.50-6.00 0.32-0.90 • For user guide and cutting speed recommendations, see pages 197-212 For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33) • HSK A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86) 55° 62.5° 93° DNMM-NM Single-Sided 55° Rhombic Inserts di for Roughing Applications 93º r l S Dimensions Recommended Machining Data a p f Designation l di S r IC8250 (mm) (mm/rev) DNMM 150612-NM 15.50 12.70 6.35 1.20 • 1.50-4.50 0.25-0.40 • For user guide, see pages 197-212 For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33) • HSK A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86) 134 ISCAR
