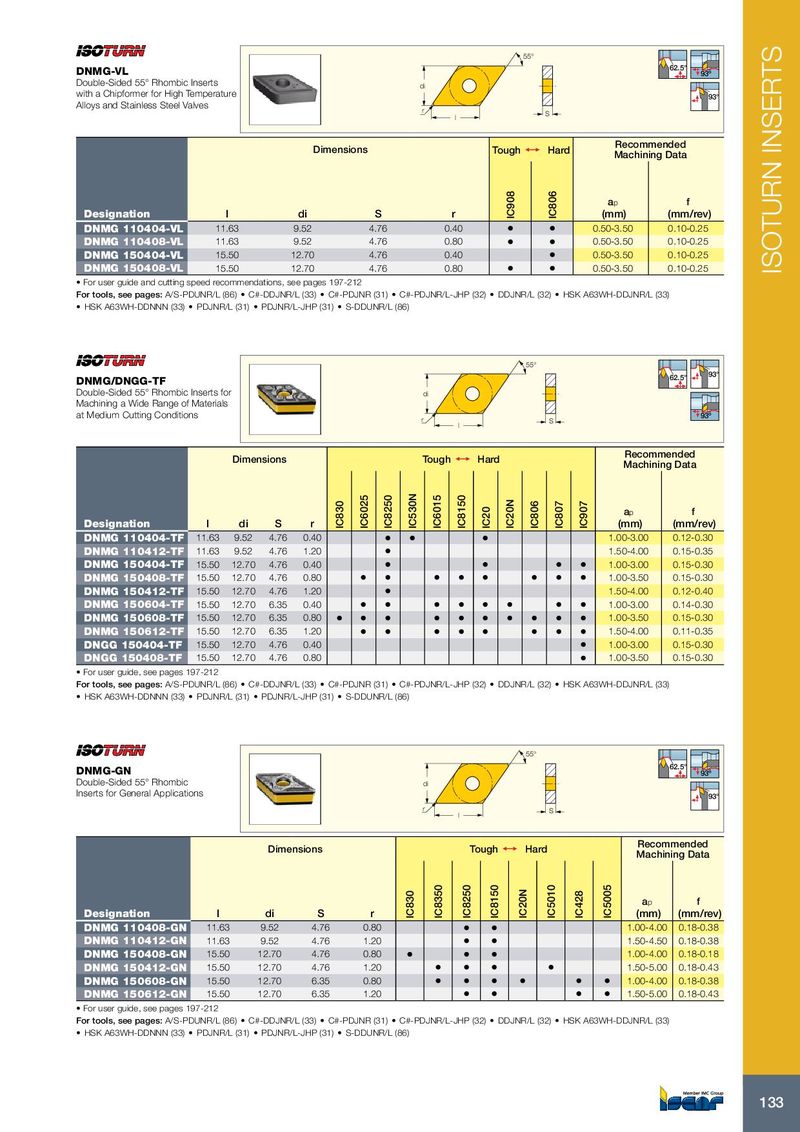

Каталог Iscar токарный инструмент 2017 - страница 137

ISOTURN INSERTS
55°
62.5°
DNMG-VL 93º
Double-Sided 55° Rhombic Inserts di
with a Chipformer for High Temperature 93°
Alloys and Stainless Steel Valves r S
l

Recommended
Dimensions Tough 1 Hard
Machining Data


IC908

IC806
ap f
Designation l di S r (mm) (mm/rev)
DNMG 110404-VL 11.63 9.52 4.76 0.40 • • 0.50-3.50 0.10-0.25
DNMG 110408-VL 11.63 9.52 4.76 0.80 • • 0.50-3.50 0.10-0.25
DNMG 150404-VL 15.50 12.70 4.76 0.40 • 0.50-3.50 0.10-0.25
DNMG 150408-VL 15.50 12.70 4.76 0.80 • • 0.50-3.50 0.10-0.25
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR (31) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33)
• HSK A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86)


55°
62.5° 93°
DNMG/DNGG-TF
Double-Sided 55° Rhombic Inserts for di
Machining a Wide Range of Materials
at Medium Cutting Conditions r 93º
S
l

Recommended
Dimensions Tough 1 Hard
Machining Data
IC530N
IC6025
IC8250

IC6015
IC8150

IC20N
IC830


IC806
IC807
IC907
ap f
IC20

Designation l di S r (mm) (mm/rev)
DNMG 110404-TF 11.63 9.52 4.76 0.40 • • • 1.00-3.00 0.12-0.30
DNMG 110412-TF 11.63 9.52 4.76 1.20 • 1.50-4.00 0.15-0.35
DNMG 150404-TF 15.50 12.70 4.76 0.40 • • • • 1.00-3.00 0.15-0.30
DNMG 150408-TF 15.50 12.70 4.76 0.80 • • • • • • • • 1.00-3.50 0.15-0.30
DNMG 150412-TF 15.50 12.70 4.76 1.20 • 1.50-4.00 0.12-0.40
DNMG 150604-TF 15.50 12.70 6.35 0.40 • • • • • • • • 1.00-3.00 0.14-0.30
DNMG 150608-TF 15.50 12.70 6.35 0.80 • • • • • • • • • • 1.00-3.50 0.15-0.30
DNMG 150612-TF 15.50 12.70 6.35 1.20 • • • • • • • • 1.50-4.00 0.11-0.35
DNGG 150404-TF 15.50 12.70 4.76 0.40 • 1.00-3.00 0.15-0.30
DNGG 150408-TF 15.50 12.70 4.76 0.80 • 1.00-3.50 0.15-0.30
• For user guide, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR (31) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33)
• HSK A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86)


55°
62.5°
DNMG-GN 93º
Double-Sided 55° Rhombic di
Inserts for General Applications 93°
r S
l

Recommended
Dimensions Tough 1 Hard
Machining Data
IC8350
IC8250
IC8150


IC5010


IC5005
IC20N
IC830


IC428


ap f
Designation l di S r (mm) (mm/rev)
DNMG 110408-GN 11.63 9.52 4.76 0.80 • • 1.00-4.00 0.18-0.38
DNMG 110412-GN 11.63 9.52 4.76 1.20 • • 1.50-4.50 0.18-0.38
DNMG 150408-GN 15.50 12.70 4.76 0.80 • • • 1.00-4.00 0.18-0.18
DNMG 150412-GN 15.50 12.70 4.76 1.20 • • • • 1.50-5.00 0.18-0.43
DNMG 150608-GN 15.50 12.70 6.35 0.80 • • • • • • 1.00-4.00 0.18-0.38
DNMG 150612-GN 15.50 12.70 6.35 1.20 • • • • 1.50-5.00 0.18-0.43
• For user guide, see pages 197-212
For tools, see pages: A/S-PDUNR/L (86) • C#-DDJNR/L (33) • C#-PDJNR (31) • C#-PDJNR/L-JHP (32) • DDJNR/L (32) • HSK A63WH-DDJNR/L (33)
• HSK A63WH-DDNNN (33) • PDJNR/L (31) • PDJNR/L-JHP (31) • S-DDUNR/L (86)
