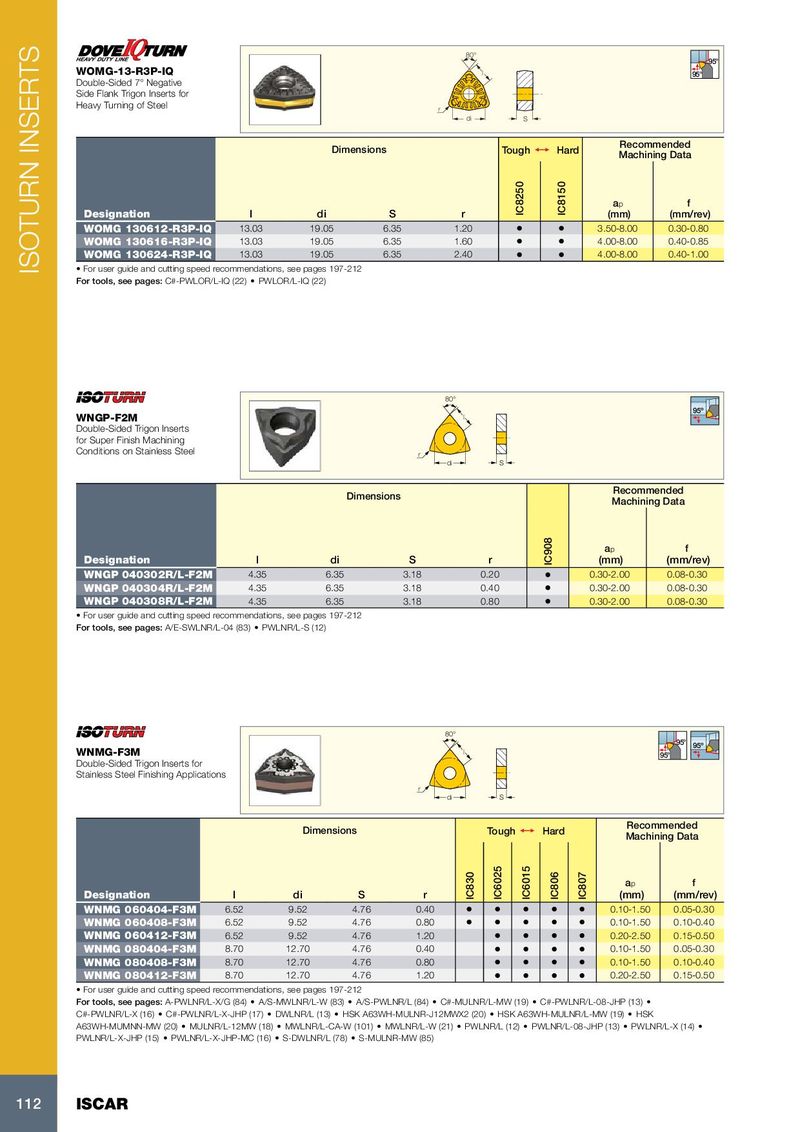

ISOTURN INSERTS
80°
95°
WOMG-13-R3P-IQ l 95°
Double-Sided 7° Negative
Side Flank Trigon Inserts for
Heavy Turning of Steel r
di S

Recommended
Dimensions Tough 1 Hard
Machining Data


IC8250

IC8150
ap f
Designation l di S r (mm) (mm/rev)
WOMG 130612-R3P-IQ 13.03 19.05 6.35 1.20 • • 3.50-8.00 0.30-0.80
WOMG 130616-R3P-IQ 13.03 19.05 6.35 1.60 • • 4.00-8.00 0.40-0.85
WOMG 130624-R3P-IQ 13.03 19.05 6.35 2.40 • • 4.00-8.00 0.40-1.00
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: C#-PWLOR/L-IQ (22) • PWLOR/L-IQ (22)


80°
95º
WNGP-F2M l
Double-Sided Trigon Inserts
for Super Finish Machining
Conditions on Stainless Steel r
di S

Recommended
Dimensions
Machining Data

IC908 ap f
Designation l di S r (mm) (mm/rev)
WNGP 040302R/L-F2M 4.35 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30
WNGP 040304R/L-F2M 4.35 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30
WNGP 040308R/L-F2M 4.35 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A/E-SWLNR/L-04 (83) • PWLNR/L-S (12)


80°
95° 95º
WNMG-F3M l 95°
Double-Sided Trigon Inserts for
Stainless Steel Finishing Applications
r
di S

Recommended
Dimensions Tough 1 Hard
Machining Data
IC6025
IC6015
IC830


IC806
IC807


ap f
Designation l di S r (mm) (mm/rev)
WNMG 060404-F3M 6.52 9.52 4.76 0.40 • • • • • 0.10-1.50 0.05-0.30
WNMG 060408-F3M 6.52 9.52 4.76 0.80 • • • • • 0.10-1.50 0.10-0.40
WNMG 060412-F3M 6.52 9.52 4.76 1.20 • • • • 0.20-2.50 0.15-0.50
WNMG 080404-F3M 8.70 12.70 4.76 0.40 • • • • 0.10-1.50 0.05-0.30
WNMG 080408-F3M 8.70 12.70 4.76 0.80 • • • • 0.10-1.50 0.10-0.40
WNMG 080412-F3M 8.70 12.70 4.76 1.20 • • • • 0.20-2.50 0.15-0.50
• For user guide and cutting speed recommendations, see pages 197-212
For tools, see pages: A-PWLNR/L-X/G (84) • A/S-MWLNR/L-W (83) • A/S-PWLNR/L (84) • C#-MULNR/L-MW (19) • C#-PWLNR/L-08-JHP (13) •
C#-PWLNR/L-X (16) • C#-PWLNR/L-X-JHP (17) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (20) • HSK A63WH-MULNR/L-MW (19) • HSK
A63WH-MUMNN-MW (20) • MULNR/L-12MW (18) • MWLNR/L-CA-W (101) • MWLNR/L-W (21) • PWLNR/L (12) • PWLNR/L-08-JHP (13) • PWLNR/L-X (14) •
PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (78) • S-MULNR-MW (85)


112 ISCAR
