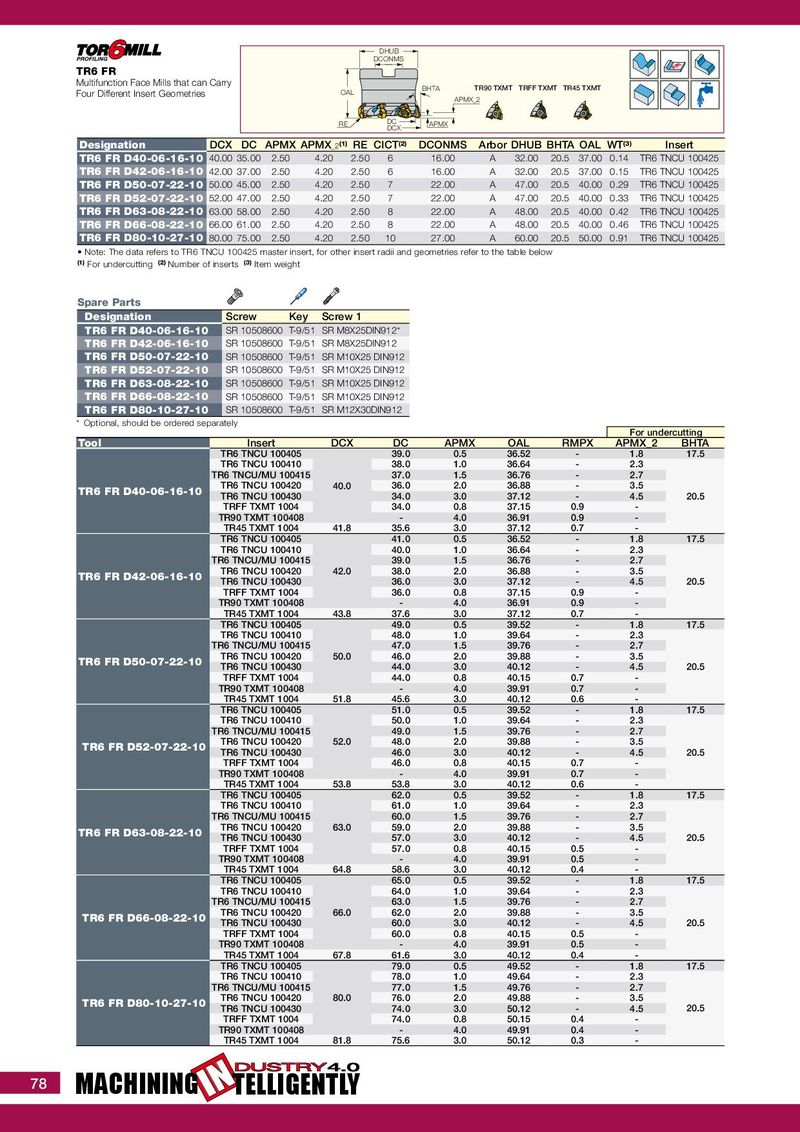

Каталог Iscar новые продукты 2018 - страница 78
Навигация
Каталог Iscar токарные державки ISO 2022
Каталог Iscar сверла ружейные и для глубокого сверления 2022
Каталог Iscar монолитные концевые фрезы и система multi-master
Фрезерные инструменты Iscar 2026
Каталог Iscar концевые фрезы со сменными пластинами 2022
Каталог Iscar инструмент для обработки отверстий
| TR6 FR | DHUB DCONMS | |||||||||||
| Multifunction Face Mills that can Four Different Insert Geometries | Carry | R | OAL E | DCX DC | APMX APMX BHTA | TR90 TXM 2 | T TRFF TX | MT TR | 45 TXMT | |||
| Designation | DCX DC | APMX | APMX2( | 1) RE | CICT(2) | DCONMS | Arbor | DHUB | BHTA | OAL | WT(3) | Insert |
| TR6 FR D40-06-16-10 | 40.00 35.00 | 2.50 | 4.20 | 2.50 | 6 | 16.00 | A | 32.00 | 20.5 | 37.00 | 0.14 | TR6 TNCU 100425 |
| TR6 FR D42-06-16-10 | 42.00 37.00 | 2.50 | 4.20 | 2.50 | 6 | 16.00 | A | 32.00 | 20.5 | 37.00 | 0.15 | TR6 TNCU 100425 |
| TR6 FR D50-07-22-10 | 50.00 45.00 | 2.50 | 4.20 | 2.50 | 7 | 22.00 | A | 47.00 | 20.5 | 40.00 | 0.29 | TR6 TNCU 100425 |
| TR6 FR D52-07-22-10 | 52.00 47.00 | 2.50 | 4.20 | 2.50 | 7 | 22.00 | A | 47.00 | 20.5 | 40.00 | 0.33 | TR6 TNCU 100425 |
| TR6 FR D63-08-22-10 | 63.00 58.00 | 2.50 | 4.20 | 2.50 | 8 | 22.00 | A | 48.00 | 20.5 | 40.00 | 0.42 | TR6 TNCU 100425 |
| TR6 FR D66-08-22-10 | 66.00 61.00 | 2.50 | 4.20 | 2.50 | 8 | 22.00 | A | 48.00 | 20.5 | 40.00 | 0.46 | TR6 TNCU 100425 |
| TR6 FR D80-10-27-10 | 80.00 75.00 | 2.50 | 4.20 | 2.50 | 10 | 27.00 | A | 60.00 | 20.5 | 50.00 | 0.91 | TR6 TNCU 100425 |
- Note: The data refers to TR6 TNCU 100425 master insert, for other insert radii and geometries refer to the table below
(1) For undercutting (2) Number of inserts (3) Item weight
Spare Parts
| Designation | Screw | Key | Screw 1 |
| TR6 FR D40-06-16-10 | SR 10508600 | T-9/51 | SR M8X25DIN912 |
| TR6 FR D42-06-16-10 | SR 10508600 | T-9/51 | SR M8X25DIN912 |
| TR6 FR D50-07-22-10 | SR 10508600 | T-9/51 | SR M10X25 DIN912 |
| TR6 FR D52-07-22-10 | SR 10508600 | T-9/51 | SR M10X25 DIN912 |
| TR6 FR D63-08-22-10 | SR 10508600 | T-9/51 | SR M10X25 DIN912 |
| TR6 FR D66-08-22-10 | SR 10508600 | T-9/51 | SR M10X25 DIN912 |
| TR6 FR D80-10-27-10 | SR 10508600 | T-9/51 | SR M12X30DIN912 |
* Optional, should be ordered separately
| Tool | Insert | DCX | DC | APMX | OAL | RMPX | For und APMX2 | ercutting BHTA |
| TR6 TNCU 100405 | 39.0 | 0.5 | 36.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 38.0 | 1.0 | 36.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 37.0 | 1.5 | 36.76 | - | 2.7 | |||
| TR6 FR D40-06-16-10 | TR6 TNCU 100420 | 40.0 | 36.0 | 2.0 | 36.88 | - | 3.5 | |
| TR6 TNCU 100430 | 34.0 | 3.0 | 37.12 | - | 4.5 | 20.5 | ||
| TRFF TXMT 1004 | 34.0 | 0.8 | 37.15 | 0.9 | - | |||
| TR90 TXMT 100408 | - | 4.0 | 36.91 | 0.9 | - | |||
| TR45 TXMT 1004 | 41.8 | 35.6 | 3.0 | 37.12 | 0.7 | - | ||
| TR6 TNCU 100405 | 41.0 | 0.5 | 36.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 40.0 | 1.0 | 36.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 39.0 | 1.5 | 36.76 | - | 2.7 | |||
| TR6 TNCU 100420 | 42.0 | 38.0 | 2.0 | 36.88 | - | 3.5 | ||
| TR6 FR D42-06-16-10 | TR6 TNCU 100430 | 36.0 | 3.0 | 37.12 | - | 4.5 | 20.5 | |
| TRFF TXMT 1004 | 36.0 | 0.8 | 37.15 | 0.9 | - | |||
| TR90 TXMT 100408 | - | 4.0 | 36.91 | 0.9 | - | |||
| TR45 TXMT 1004 | 43.8 | 37.6 | 3.0 | 37.12 | 0.7 | - | ||
| TR6 TNCU 100405 | 49.0 | 0.5 | 39.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 48.0 | 1.0 | 39.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 47.0 | 1.5 | 39.76 | - | 2.7 | |||
| TR6 FR D50-07-22-10 | TR6 TNCU 100420 | 50.0 | 46.0 | 2.0 | 39.88 | - | 3.5 | |
| TR6 TNCU 100430 | 44.0 | 3.0 | 40.12 | - | 4.5 | 20.5 | ||
| TRFF TXMT 1004 | 44.0 | 0.8 | 40.15 | 0.7 | - | |||
| TR90 TXMT 100408 | - | 4.0 | 39.91 | 0.7 | - | |||
| TR45 TXMT 1004 | 51.8 | 45.6 | 3.0 | 40.12 | 0.6 | - | ||
| TR6 TNCU 100405 | 51.0 | 0.5 | 39.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 50.0 | 1.0 | 39.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 49.0 | 1.5 | 39.76 | - | 2.7 | |||
| TR6 FR D52072210 | TR6 TNCU 100420 | 52.0 | 48.0 | 2.0 | 39.88 | - | 3.5 | |
| --- | TR6 TNCU 100430 | 46.0 | 3.0 | 40.12 | - | 4.5 | 20.5 | |
| TRFF TXMT 1004 | 46.0 | 0.8 | 40.15 | 0.7 | - | |||
| TR90 TXMT 100408 | - | 4.0 | 39.91 | 0.7 | - | |||
| TR45 TXMT 1004 | 53.8 | 53.8 | 3.0 | 40.12 | 0.6 | - | ||
| TR6 TNCU 100405 | 62.0 | 0.5 | 39.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 61.0 | 1.0 | 39.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 60.0 | 1.5 | 39.76 | - | 2.7 | |||
| TR6 TNCU 100420 | 63.0 | 59.0 | 2.0 | 39.88 | - | 3.5 | ||
| TR6 FR D63-08-22-10 | TR6 TNCU 100430 | 57.0 | 3.0 | 40.12 | - | 4.5 | 20.5 | |
| TRFF TXMT 1004 | 57.0 | 0.8 | 40.15 | 0.5 | - | |||
| TR90 TXMT 100408 | - | 4.0 | 39.91 | 0.5 | - | |||
| TR45 TXMT 1004 | 64.8 | 58.6 | 3.0 | 40.12 | 0.4 | - | ||
| TR6 TNCU 100405 | 65.0 | 0.5 | 39.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 64.0 | 1.0 | 39.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 63.0 | 1.5 | 39.76 | - | 2.7 | |||
| TR6 TNCU 100420 | 66.0 | 62.0 | 2.0 | 39.88 | - | 3.5 | ||
| TR6 FR D66-08-22-10 | TR6 TNCU 100430 | 60.0 | 3.0 | 40.12 | - | 4.5 | 20.5 | |
| TRFF TXMT 1004 | 60.0 | 0.8 | 40.15 | 0.5 | - | |||
| TR90 TXMT 100408 | - | 4.0 | 39.91 | 0.5 | - | |||
| TR45 TXMT 1004 | 67.8 | 61.6 | 3.0 | 40.12 | 0.4 | - | ||
| TR6 TNCU 100405 | 79.0 | 0.5 | 49.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 78.0 | 1.0 | 49.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 77.0 | 1.5 | 49.76 | - | 2.7 | |||
| TR FR D2 | TR6 TNCU 100420 | 80.0 | 76.0 | 2.0 | 49.88 | - | 3.5 | |
| 6 80-10-7-10 | TR6 TNCU 100430 | 74.0 | 3.0 | 50.12 | - | 4.5 | 20.5 | |
| TRFF TXMT 1004 | 74.0 | 0.8 | 50.15 | 0.4 | - | |||
| TR90 TXMT 100408 TR45 TXMT 1004 | 81.8 | - 75.6 | 4.0 3.0 | 49.91 50.12 | 0.4 0.3 | - - |
