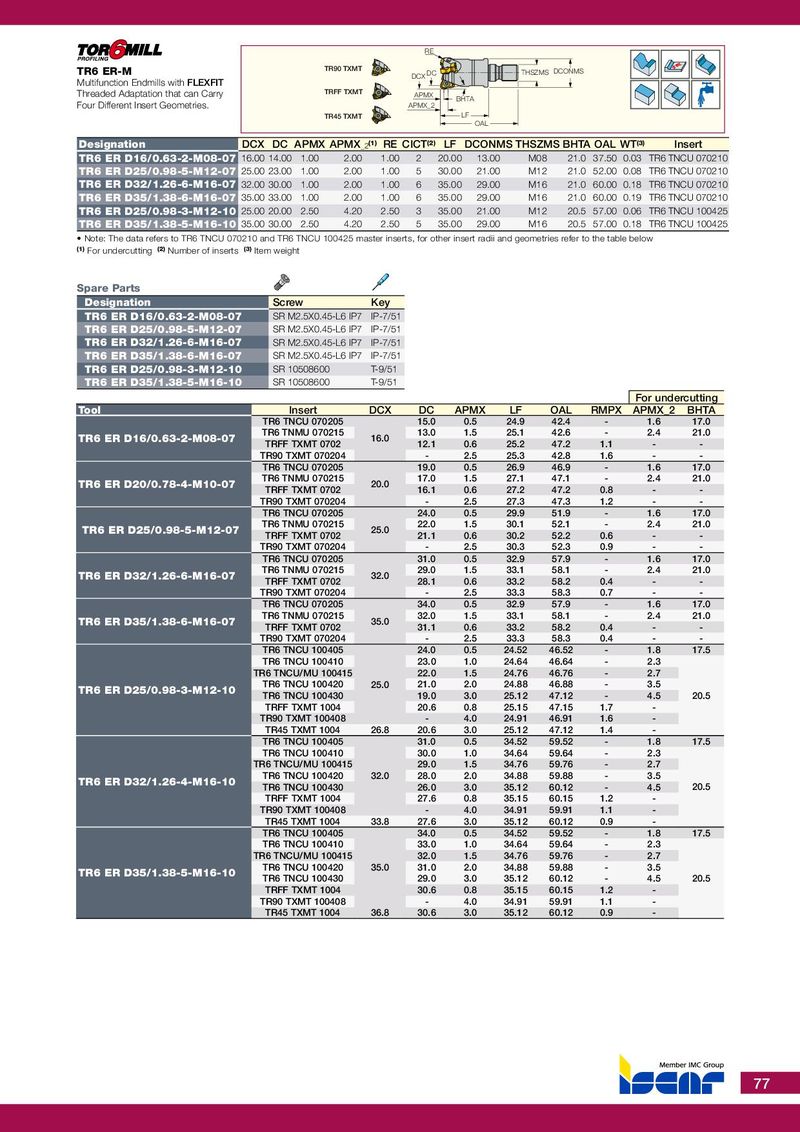

| TR6 ER-M | TR90 TXMT | RE DCX DC | D THSZMS | CONMS | |||||||
| Multifunction Endmills withFLEXFIT Threaded Adaptation that can Carry Four Different Insert Geometries. | TRFF TXMT TR45 TXMT | APMX2 APMX | LF BHT | OAL A | |||||||
| Designation | DCX DC | APMX | APMX2 | (1) RE | CICT(2) | LF D | CONMS | THSZMS | BHTA | OAL WT(3) | Insert |
| TR6 ER D16/0.63-2-M08-07 | 16.00 14.00 | 1.00 | 2.00 | 1.00 | 2 | 20.00 | 13.00 | M08 | 21.0 | 37.50 0.03 T | R6 TNCU 070210 |
| TR6 ER D25/0.98-5-M12-07 | 25.00 23.00 | 1.00 | 2.00 | 1.00 | 5 | 30.00 | 21.00 | M12 | 21.0 | 52.00 0.08 T | R6 TNCU 070210 |
| TR6 ER D32/1.26-6-M16-07 | 32.00 30.00 | 1.00 | 2.00 | 1.00 | 6 | 35.00 | 29.00 | M16 | 21.0 | 60.00 0.18 T | R6 TNCU 070210 |
| TR6 ER D35/1.38-6-M16-07 | 35.00 33.00 | 1.00 | 2.00 | 1.00 | 6 | 35.00 | 29.00 | M16 | 21.0 | 60.00 0.19 T | R6 TNCU 070210 |
| TR6 ER D25/0.98-3-M12-10 | 25.00 20.00 | 2.50 | 4.20 | 2.50 | 3 | 35.00 | 21.00 | M12 | 20.5 | 57.00 0.06 T | R6 TNCU 100425 |
| TR6 ER D35/1.38-5-M16-10 | 35.00 30.00 | 2.50 | 4.20 | 2.50 | 5 | 35.00 | 29.00 | M16 | 20.5 | 57.00 0.18 T | R6 TNCU 100425 |
- Note: The data refers to TR6 TNCU 070210 and TR6 TNCU 100425 master inserts, for other insert radii and geometries refer to the table below
(1) For undercutting (2) Number of inserts (3) Item weight
| Spare Parts | |||||||||
| Designation | Screw | Key | |||||||
| TR6 ER D16/0.63-2-M08-07 | SR M2.5X0.45-L6 IP7 | IP-7/51 | |||||||
| TR6 ER D25/0.98-5-M12-07 | SR M2.5X0.45-L6 IP7 | IP-7/51 | |||||||
| TR6 ER D32/1.26-6-M16-07 | SR M2.5X0.45-L6 IP7 | IP-7/51 | |||||||
| TR6 ER D35/1.38-6-M16-07 | SR M2.5X0.45-L6 IP7 | IP-7/51 | |||||||
| TR6 ER D25/0.98-3-M12-10 | SR 10508600 | T-9/51 | |||||||
| TR6 ER D35/1.38-5-M16-10 | SR 10508600 | T-9/51 | |||||||
| Forund | ercutting | ||||||||
| Tool | Insert | DCX | DC | APMX | LF | OAL | RMPX | APMX2 | BHTA |
| TR6 TNCU 070205 | 15.0 | 0.5 | 24.9 | 42.4 | - | 1.6 | 17.0 | ||
| TR6 ER D16/0632M0807 | TR6 TNMU 070215 | 160 | 13.0 | 1.5 | 25.1 | 42.6 | - | 2.4 | 21.0 |
| .--- | TRFF TXMT 0702 | . | 12.1 | 0.6 | 25.2 | 47.2 | 1.1 | - | - |
| TR90 TXMT 070204 | - | 2.5 | 25.3 | 42.8 | 1.6 | - | - | ||
| TR6 TNCU 070205 | 19.0 | 0.5 | 26.9 | 46.9 | - | 1.6 | 17.0 | ||
| TR6 ER D20/0784M1007 | TR6 TNMU 070215 | 200 | 17.0 | 1.5 | 27.1 | 47.1 | - | 2.4 | 21.0 |
| .--- | TRFF TXMT 0702 | . | 16.1 | 0.6 | 27.2 | 47.2 | 0.8 | - | - |
| TR90 TXMT 070204 | - | 2.5 | 27.3 | 47.3 | 1.2 | - | - | ||
| TR6 TNCU 070205 | 24.0 | 0.5 | 29.9 | 51.9 | - | 1.6 | 17.0 | ||
| TR6 ER D25/0985M1207 | TR6 TNMU 070215 | 250 | 22.0 | 1.5 | 30.1 | 52.1 | - | 2.4 | 21.0 |
| .--- | TRFF TXMT 0702 | . | 21.1 | 0.6 | 30.2 | 52.2 | 0.6 | - | - |
| TR90 TXMT 070204 | - | 2.5 | 30.3 | 52.3 | 0.9 | - | - | ||
| TR6 TNCU 070205 | 31.0 | 0.5 | 32.9 | 57.9 | - | 1.6 | 17.0 | ||
| TR6 ER D32/126-6-M16-07 | TR6 TNMU 070215 | 320 | 29.0 | 1.5 | 33.1 | 58.1 | - | 2.4 | 21.0 |
| . | TRFF TXMT 0702 | . | 28.1 | 0.6 | 33.2 | 58.2 | 0.4 | - | - |
| TR90 TXMT 070204 | - | 2.5 | 33.3 | 58.3 | 0.7 | - | - | ||
| TR6 TNCU 070205 | 34.0 | 0.5 | 32.9 | 57.9 | - | 1.6 | 17.0 | ||
| TR6 ER D3/1386M1607 | TR6 TNMU 070215 | 30 | 32.0 | 1.5 | 33.1 | 58.1 | - | 2.4 | 21.0 |
| 5.--- | TRFF TXMT 0702 | 5. | 31.1 | 0.6 | 33.2 | 58.2 | 0.4 | - | - |
| TR90 TXMT 070204 | - | 2.5 | 33.3 | 58.3 | 0.4 | - | - | ||
| TR6 TNCU 100405 | 24.0 | 0.5 | 24.52 | 46.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 23.0 | 1.0 | 24.64 | 46.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 22.0 | 1.5 | 24.76 | 46.76 | - | 2.7 | |||
| TR6 TNCU 100420 | 25.0 | 21.0 | 2.0 | 24.88 | 46.88 | - | 3.5 | ||
| TR6 ER D25/0.98-3-M12-10 | TR6 TNCU 100430 | 19.0 | 3.0 | 25.12 | 47.12 | - | 4.5 | 20.5 | |
| TRFF TXMT 1004 | 20.6 | 0.8 | 25.15 | 47.15 | 1.7 | - | |||
| TR90 TXMT 100408 | - | 4.0 | 24.91 | 46.91 | 1.6 | - | |||
| TR45 TXMT 1004 | 26.8 | 20.6 | 3.0 | 25.12 | 47.12 | 1.4 | - | ||
| TR6 TNCU 100405 | 31.0 | 0.5 | 34.52 | 59.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 30.0 | 1.0 | 34.64 | 59.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 29.0 | 1.5 | 34.76 | 59.76 | - | 2.7 | |||
| TR6 TNCU 100420 | 32.0 | 28.0 | 2.0 | 34.88 | 59.88 | - | 3.5 | ||
| TR6 ER D32/1.26-4-M16-10 | TR6 TNCU 100430 | 26.0 | 3.0 | 35.12 | 60.12 | - | 4.5 | 20.5 | |
| TRFF TXMT 1004 | 27.6 | 0.8 | 35.15 | 60.15 | 1.2 | - | |||
| TR90 TXMT 100408 | - | 4.0 | 34.91 | 59.91 | 1.1 | - | |||
| TR45 TXMT 1004 | 33.8 | 27.6 | 3.0 | 35.12 | 60.12 | 0.9 | - | ||
| TR6 TNCU 100405 | 34.0 | 0.5 | 34.52 | 59.52 | - | 1.8 | 17.5 | ||
| TR6 TNCU 100410 | 33.0 | 1.0 | 34.64 | 59.64 | - | 2.3 | |||
| TR6 TNCU/MU 100415 | 32.0 | 1.5 | 34.76 | 59.76 | - | 2.7 | |||
| TR6 TNCU 100420 | 35.0 | 31.0 | 2.0 | 34.88 | 59.88 | - | 3.5 | ||
| TR6 ER D35/1.38-5-M16-10 | TR6 TNCU 100430 | 29.0 | 3.0 | 35.12 | 60.12 | - | 4.5 | 20.5 | |
| TRFF TXMT 1004 | 30.6 | 0.8 | 35.15 | 60.15 | 1.2 | - | |||
| TR90 TXMT 100408 | - | 40 | 3491 | 5991 | 11 | - | |||
| TR45 TXMT 1004 | 36.8 | 30.6 | . 3.0 | . 35.12 | . 60.12 | . 0.9 | - |
