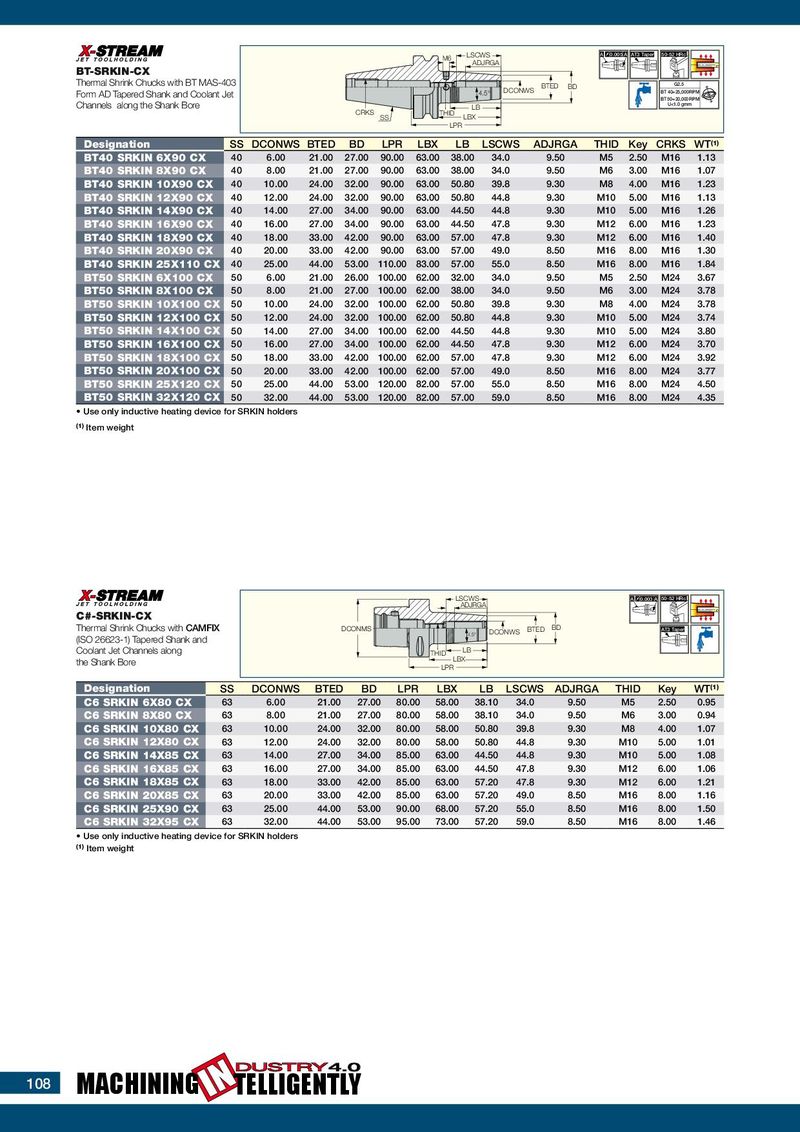

| BT-SRKIN-CX | A LSC M6 | DJRGA WS | 0.005 A | A AT3 Taper | 50-52 HRc | ||||||||
| Thermal Shrink Chucks with BT MAS-4 | 03 | DCONW | BD BTED S | G2.5 | |||||||||
| Form AD Tapered Shank and Coolant J | et | 4.5° | BT 40=25,00 BT 50=20,000 | RPM RPM | |||||||||
| Channels along the Shank Bore | CRKS | SS | T | LPR LBX LB HID | U | m | |||||||
| Designation | SS | DCONWS | BTED | BD | LPR | LBX | LB | LSCWS | ADJRGA | THID | Key | CRKS | WT(1) |
| BT40 SRKIN 6X90 CX | 40 | 6.00 | 21.00 | 27.00 | 90.00 | 63.00 | 38.00 | 34.0 | 9.50 | M5 | 2.50 | M16 | 1.13 |
| BT40 SRKIN 8X90 CX | 40 | 8.00 | 21.00 | 27.00 | 90.00 | 63.00 | 38.00 | 34.0 | 9.50 | M6 | 3.00 | M16 | 1.07 |
| BT40 SRKIN 10X90 CX | 40 | 10.00 | 24.00 | 32.00 | 90.00 | 63.00 | 50.80 | 39.8 | 9.30 | M8 | 4.00 | M16 | 1.23 |
| BT40 SRKIN 12X90 CX | 40 | 12.00 | 24.00 | 32.00 | 90.00 | 63.00 | 50.80 | 44.8 | 9.30 | M10 | 5.00 | M16 | 1.13 |
| BT40 SRKIN 14X90 CX | 40 | 14.00 | 27.00 | 34.00 | 90.00 | 63.00 | 44.50 | 44.8 | 9.30 | M10 | 5.00 | M16 | 1.26 |
| BT40 SRKIN 16X90 CX | 40 | 16.00 | 27.00 | 34.00 | 90.00 | 63.00 | 44.50 | 47.8 | 9.30 | M12 | 6.00 | M16 | 1.23 |
| BT40 SRKIN 18X90 CX | 40 | 18.00 | 33.00 | 42.00 | 90.00 | 63.00 | 57.00 | 47.8 | 9.30 | M12 | 6.00 | M16 | 1.40 |
| BT40 SRKIN 20X90 CX | 40 | 20.00 | 33.00 | 42.00 | 90.00 | 63.00 | 57.00 | 49.0 | 8.50 | M16 | 8.00 | M16 | 1.30 |
| BT40 SRKIN 25X110 CX | 40 | 25.00 | 44.00 | 53.00 | 110.00 | 83.00 | 57.00 | 55.0 | 8.50 | M16 | 8.00 | M16 | 1.84 |
| BT50 SRKIN 6X100 CX | 50 | 6.00 | 21.00 | 26.00 | 100.00 | 62.00 | 32.00 | 34.0 | 9.50 | M5 | 2.50 | M24 | 3.67 |
| BT50 SRKIN 8X100 CX | 50 | 8.00 | 21.00 | 27.00 | 100.00 | 62.00 | 38.00 | 34.0 | 9.50 | M6 | 3.00 | M24 | 3.78 |
| BT50 SRKIN 10X100 CX | 50 | 10.00 | 24.00 | 32.00 | 100.00 | 62.00 | 50.80 | 39.8 | 9.30 | M8 | 4.00 | M24 | 3.78 |
| BT50 SRKIN 12X100 CX | 50 | 12.00 | 24.00 | 32.00 | 100.00 | 62.00 | 50.80 | 44.8 | 9.30 | M10 | 5.00 | M24 | 3.74 |
| BT50 SRKIN 14X100 CX | 50 | 14.00 | 27.00 | 34.00 | 100.00 | 62.00 | 44.50 | 44.8 | 9.30 | M10 | 5.00 | M24 | 3.80 |
| BT50 SRKIN 16X100 CX | 50 | 16.00 | 27.00 | 34.00 | 100.00 | 62.00 | 44.50 | 47.8 | 9.30 | M12 | 6.00 | M24 | 3.70 |
| BT50 SRKIN 18X100 CX | 50 | 18.00 | 33.00 | 42.00 | 100.00 | 62.00 | 57.00 | 47.8 | 9.30 | M12 | 6.00 | M24 | 3.92 |
| BT50 SRKIN 20X100 CX | 50 | 20.00 | 33.00 | 42.00 | 100.00 | 62.00 | 57.00 | 49.0 | 8.50 | M16 | 8.00 | M24 | 3.77 |
| BT50 SRKIN 25X120 CX | 50 | 25.00 | 44.00 | 53.00 | 120.00 | 82.00 | 57.00 | 55.0 | 8.50 | M16 | 8.00 | M24 | 4.50 |
| BT50 SRKIN 32X120 CX | 50 | 32.00 | 44.00 | 53.00 | 120.00 | 82.00 | 57.00 | 59.0 | 8.50 | M16 | 8.00 | M24 | 4.35 |
- Use only inductive heating device for SRKIN holders
(1) Item weight
| C#-SRKIN-CX | A LS | DJRGA CWS | 0.0 A | A 03 50-52 HRc | ||||||||
| Thermal Shrink Chucks withCAMFI (ISO 26623-1) Tapered Shank and | X | DC | ONMS | DCO 4.5° | BTED NWS | BD | AT3 Taper | |||||
| Coolant Jet Channels along | L THID | B | ||||||||||
| the Shank Bore | LBX LPR | |||||||||||
| Designation | SS | DCONWS | BTED | BD | LPR | LBX | LB | LSCWS | ADJRGA | THID | Key | WT(1) |
| C6 SRKIN 6X80 CX | 63 | 6.00 | 21.00 | 27.00 | 80.00 | 58.00 | 38.10 | 34.0 | 9.50 | M5 | 2.50 | 0.95 |
| C6 SRKIN 8X80 CX | 63 | 8.00 | 21.00 | 27.00 | 80.00 | 58.00 | 38.10 | 34.0 | 9.50 | M6 | 3.00 | 0.94 |
| C6 SRKIN 10X80 CX | 63 | 10.00 | 24.00 | 32.00 | 80.00 | 58.00 | 50.80 | 39.8 | 9.30 | M8 | 4.00 | 1.07 |
| C6 SRKIN 12X80 CX | 63 | 12.00 | 24.00 | 32.00 | 80.00 | 58.00 | 50.80 | 44.8 | 9.30 | M10 | 5.00 | 1.01 |
| C6 SRKIN 14X85 CX | 63 | 14.00 | 27.00 | 34.00 | 85.00 | 63.00 | 44.50 | 44.8 | 9.30 | M10 | 5.00 | 1.08 |
| C6 SRKIN 16X85 CX | 63 | 16.00 | 27.00 | 34.00 | 85.00 | 63.00 | 44.50 | 47.8 | 9.30 | M12 | 6.00 | 1.06 |
| C6 SRKIN 18X85 CX | 63 | 18.00 | 33.00 | 42.00 | 85.00 | 63.00 | 57.20 | 47.8 | 9.30 | M12 | 6.00 | 1.21 |
| C6 SRKIN 20X85 CX | 63 | 20.00 | 33.00 | 42.00 | 85.00 | 63.00 | 57.20 | 49.0 | 8.50 | M16 | 8.00 | 1.16 |
| C6 SRKIN 25X90 CX | 63 | 25.00 | 44.00 | 53.00 | 90.00 | 68.00 | 57.20 | 55.0 | 8.50 | M16 | 8.00 | 1.50 |
| C6 SRKIN 32X95 CX | 63 | 32.00 | 44.00 | 53.00 | 95.00 | 73.00 | 57.20 | 59.0 | 8.50 | M16 | 8.00 | 1.46 |
- Use only inductive heating device for SRKIN holders
(1) Item weight
