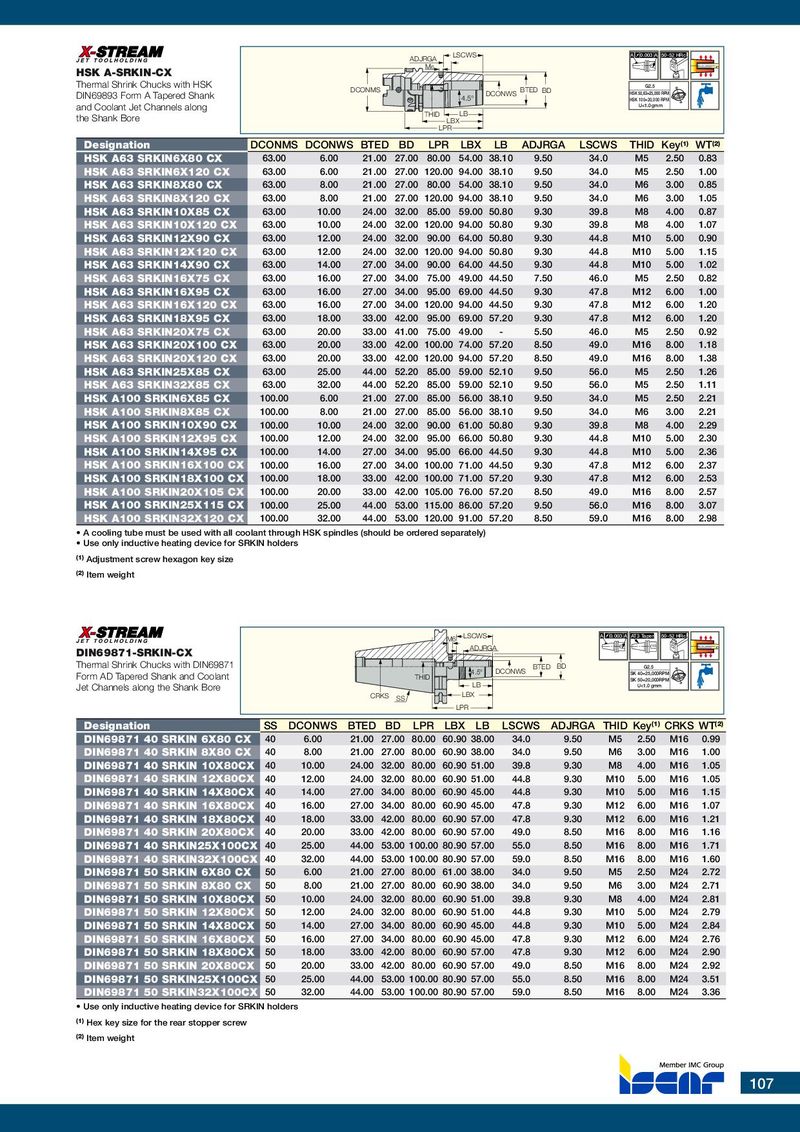

| HSK A-SRKIN-CX | ADJ | M6 RGA | LSCWS | A 0.003 A | 50-52 HRc | |||||||
| Thermal Shrink Chucks with HSK DIN69893 Form A Tapered Shank | D | CONMS | 4.5° | DCONWS | BD BTED | G2.5 HSK 50,63=25,00 HSK 100=20,00 | 0 RPM 0 RPM | |||||
| and Coolant Jet Channels along | LB | U | m | |||||||||
| the Shank Bore | LB THID LPR | X | ||||||||||
| Designation | DCONMS | DCONWS | BTED | BD | LPR | LBX | LB | ADJRGA | LSCWS | THID | Key(1) | WT(2) |
| HSK A63 SRKIN6X80 CX | 63.00 | 6.00 | 21.00 | 27.00 | 80.00 | 54.00 | 38.10 | 9.50 | 34.0 | M5 | 2.50 | 0.83 |
| HSK A63 SRKIN6X120 CX | 63.00 | 6.00 | 21.00 | 27.00 | 120.00 | 94.00 | 38.10 | 9.50 | 34.0 | M5 | 2.50 | 1.00 |
| HSK A63 SRKIN8X80 CX | 63.00 | 8.00 | 21.00 | 27.00 | 80.00 | 54.00 | 38.10 | 9.50 | 34.0 | M6 | 3.00 | 0.85 |
| HSK A63 SRKIN8X120 CX | 63.00 | 8.00 | 21.00 | 27.00 | 120.00 | 94.00 | 38.10 | 9.50 | 34.0 | M6 | 3.00 | 1.05 |
| HSK A63 SRKIN10X85 CX | 63.00 | 10.00 | 24.00 | 32.00 | 85.00 | 59.00 | 50.80 | 9.30 | 39.8 | M8 | 4.00 | 0.87 |
| HSK A63 SRKIN10X120 CX | 63.00 | 10.00 | 24.00 | 32.00 | 120.00 | 94.00 | 50.80 | 9.30 | 39.8 | M8 | 4.00 | 1.07 |
| HSK A63 SRKIN12X90 CX | 63.00 | 12.00 | 24.00 | 32.00 | 90.00 | 64.00 | 50.80 | 9.30 | 44.8 | M10 | 5.00 | 0.90 |
| HSK A63 SRKIN12X120 CX | 63.00 | 12.00 | 24.00 | 32.00 | 120.00 | 94.00 | 50.80 | 9.30 | 44.8 | M10 | 5.00 | 1.15 |
| HSK A63 SRKIN14X90 CX | 63.00 | 14.00 | 27.00 | 34.00 | 90.00 | 64.00 | 44.50 | 9.30 | 44.8 | M10 | 5.00 | 1.02 |
| HSK A63 SRKIN16X75 CX | 63.00 | 16.00 | 27.00 | 34.00 | 75.00 | 49.00 | 44.50 | 7.50 | 46.0 | M5 | 2.50 | 0.82 |
| HSK A63 SRKIN16X95 CX | 63.00 | 16.00 | 27.00 | 34.00 | 95.00 | 69.00 | 44.50 | 9.30 | 47.8 | M12 | 6.00 | 1.00 |
| HSK A63 SRKIN16X120 CX | 63.00 | 16.00 | 27.00 | 34.00 | 120.00 | 94.00 | 44.50 | 9.30 | 47.8 | M12 | 6.00 | 1.20 |
| HSK A63 SRKIN18X95 CX | 63.00 | 18.00 | 33.00 | 42.00 | 95.00 | 69.00 | 57.20 | 9.30 | 47.8 | M12 | 6.00 | 1.20 |
| HSK A63 SRKIN20X75 CX | 63.00 | 20.00 | 33.00 | 41.00 | 75.00 | 49.00 | - | 5.50 | 46.0 | M5 | 2.50 | 0.92 |
| HSK A63 SRKIN20X100 CX | 63.00 | 20.00 | 33.00 | 42.00 | 100.00 | 74.00 | 57.20 | 8.50 | 49.0 | M16 | 8.00 | 1.18 |
| HSK A63 SRKIN20X120 CX | 63.00 | 20.00 | 33.00 | 42.00 | 120.00 | 94.00 | 57.20 | 8.50 | 49.0 | M16 | 8.00 | 1.38 |
| HSK A63 SRKIN25X85 CX | 63.00 | 25.00 | 44.00 | 52.20 | 85.00 | 59.00 | 52.10 | 9.50 | 56.0 | M5 | 2.50 | 1.26 |
| HSK A63 SRKIN32X85 CX | 63.00 | 32.00 | 44.00 | 52.20 | 85.00 | 59.00 | 52.10 | 9.50 | 56.0 | M5 | 2.50 | 1.11 |
| HSK A100 SRKIN6X85 CX | 100.00 | 6.00 | 21.00 | 27.00 | 85.00 | 56.00 | 38.10 | 9.50 | 34.0 | M5 | 2.50 | 2.21 |
| HSK A100 SRKIN8X85 CX | 100.00 | 8.00 | 21.00 | 27.00 | 85.00 | 56.00 | 38.10 | 9.50 | 34.0 | M6 | 3.00 | 2.21 |
| HSK A100 SRKIN10X90 CX | 100.00 | 10.00 | 24.00 | 32.00 | 90.00 | 61.00 | 50.80 | 9.30 | 39.8 | M8 | 4.00 | 2.29 |
| HSK A100 SRKIN12X95 CX | 100.00 | 12.00 | 24.00 | 32.00 | 95.00 | 66.00 | 50.80 | 9.30 | 44.8 | M10 | 5.00 | 2.30 |
| HSK A100 SRKIN14X95 CX | 100.00 | 14.00 | 27.00 | 34.00 | 95.00 | 66.00 | 44.50 | 9.30 | 44.8 | M10 | 5.00 | 2.36 |
| HSK A100 SRKIN16X100 CX | 100.00 | 16.00 | 27.00 | 34.00 | 100.00 | 71.00 | 44.50 | 9.30 | 47.8 | M12 | 6.00 | 2.37 |
| HSK A100 SRKIN18X100 CX | 100.00 | 18.00 | 33.00 | 42.00 | 100.00 | 71.00 | 57.20 | 9.30 | 47.8 | M12 | 6.00 | 2.53 |
| HSK A100 SRKIN20X105 CX | 100.00 | 20.00 | 33.00 | 42.00 | 105.00 | 76.00 | 57.20 | 8.50 | 49.0 | M16 | 8.00 | 2.57 |
| HSK A100 SRKIN25X115 CX | 100.00 | 25.00 | 44.00 | 53.00 | 115.00 | 86.00 | 57.20 | 9.50 | 56.0 | M16 | 8.00 | 3.07 |
| HSK A100 SRKIN32X120 CX | 100.00 | 32.00 | 44.00 | 53.00 | 120.00 | 91.00 | 57.20 | 8.50 | 59.0 | M16 | 8.00 | 2.98 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Use only inductive heating device for SRKIN holders
(1) Adjustment screw hexagon key size (2) Item weight
| DIN69871-SRKIN-CX | ADJRGA LSCWS M6 | A 0.003 A | AT3 Taper | 50-52 HRc | |||||||||
| Thermal Shrink Chucks with DIN69871 Form AD Tapered Shank and Coolant | THID | D 4.5° | CONWS | BTE | BD D | SK 40=25,000R SK 50=20,000 R G2.5 | PM PM | ||||||
| Jet Channels along the Shank Bore | CR | KS SS | LPR LBX LB | U | |||||||||
| Designation | SS | DCONWS | BTED | BD | LPR | LBX LB | LSCW | S | ADJRGA | THID | Key(1) | CRKS | WT(2) |
| DIN69871 40 SRKIN 6X80 CX | 40 | 6.00 | 21.00 | 27.00 | 80.00 | 60.90 38.00 | 34.0 | 9.50 | M5 | 2.50 | M16 | 0.99 | |
| DIN69871 40 SRKIN 8X80 CX | 40 | 8.00 | 21.00 | 27.00 | 80.00 | 60.90 38.00 | 34.0 | 9.50 | M6 | 3.00 | M16 | 1.00 | |
| DIN69871 40 SRKIN 10X80CX | 40 | 10.00 | 24.00 | 32.00 | 80.00 | 60.90 51.00 | 39.8 | 9.30 | M8 | 4.00 | M16 | 1.05 | |
| DIN69871 40 SRKIN 12X80CX | 40 | 12.00 | 24.00 | 32.00 | 80.00 | 60.90 51.00 | 44.8 | 9.30 | M10 | 5.00 | M16 | 1.05 | |
| DIN69871 40 SRKIN 14X80CX | 40 | 14.00 | 27.00 | 34.00 | 80.00 | 60.90 45.00 | 44.8 | 9.30 | M10 | 5.00 | M16 | 1.15 | |
| DIN69871 40 SRKIN 16X80CX | 40 | 16.00 | 27.00 | 34.00 | 80.00 | 60.90 45.00 | 47.8 | 9.30 | M12 | 6.00 | M16 | 1.07 | |
| DIN69871 40 SRKIN 18X80CX | 40 | 18.00 | 33.00 | 42.00 | 80.00 | 60.90 57.00 | 47.8 | 9.30 | M12 | 6.00 | M16 | 1.21 | |
| DIN69871 40 SRKIN 20X80CX | 40 | 20.00 | 33.00 | 42.00 | 80.00 | 60.90 57.00 | 49.0 | 8.50 | M16 | 8.00 | M16 | 1.16 | |
| DIN69871 40 SRKIN25X100CX | 40 | 25.00 | 44.00 | 53.00 | 100.00 | 80.90 57.00 | 55.0 | 8.50 | M16 | 8.00 | M16 | 1.71 | |
| DIN69871 40 SRKIN32X100CX | 40 | 32.00 | 44.00 | 53.00 | 100.00 | 80.90 57.00 | 59.0 | 8.50 | M16 | 8.00 | M16 | 1.60 | |
| DIN69871 50 SRKIN 6X80 CX | 50 | 6.00 | 21.00 | 27.00 | 80.00 | 61.00 38.00 | 34.0 | 9.50 | M5 | 2.50 | M24 | 2.72 | |
| DIN69871 50 SRKIN 8X80 CX | 50 | 8.00 | 21.00 | 27.00 | 80.00 | 60.90 38.00 | 34.0 | 9.50 | M6 | 3.00 | M24 | 2.71 | |
| DIN69871 50 SRKIN 10X80CX | 50 | 10.00 | 24.00 | 32.00 | 80.00 | 60.90 51.00 | 39.8 | 9.30 | M8 | 4.00 | M24 | 2.81 | |
| DIN69871 50 SRKIN 12X80CX | 50 | 12.00 | 24.00 | 32.00 | 80.00 | 60.90 51.00 | 44.8 | 9.30 | M10 | 5.00 | M24 | 2.79 | |
| DIN69871 50 SRKIN 14X80CX | 50 | 14.00 | 27.00 | 34.00 | 80.00 | 60.90 45.00 | 44.8 | 9.30 | M10 | 5.00 | M24 | 2.84 | |
| DIN69871 50 SRKIN 16X80CX | 50 | 16.00 | 27.00 | 34.00 | 80.00 | 60.90 45.00 | 47.8 | 9.30 | M12 | 6.00 | M24 | 2.76 | |
| DIN69871 50 SRKIN 18X80CX | 50 | 18.00 | 33.00 | 42.00 | 80.00 | 60.90 57.00 | 47.8 | 9.30 | M12 | 6.00 | M24 | 2.90 | |
| DIN69871 50 SRKIN 20X80CX | 50 | 20.00 | 33.00 | 42.00 | 80.00 | 60.90 57.00 | 49.0 | 8.50 | M16 | 8.00 | M24 | 2.92 | |
| DIN69871 50 SRKIN25X100CX | 50 | 25.00 | 44.00 | 53.00 | 100.00 | 80.90 57.00 | 55.0 | 8.50 | M16 | 8.00 | M24 | 3.51 | |
| DIN69871 50 SRKIN32X100CX | 50 | 32.00 | 44.00 | 53.00 | 100.00 | 80.90 57.00 | 59.0 | 8.50 | M16 | 8.00 | M24 | 3.36 |
- Use only inductive heating device for SRKIN holders
(1) Hex key size for the rear stopper screw (2) Item weight
