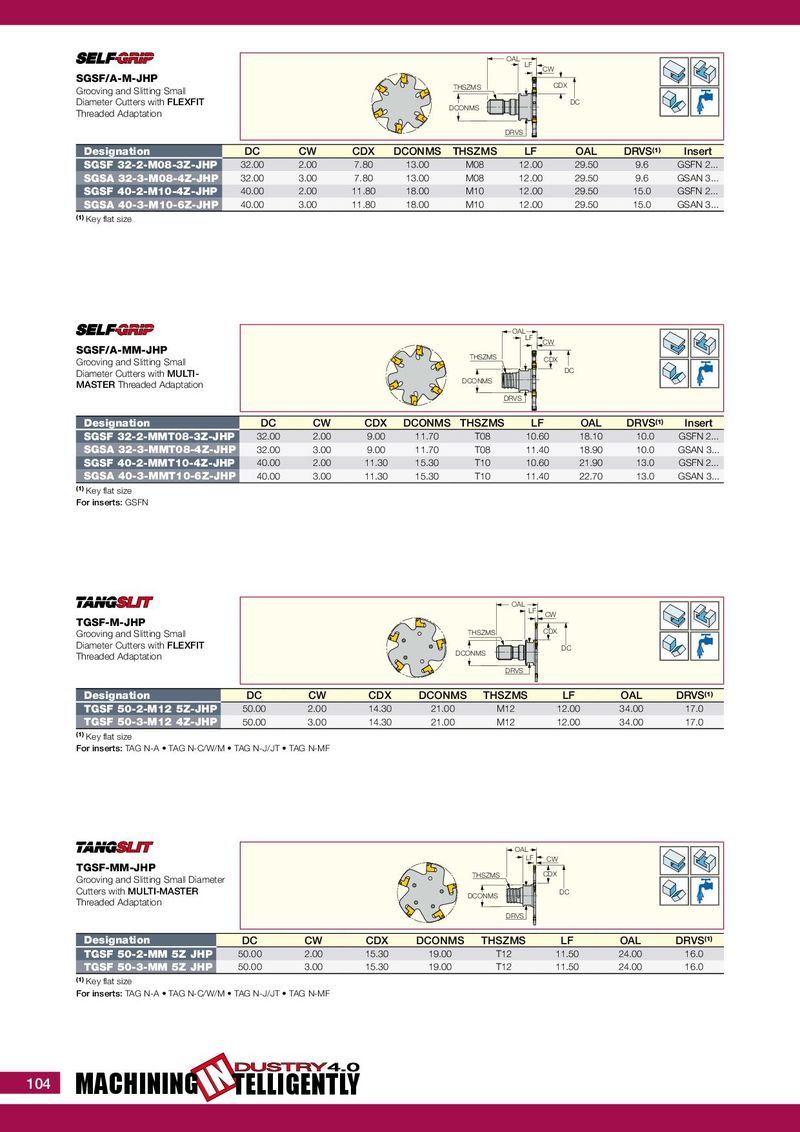

| SGSF/A-M-JHP Grooving and Slitting Small Diameter Cutters withFLEXFIT Threaded Adaptation | DCONMS THSZMS | LF DRVS OAL C CW | DC DX | ||||||
| Designation | DC | CW | CDX | DCONMS | THSZM | S LF | OAL | DRVS( | 1) Insert |
| SGSF 32-2-M08-3Z-JHP | 32.00 | 2.00 | 7.80 | 13.00 | M08 | 12.00 | 29.50 | 9.6 | GSFN 2... |
| SGSA 32-3-M08-4Z-JHP | 32.00 | 3.00 | 7.80 | 13.00 | M08 | 12.00 | 29.50 | 9.6 | GSAN 3... |
| SGSF 40-2-M10-4Z-JHP | 40.00 | 2.00 | 11.80 | 18.00 | M10 | 12.00 | 29.50 | 15.0 | GSFN 2... |
| SGSA 40-3-M10-6Z-JHP | 40.00 | 3.00 | 11.80 | 18.00 | M10 | 12.00 | 29.50 | 15.0 | GSAN 3... |
(1) Key flat size
| SGSF/A-MM-JHP Grooving and Slitting Small Diameter Cutters withMULTI- MASTERThreaded Adaptation | DCONMS THSZMS | LF CW CDX DRVS OAL | DC | ||||||
| Designation | DC | CW | CDX | DCONMS | THSZM | S LF | OAL | DRVS(1 | ) Insert |
| SGSF 32-2-MMT08-3Z-JHP | 32.00 | 2.00 | 9.00 | 11.70 | T08 | 10.60 | 18.10 | 10.0 | GSFN 2... |
| SGSA 32-3-MMT08-4Z-JHP | 32.00 | 3.00 | 9.00 | 11.70 | T08 | 11.40 | 18.90 | 10.0 | GSAN 3... |
| SGSF 40-2-MMT10-4Z-JHP | 40.00 | 2.00 | 11.30 | 15.30 | T10 | 10.60 | 21.90 | 13.0 | GSFN 2... |
| SGSA 40-3-MMT10-6Z-JHP | 40.00 | 3.00 | 11.30 | 15.30 | T10 | 11.40 | 22.70 | 13.0 | GSAN 3... |
(1) Key flat size For inserts: GSFN
| TGSF-M-JHP Grooving and Slitting Small Diameter Cutters withFLEXFIT Threaded Adaptation | LF DRVS DCONMS THSZMS OAL | DC CW CDX | ||||||
| Designation | DC | CW | CDX | DCONM | S THSZMS | LF | OAL | DRVS(1) |
| TGSF 50-2-M12 5Z-JHP | 50.00 | 2.00 | 14.30 | 21.00 | M12 | 12.00 | 34.00 | 17.0 |
| TGSF 50-3-M12 4Z-JHP | 50.00 | 3.00 | 14.30 | 21.00 | M12 | 12.00 | 34.00 | 17.0 |
(1) Key flat size For inserts: TAG N-A • TAG N-C/W/M • TAG N-J/JT • TAG N-MF
| TGSF-MM-JHP Grooving and Slitting Small Diameter Cutters withMULTI-MASTER Threaded Adaptation | LF DRVS DCONMS THSZMS OAL | CW DC CDX | ||||||
| Designation | DC | CW | CDX | DCONMS | THSZMS | LF | OAL | DRVS(1) |
| TGSF 50-2-MM 5Z JHP | 50.00 | 2.00 | 15.30 | 19.00 | T12 | 11.50 | 24.00 | 16.0 |
| TGSF 50-3-MM 5Z JHP | 50.00 | 3.00 | 15.30 | 19.00 | T12 | 11.50 | 24.00 | 16.0 |
(1) Key flat size For inserts: TAG N-A • TAG N-C/W/M • TAG N-J/JT • TAG N-MF
