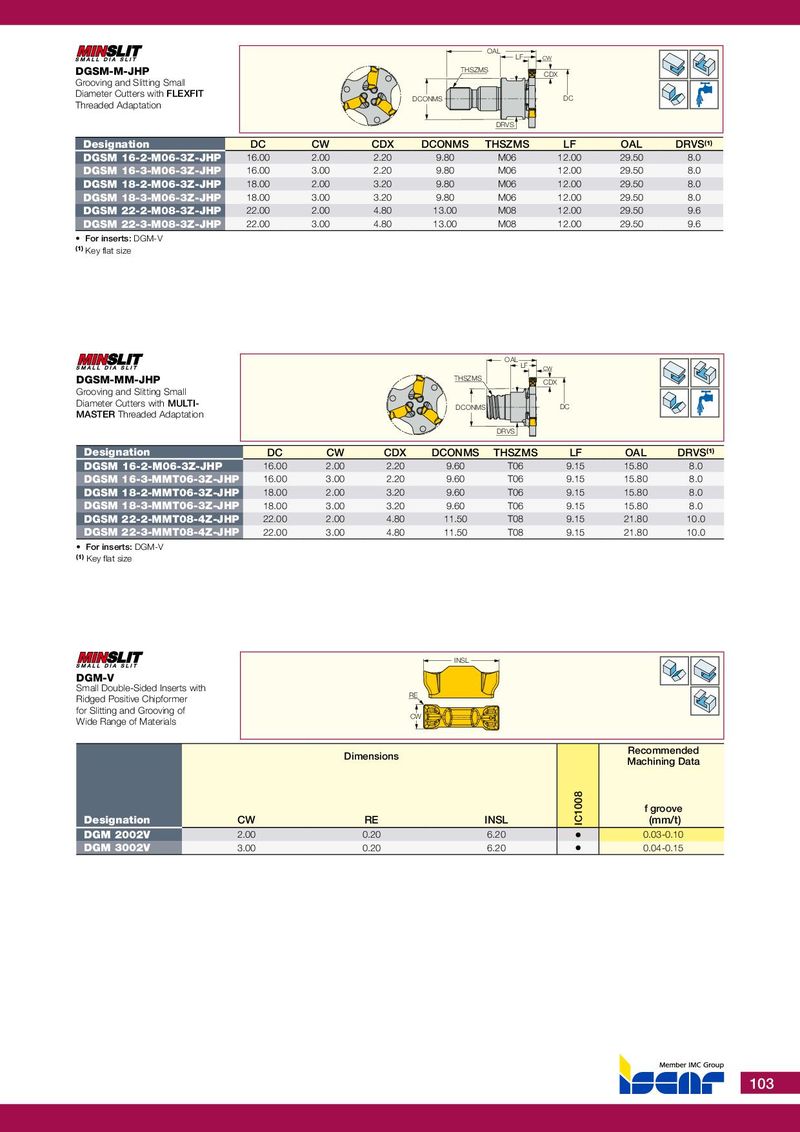

| DGSM-M-JHP Grooving and Slitting Small Diameter Cutters withFLEXFIT Threaded Adaptation | LF DRVS DCONMS THSZMS OAL | DC CDX CW | |||||
| Designation | DC | CW | CDX | DCONMS THSZMS | LF | OAL | DRVS(1) |
| DGSM 16-2-M06-3Z-JHP | 16.00 | 2.00 | 2.20 | 9.80 M06 | 12.00 | 29.50 | 8.0 |
| DGSM 16-3-M06-3Z-JHP | 16.00 | 3.00 | 2.20 | 9.80 M06 | 12.00 | 29.50 | 8.0 |
| DGSM 18-2-M06-3Z-JHP | 18.00 | 2.00 | 3.20 | 9.80 M06 | 12.00 | 29.50 | 8.0 |
| DGSM 18-3-M06-3Z-JHP | 18.00 | 3.00 | 3.20 | 9.80 M06 | 12.00 | 29.50 | 8.0 |
| DGSM 22-2-M08-3Z-JHP | 22.00 | 2.00 | 4.80 | 13.00 M08 | 12.00 | 29.50 | 9.6 |
| DGSM 22-3-M08-3Z-JHP | 22.00 | 3.00 | 4.80 | 13.00 M08 | 12.00 | 29.50 | 9.6 |
- For inserts: DGM-V
(1) Key flat size
| DGSM-MM-JHP | THSZMS | LF OAL CD CW | X | |||||
| Grooving and Slitting Small Diameter Cutters withMULTI- MASTERThreaded Adaptation | DCONMS | DRVS | DC | |||||
| Designation | DC | CW | CDX | DCONMS | THSZMS | LF | OAL | DRVS(1) |
| DGSM 16-2-M06-3Z-JHP | 16.00 | 2.00 | 2.20 | 9.60 | T06 | 9.15 | 15.80 | 8.0 |
| DGSM 16-3-MMT06-3Z-JHP | 16.00 | 3.00 | 2.20 | 9.60 | T06 | 9.15 | 15.80 | 8.0 |
| DGSM 18-2-MMT06-3Z-JHP | 18.00 | 2.00 | 3.20 | 9.60 | T06 | 9.15 | 15.80 | 8.0 |
| DGSM 18-3-MMT06-3Z-JHP | 18.00 | 3.00 | 3.20 | 9.60 | T06 | 9.15 | 15.80 | 8.0 |
| DGSM 22-2-MMT08-4Z-JHP | 22.00 | 2.00 | 4.80 | 11.50 | T08 | 9.15 | 21.80 | 10.0 |
| DGSM 22-3-MMT08-4Z-JHP | 22.00 | 3.00 | 4.80 | 11.50 | T08 | 9.15 | 21.80 | 10.0 |
- For inserts: DGM-V
(1) Key flat size
DGM-V
Small Double-Sided Inserts with Ridged Positive Chipformer for Slitting and Grooving of Wide Range of Materials
RE CW
Dimensions
INSL
Recommended Machining Data
f groove
| Designation | CW | RE | INSL | (mm/t) | |
| DGM 2002V | 2.00 | 0.20 | 6.20 | • | 0.03-0.10 |
| DGM 3002V | 3.00 | 0.20 | 6.20 | • | 0.04-0.15 |
