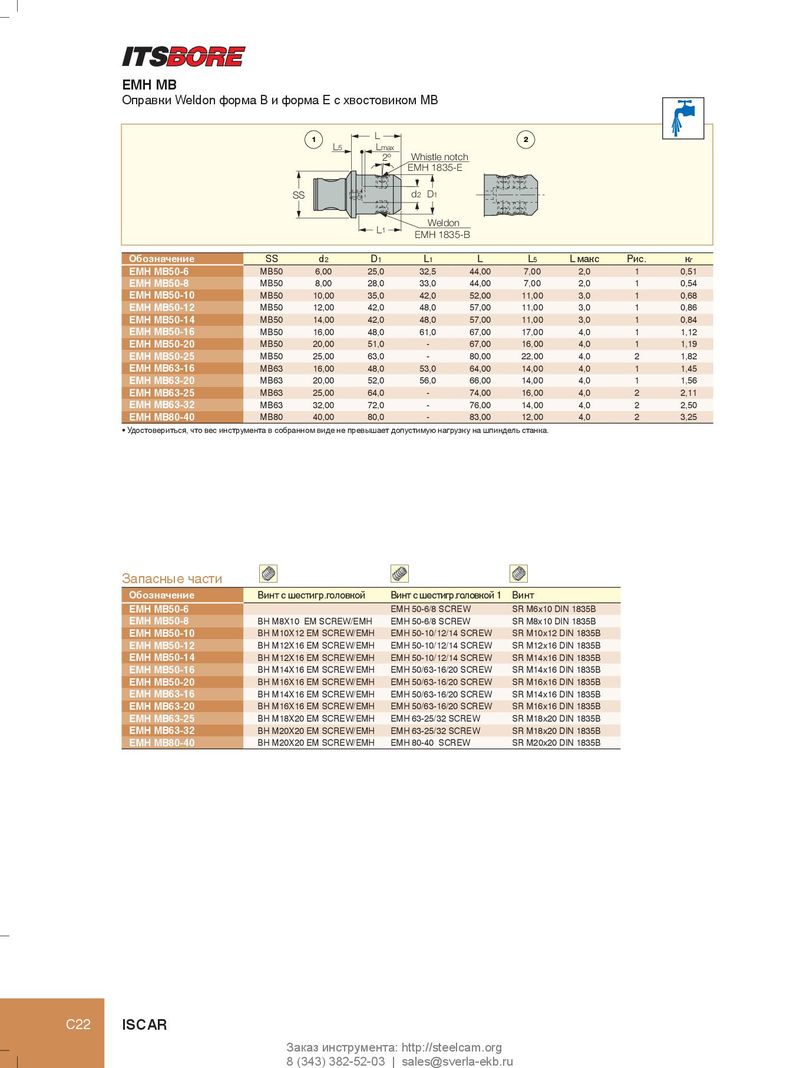

Каталог Iscar крепление инструмента - страница 233

EMH MB Оправки Weldon форма В и форма Е с хвостовиком MB 1 L 2 L 5 Lmax 2º Whistle notch EMH 1835-E SS d 2 D 1 Weldon L 1 EMH 1835-B Обозначение SS d 2 D 1 L 1 L L 5 L макс Рис. к г EMH MB50-6 MB50 6,00 25,0 32,5 44,00 7,00 2,0 1 0,51 EMH MB50-8 MB50 8,00 28,0 33,0 44,00 7,00 2,0 1 0,54 EMH MB50-10 MB50 10,00 35,0 42,0 52,00 11,00 3,0 1 0,68 EMH MB50-12 MB50 12,00 42,0 48,0 57,00 11,00 3,0 1 0,86 EMH MB50-14 MB50 14,00 42,0 48,0 57,00 11,00 3,0 1 0,84 EMH MB50-16 MB50 16,00 48,0 61,0 67,00 17,00 4,0 1 1,12 EMH MB50-20 MB50 20,00 51,0 - 67,00 16,00 4,0 1 1,19 EMH MB50-25 MB50 25,00 63,0 - 80,00 22,00 4,0 2 1,82 EMH MB63-16 MB63 16,00 48,0 53,0 64,00 14,00 4,0 1 1,45 EMH MB63-20 MB63 20,00 52,0 56,0 66,00 14,00 4,0 1 1,56 EMH MB63-25 MB63 25,00 64,0 - 74,00 16,00 4,0 2 2,11 EMH MB63-32 MB63 32,00 72,0 - 76,00 14,00 4,0 2 2,50 EMH MB80-40 MB80 40,00 80,0 - 83,00 12,00 4,0 2 3,25 • Удостовериться, что вес инструмента в собранном виде не превышает допустимую нагрузку на шпиндель станка. Запасные части Обозначение Винт с шестигр.головкой Винт с шестигр.головкой 1 Винт EMH MB50-6 EMH 50-6/8 SCREW SR M6x10 DIN 1835B EMH MB50-8 BH M8X10 EM SCREW/EMH EMH 50-6/8 SCREW SR M8x10 DIN 1835B EMH MB50-10 BH M10X12 EM SCREW/EMH EMH 50-10/12/14 SCREW SR M10x12 DIN 1835B EMH MB50-12 BH M12X16 EM SCREW/EMH EMH 50-10/12/14 SCREW SR M12x16 DIN 1835B EMH MB50-14 BH M12X16 EM SCREW/EMH EMH 50-10/12/14 SCREW SR M14x16 DIN 1835B EMH MB50-16 BH M14X16 EM SCREW/EMH EMH 50/63-16/20 SCREW SR M14x16 DIN 1835B EMH MB50-20 BH M16X16 EM SCREW/EMH EMH 50/63-16/20 SCREW SR M16x16 DIN 1835B EMH MB63-16 BH M14X16 EM SCREW/EMH EMH 50/63-16/20 SCREW SR M14x16 DIN 1835B EMH MB63-20 BH M16X16 EM SCREW/EMH EMH 50/63-16/20 SCREW SR M16x16 DIN 1835B EMH MB63-25 BH M18X20 EM SCREW/EMH EMH 63-25/32 SCREW SR M18x20 DIN 1835B EMH MB63-32 BH M20X20 EM SCREW/EMH EMH 63-25/32 SCREW SR M18x20 DIN 1835B EMH MB80-40 BH M20X20 EM SCREW/EMH EMH 80-40 SCREW SR M20x20 DIN 1835B C22 ISCAR Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
