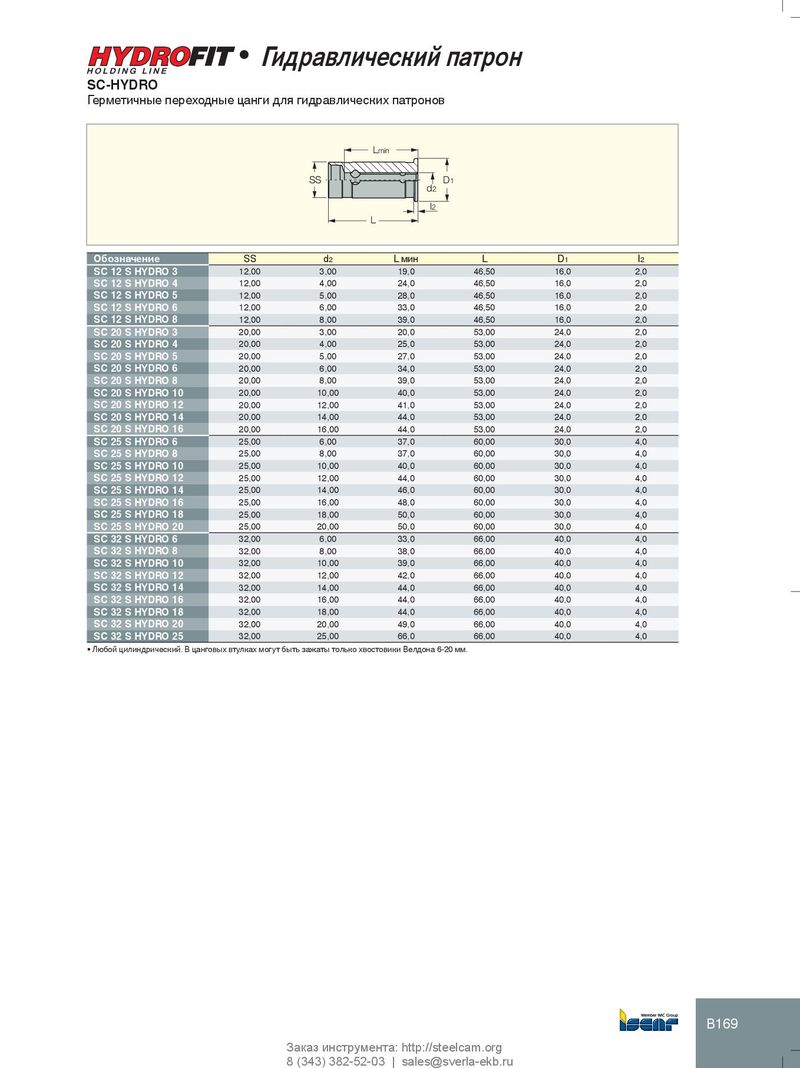

Гидравлический патрон
SC-HYDRO
Герметичные переходные цанги для гидравлических патронов
| Lmin | ||||||
| SS | d2 l2 L | D1 | ||||
| Обозначение | SS | d2 | L мин | L | D1 | l2 |
| SC 12 S HYDRO 3 | 12,00 | 3,00 | 19,0 | 46,50 | 16,0 | 2,0 |
| SC 12 S HYDRO 4 | 12,00 | 4,00 | 24,0 | 46,50 | 16,0 | 2,0 |
| SC 12 S HYDRO 5 | 12,00 | 5,00 | 28,0 | 46,50 | 16,0 | 2,0 |
| SC 12 S HYDRO 6 | 12,00 | 6,00 | 33,0 | 46,50 | 16,0 | 2,0 |
| SC 12 S HYDRO 8 | 12,00 | 8,00 | 39,0 | 46,50 | 16,0 | 2,0 |
| SC 20 S HYDRO 3 | 20,00 | 3,00 | 20,0 | 53,00 | 24,0 | 2,0 |
| SC 20 S HYDRO 4 | 20,00 | 4,00 | 25,0 | 53,00 | 24,0 | 2,0 |
| SC 20 S HYDRO 5 | 20,00 | 5,00 | 27,0 | 53,00 | 24,0 | 2,0 |
| SC 20 S HYDRO 6 | 20,00 | 6,00 | 34,0 | 53,00 | 24,0 | 2,0 |
| SC 20 S HYDRO 8 | 20,00 | 8,00 | 39,0 | 53,00 | 24,0 | 2,0 |
| SC 20 S HYDRO 10 | 20,00 | 10,00 | 40,0 | 53,00 | 24,0 | 2,0 |
| SC 20 S HYDRO 12 | 20,00 | 12,00 | 41,0 | 53,00 | 24,0 | 2,0 |
| SC 20 S HYDRO 14 | 20,00 | 14,00 | 44,0 | 53,00 | 24,0 | 2,0 |
| SC 20 S HYDRO 16 | 20,00 | 16,00 | 44,0 | 53,00 | 24,0 | 2,0 |
| SC 25 S HYDRO 6 | 25,00 | 6,00 | 37,0 | 60,00 | 30,0 | 4,0 |
| SC 25 S HYDRO 8 | 25,00 | 8,00 | 37,0 | 60,00 | 30,0 | 4,0 |
| SC 25 S HYDRO 10 | 25,00 | 10,00 | 40,0 | 60,00 | 30,0 | 4,0 |
| SC 25 S HYDRO 12 | 25,00 | 12,00 | 44,0 | 60,00 | 30,0 | 4,0 |
| SC 25 S HYDRO 14 | 25,00 | 14,00 | 46,0 | 60,00 | 30,0 | 4,0 |
| SC 25 S HYDRO 16 | 25,00 | 16,00 | 48,0 | 60,00 | 30,0 | 4,0 |
| SC 25 S HYDRO 18 | 25,00 | 18,00 | 50,0 | 60,00 | 30,0 | 4,0 |
| SC 25 S HYDRO 20 | 25,00 | 20,00 | 50,0 | 60,00 | 30,0 | 4,0 |
| SC 32 S HYDRO 6 | 32,00 | 6,00 | 33,0 | 66,00 | 40,0 | 4,0 |
| SC 32 S HYDRO 8 | 32,00 | 8,00 | 38,0 | 66,00 | 40,0 | 4,0 |
| SC 32 S HYDRO 10 | 32,00 | 10,00 | 39,0 | 66,00 | 40,0 | 4,0 |
| SC 32 S HYDRO 12 | 32,00 | 12,00 | 42,0 | 66,00 | 40,0 | 4,0 |
| SC 32 S HYDRO 14 | 32,00 | 14,00 | 44,0 | 66,00 | 40,0 | 4,0 |
| SC 32 S HYDRO 16 | 32,00 | 16,00 | 44,0 | 66,00 | 40,0 | 4,0 |
| SC 32 S HYDRO 18 | 32,00 | 18,00 | 44,0 | 66,00 | 40,0 | 4,0 |
| SC 32 S HYDRO 20 | 32,00 | 20,00 | 49,0 | 66,00 | 40,0 | 4,0 |
| SC 32 S HYDRO 25 | 32,00 | 25,00 | 66,0 | 66,00 | 40,0 | 4,0 |
- Любой цилиндрический. В цанговых втулках могут быть зажаты только хвостовики Велдона 6-20 мм.
