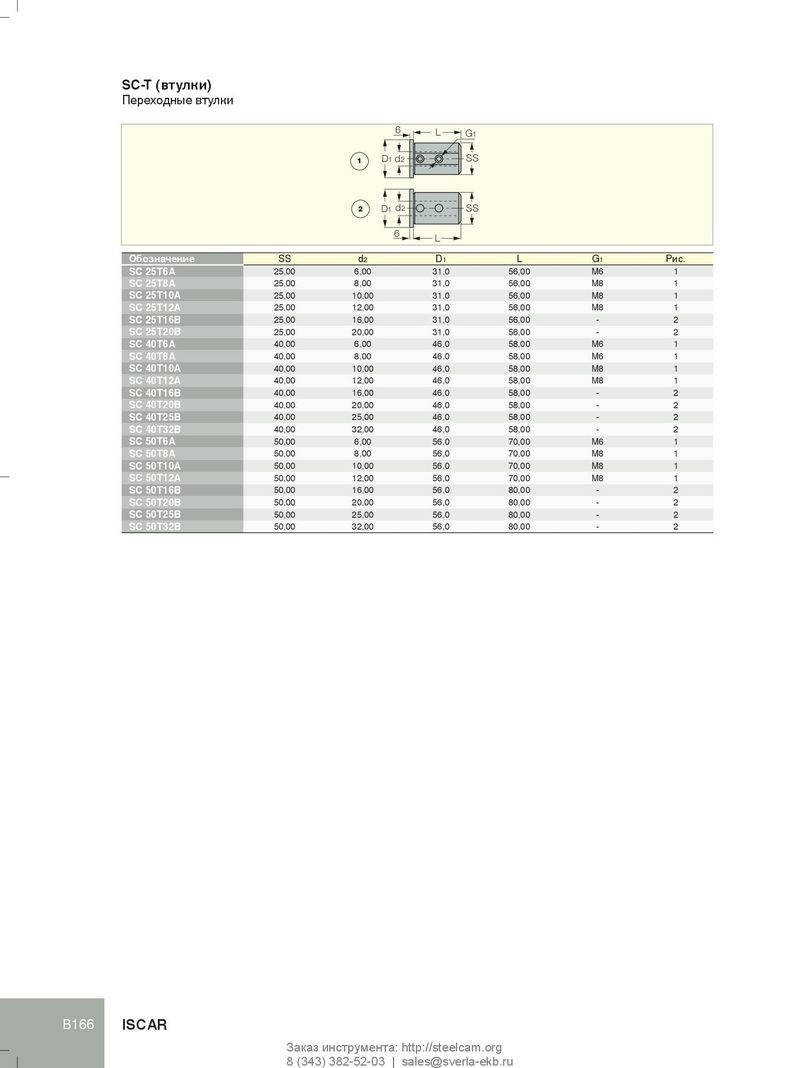

SC-T (втулки)
Переходные втулки
| 1 | D1 d 6 | 2 L | SS G1 | |||||
| 2 | D1 d 6 | 2 L | SS | |||||
| Обозначение | SS | d2 | D1 | L | G1 | Рис. | ||
| SC 25T6A | 25,00 | 6,00 | 31,0 | 56,00 | M6 | 1 | ||
| SC 25T8A | 25,00 | 8,00 | 31,0 | 56,00 | M8 | 1 | ||
| SC 25T10A | 25,00 | 10,00 | 31,0 | 56,00 | M8 | 1 | ||
| SC 25T12A | 25,00 | 12,00 | 31,0 | 56,00 | M8 | 1 | ||
| SC 25T16B | 25,00 | 16,00 | 31,0 | 56,00 | - | 2 | ||
| SC 25T20B | 25,00 | 20,00 | 31,0 | 56,00 | - | 2 | ||
| SC 40T6A | 40,00 | 6,00 | 46,0 | 58,00 | M6 | 1 | ||
| SC 40T8A | 40,00 | 8,00 | 46,0 | 58,00 | M6 | 1 | ||
| SC 40T10A | 40,00 | 10,00 | 46,0 | 58,00 | M8 | 1 | ||
| SC 40T12A | 40,00 | 12,00 | 46,0 | 58,00 | M8 | 1 | ||
| SC 40T16B | 40,00 | 16,00 | 46,0 | 58,00 | - | 2 | ||
| SC 40T20B | 40,00 | 20,00 | 46,0 | 58,00 | - | 2 | ||
| SC 40T25B | 40,00 | 25,00 | 46,0 | 58,00 | - | 2 | ||
| SC 40T32B | 40,00 | 32,00 | 46,0 | 58,00 | - | 2 | ||
| SC 50T6A | 50,00 | 6,00 | 56,0 | 70,00 | M6 | 1 | ||
| SC 50T8A | 50,00 | 8,00 | 56,0 | 70,00 | M8 | 1 | ||
| SC 50T10A | 50,00 | 10,00 | 56,0 | 70,00 | M8 | 1 | ||
| SC 50T12A | 50,00 | 12,00 | 56,0 | 70,00 | M8 | 1 | ||
| SC 50T16B | 50,00 | 16,00 | 56,0 | 80,00 | - | 2 | ||
| SC 50T20B | 50,00 | 20,00 | 56,0 | 80,00 | - | 2 | ||
| SC 50T25B | 50,00 | 25,00 | 56,0 | 80,00 | - | 2 | ||
| SC 50T32B | 50,00 | 32,00 | 56,0 | 80,00 | - | 2 |
