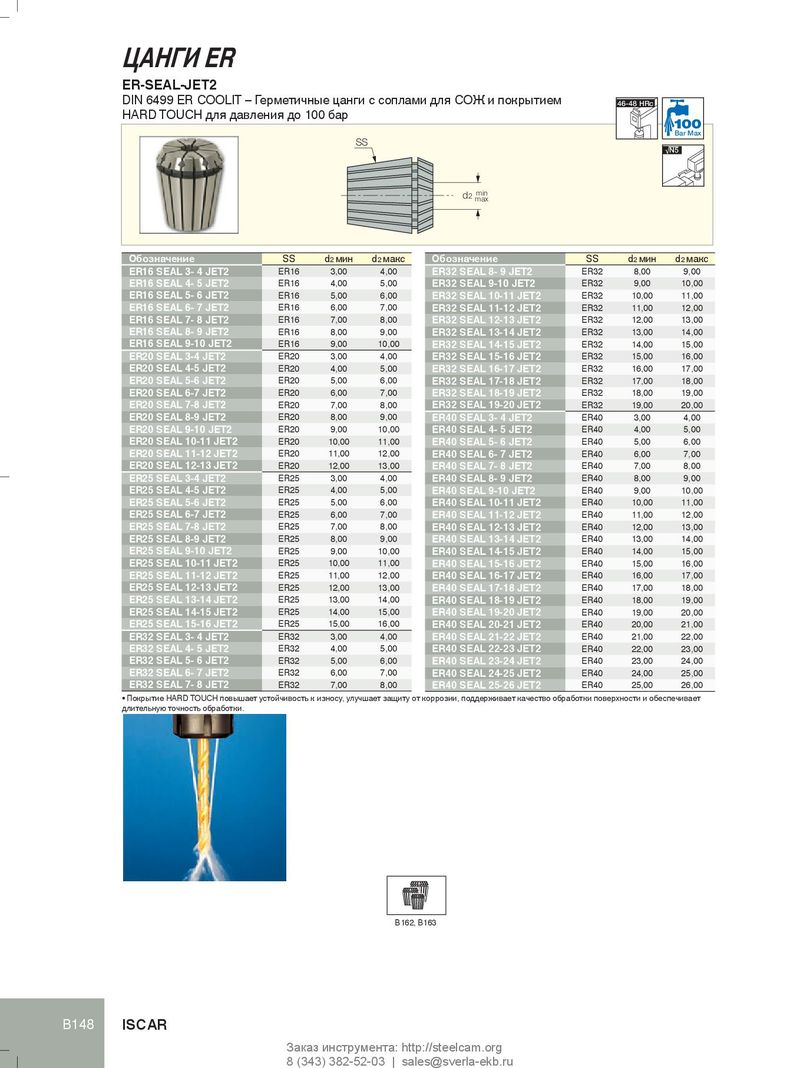

ER-SEAL-JET2
DIN 6499 ER COOLIT – Герметичные цанги с соплами для СОЖ и покрытием
HARD TOUCH для давления до 100 бар
SS
46-48 HRc Bar Max √N5
d2 min
max
| Обозначение | SS | d2мин | d2макс | Обозначение | SS | d2мин | d2макс |
| ER16 SEAL 3- 4 JET2 | ER16 | 3,00 | 4,00 | ER32 SEAL 8- 9 JET2 | ER32 | 8,00 | 9,00 |
| ER16 SEAL 4- 5 JET2 | ER16 | 4,00 | 5,00 | ER32 SEAL 9-10 JET2 | ER32 | 9,00 | 10,00 |
| ER16 SEAL 5- 6 JET2 | ER16 | 5,00 | 6,00 | ER32 SEAL 10-11 JET2 | ER32 | 10,00 | 11,00 |
| ER16 SEAL 6- 7 JET2 | ER16 | 6,00 | 7,00 | ER32 SEAL 11-12 JET2 | ER32 | 11,00 | 12,00 |
| ER16 SEAL 7- 8 JET2 | ER16 | 7,00 | 8,00 | ER32 SEAL 12-13 JET2 | ER32 | 12,00 | 13,00 |
| ER16 SEAL 8- 9 JET2 | ER16 | 8,00 | 9,00 | ER32 SEAL 13-14 JET2 | ER32 | 13,00 | 14,00 |
| ER16 SEAL 9-10 JET2 | ER16 | 9,00 | 10,00 | ER32 SEAL 14-15 JET2 | ER32 | 14,00 | 15,00 |
| ER20 SEAL 3-4 JET2 | ER20 | 3,00 | 4,00 | ER32 SEAL 15-16 JET2 | ER32 | 15,00 | 16,00 |
| ER20 SEAL 4-5 JET2 | ER20 | 4,00 | 5,00 | ER32 SEAL 16-17 JET2 | ER32 | 16,00 | 17,00 |
| ER20 SEAL 5-6 JET2 | ER20 | 5,00 | 6,00 | ER32 SEAL 17-18 JET2 | ER32 | 17,00 | 18,00 |
| ER20 SEAL 6-7 JET2 | ER20 | 6,00 | 7,00 | ER32 SEAL 18-19 JET2 | ER32 | 18,00 | 19,00 |
| ER20 SEAL 7-8 JET2 | ER20 | 7,00 | 8,00 | ER32 SEAL 19-20 JET2 | ER32 | 19,00 | 20,00 |
| ER20 SEAL 8-9 JET2 | ER20 | 8,00 | 9,00 | ER40 SEAL 3- 4 JET2 | ER40 | 3,00 | 4,00 |
| ER20 SEAL 9-10 JET2 | ER20 | 9,00 | 10,00 | ER40 SEAL 4- 5 JET2 | ER40 | 4,00 | 5,00 |
| ER20 SEAL 10-11 JET2 | ER20 | 10,00 | 11,00 | ER40 SEAL 5- 6 JET2 | ER40 | 5,00 | 6,00 |
| ER20 SEAL 11-12 JET2 | ER20 | 11,00 | 12,00 | ER40 SEAL 6- 7 JET2 | ER40 | 6,00 | 7,00 |
| ER20 SEAL 12-13 JET2 | ER20 | 12,00 | 13,00 | ER40 SEAL 7- 8 JET2 | ER40 | 7,00 | 8,00 |
| ER25 SEAL 3-4 JET2 | ER25 | 3,00 | 4,00 | ER40 SEAL 8- 9 JET2 | ER40 | 8,00 | 9,00 |
| ER25 SEAL 4-5 JET2 | ER25 | 4,00 | 5,00 | ER40 SEAL 9-10 JET2 | ER40 | 9,00 | 10,00 |
| ER25 SEAL 5-6 JET2 | ER25 | 5,00 | 6,00 | ER40 SEAL 10-11 JET2 | ER40 | 10,00 | 11,00 |
| ER25 SEAL 6-7 JET2 | ER25 | 6,00 | 7,00 | ER40 SEAL 11-12 JET2 | ER40 | 11,00 | 12,00 |
| ER25 SEAL 7-8 JET2 | ER25 | 7,00 | 8,00 | ER40 SEAL 12-13 JET2 | ER40 | 12,00 | 13,00 |
| ER25 SEAL 8-9 JET2 | ER25 | 8,00 | 9,00 | ER40 SEAL 13-14 JET2 | ER40 | 13,00 | 14,00 |
| ER25 SEAL 9-10 JET2 | ER25 | 9,00 | 10,00 | ER40 SEAL 14-15 JET2 | ER40 | 14,00 | 15,00 |
| ER25 SEAL 10-11 JET2 | ER25 | 10,00 | 11,00 | ER40 SEAL 15-16 JET2 | ER40 | 15,00 | 16,00 |
| ER25 SEAL 11-12 JET2 | ER25 | 11,00 | 12,00 | ER40 SEAL 16-17 JET2 | ER40 | 16,00 | 17,00 |
| ER25 SEAL 12-13 JET2 | ER25 | 12,00 | 13,00 | ER40 SEAL 17-18 JET2 | ER40 | 17,00 | 18,00 |
| ER25 SEAL 13-14 JET2 | ER25 | 13,00 | 14,00 | ER40 SEAL 18-19 JET2 | ER40 | 18,00 | 19,00 |
| ER25 SEAL 14-15 JET2 | ER25 | 14,00 | 15,00 | ER40 SEAL 19-20 JET2 | ER40 | 19,00 | 20,00 |
| ER25 SEAL 15-16 JET2 | ER25 | 15,00 | 16,00 | ER40 SEAL 20-21 JET2 | ER40 | 20,00 | 21,00 |
| ER32 SEAL 3- 4 JET2 | ER32 | 3,00 | 4,00 | ER40 SEAL 21-22 JET2 | ER40 | 21,00 | 22,00 |
| ER32 SEAL 4- 5 JET2 | ER32 | 4,00 | 5,00 | ER40 SEAL 22-23 JET2 | ER40 | 22,00 | 23,00 |
| ER32 SEAL 5- 6 JET2 | ER32 | 5,00 | 6,00 | ER40 SEAL 23-24 JET2 | ER40 | 23,00 | 24,00 |
| ER32 SEAL 6- 7 JET2 | ER32 | 6,00 | 7,00 | ER40 SEAL 24-25 JET2 | ER40 | 24,00 | 25,00 |
| ER32 SEAL 7- 8 JET2 | ER32 | 7,00 | 8,00 | ER40 SEAL 25-26 JET2 | ER40 | 25,00 | 26,00 |
- Покрытие HARD TOUCH повышает устойчивость к износу, улучшает защиту от коррозии, поддерживает качество обработки поверхности и обеспечивает
длительную точность обработки.
B162, B163
