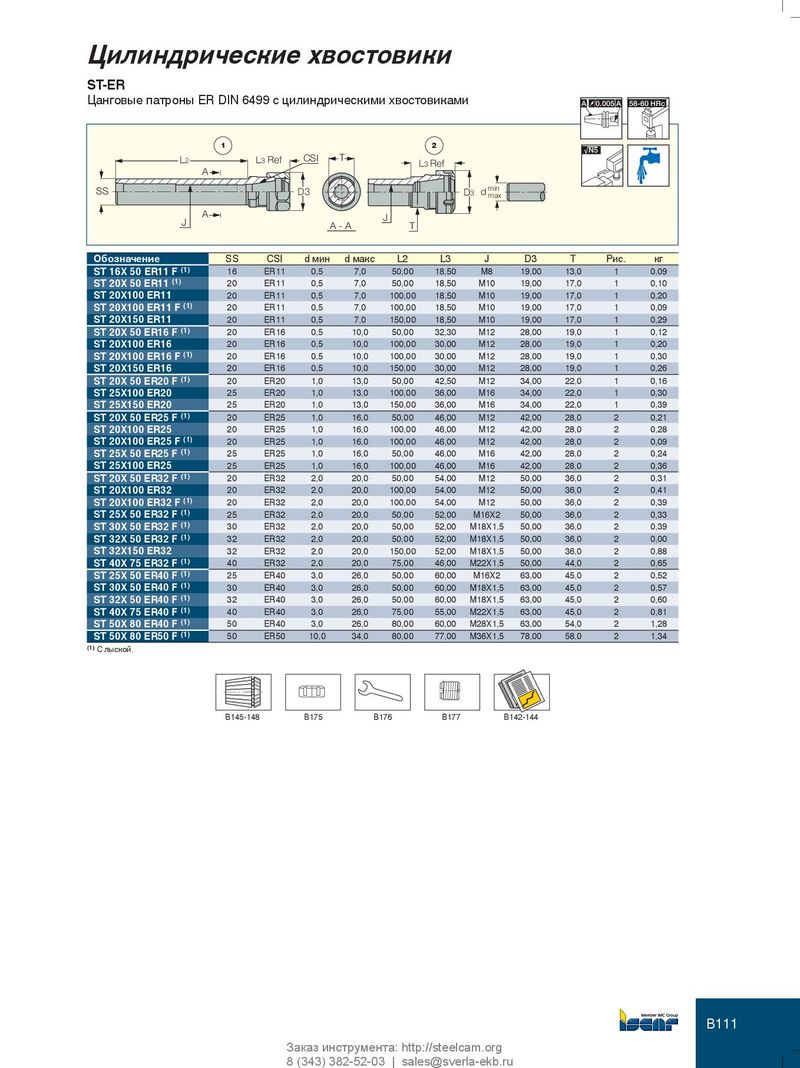

Цилиндрические хвостовики
ST-ER
Цанговые патроны ER DIN 6499 с цилиндрическими хвостовиками A 0.005 A 58-60 HRc
1 2
√N5
L2 L3 Ref CSI T
L3 Ref
A
min
SS D3 D3 d max
A J
J A-A T
Обозначение SS CSI d мин d макс L2 L3 J D3 T Рис. кг
ST 16X 50 ER11 F (1) 16 ER11 0,5 7,0 50,00 18,50 M8 19,00 13,0 1 0,09
ST 20X 50 ER11 (1) 20 ER11 0,5 7,0 50,00 18,50 M10 19,00 17,0 1 0,10
ST 20X100 ER11 20 ER11 0,5 7,0 100,00 18,50 M10 19,00 17,0 1 0,20
ST 20X100 ER11 F (1) 20 ER11 0,5 7,0 100,00 18,50 M10 19,00 17,0 1 0,09
ST 20X150 ER11 20 ER11 0,5 7,0 150,00 18,50 M10 19,00 17,0 1 0,29
ST 20X 50 ER16 F (1) 20 ER16 0,5 10,0 50,00 32,30 M12 28,00 19,0 1 0,12
ST 20X100 ER16 20 ER16 0,5 10,0 100,00 30,00 M12 28,00 19,0 1 0,20
ST 20X100 ER16 F (1) 20 ER16 0,5 10,0 100,00 30,00 M12 28,00 19,0 1 0,30
ST 20X150 ER16 20 ER16 0,5 10,0 150,00 30,00 M12 28,00 19,0 1 0,26
ST 20X 50 ER20 F (1) 20 ER20 1,0 13,0 50,00 42,50 M12 34,00 22,0 1 0,16
ST 25X100 ER20 25 ER20 1,0 13,0 100,00 36,00 M16 34,00 22,0 1 0,30
ST 25X150 ER20 25 ER20 1,0 13,0 150,00 36,00 M16 34,00 22,0 1 0,39
ST 20X 50 ER25 F (1) 20 ER25 1,0 16,0 50,00 46,00 M12 42,00 28,0 2 0,21
ST 20X100 ER25 20 ER25 1,0 16,0 100,00 46,00 M12 42,00 28,0 2 0,28
ST 20X100 ER25 F (1) 20 ER25 1,0 16,0 100,00 46,00 M12 42,00 28,0 2 0,09
ST 25X 50 ER25 F (1) 25 ER25 1,0 16,0 50,00 46,00 M16 42,00 28,0 2 0,24
ST 25X100 ER25 25 ER25 1,0 16,0 100,00 46,00 M16 42,00 28,0 2 0,36
ST 20X 50 ER32 F (1) 20 ER32 2,0 20,0 50,00 54,00 M12 50,00 36,0 2 0,31
ST 20X100 ER32 20 ER32 2,0 20,0 100,00 54,00 M12 50,00 36,0 2 0,41
ST 20X100 ER32 F (1) 20 ER32 2,0 20,0 100,00 54,00 M12 50,00 36,0 2 0,39
ST 25X 50 ER32 F (1) 25 ER32 2,0 20,0 50,00 52,00 M16X2 50,00 36,0 2 0,33
ST 30X 50 ER32 F (1) 30 ER32 2,0 20,0 50,00 52,00 M18X1,5 50,00 36,0 2 0,39
ST 32X 50 ER32 F (1) 32 ER32 2,0 20,0 50,00 52,00 M18X1,5 50,00 36,0 2 0,00
ST 32X150 ER32 32 ER32 2,0 20,0 150,00 52,00 M18X1,5 50,00 36,0 2 0,88
ST 40X 75 ER32 F (1) 40 ER32 2,0 20,0 75,00 46,00 M22X1,5 50,00 44,0 2 0,65
ST 25X 50 ER40 F (1) 25 ER40 3,0 26,0 50,00 60,00 M16X2 63,00 45,0 2 0,52
ST 30X 50 ER40 F (1) 30 ER40 3,0 26,0 50,00 60,00 M18X1,5 63,00 45,0 2 0,57
ST 32X 50 ER40 F (1) 32 ER40 3,0 26,0 50,00 60,00 M18X1,5 63,00 45,0 2 0,60
ST 40X 75 ER40 F (1) 40 ER40 3,0 26,0 75,00 55,00 M22X1,5 63,00 45,0 2 0,81
ST 50X 80 ER40 F (1) 50 ER40 3,0 26,0 80,00 60,00 M28X1,5 63,00 54,0 2 1,28
ST 50X 80 ER50 F (1) 50 ER50 10,0 34,0 80,00 77,00 M36X1,5 78,00 58,0 2 1,34
(1) С лыской.
B145-148 B175 B176 B177 B142-144
B111
