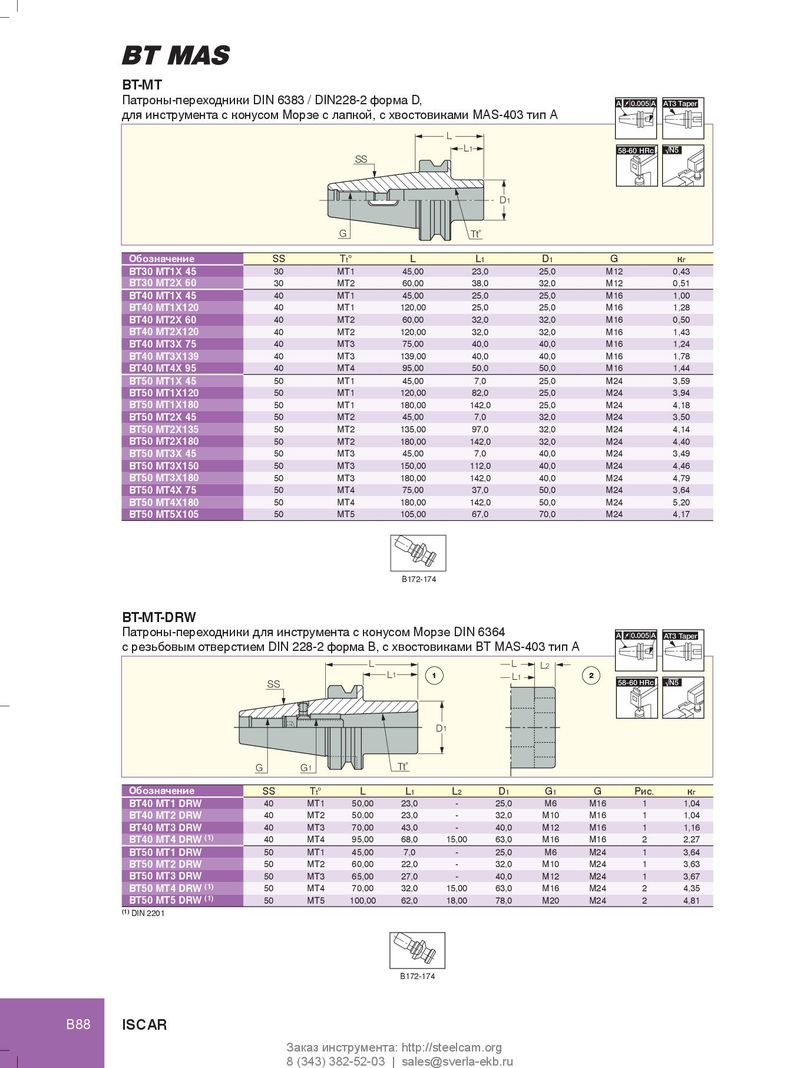

BT-MT
Патроны-переходники DIN 6383 / DIN228-2 форма D,
| атроныпереходни ля инструмента с к | и онусом Мор | форма , зе с лапкой, с хвостовиками MAS | -403 тип A | A | A 0.005 | AT3 Taper |
| L | ||||||
| L1 SS | 58 | -60 HRc | √N5 | |||
| Tt˚ G | D1 | |||||
| Обозначение | SS | Tt° L L1 | D1 | G | кг | |
| BT30 MT1X 45 | 30 | MT1 45,00 23,0 | 25,0 | M12 | 0,43 | |
| BT30 MT2X 60 | 30 | MT2 60,00 38,0 | 32,0 | M12 | 0,51 | |
| BT40 MT1X 45 | 40 | MT1 45,00 25,0 | 25,0 | M16 | 1,00 | |
| BT40 MT1X120 | 40 | MT1 120,00 25,0 | 25,0 | M16 | 1,28 | |
| BT40 MT2X 60 | 40 | MT2 60,00 32,0 | 32,0 | M16 | 0,50 | |
| BT40 MT2X120 | 40 | MT2 120,00 32,0 | 32,0 | M16 | 1,43 | |
| BT40 MT3X 75 | 40 | MT3 75,00 40,0 | 40,0 | M16 | 1,24 | |
| BT40 MT3X139 | 40 | MT3 139,00 40,0 | 40,0 | M16 | 1,78 | |
| BT40 MT4X 95 | 40 | MT4 95,00 50,0 | 50,0 | M16 | 1,44 | |
| BT50 MT1X 45 | 50 | MT1 45,00 7,0 | 25,0 | M24 | 3,59 | |
| BT50 MT1X120 | 50 | MT1 120,00 82,0 | 25,0 | M24 | 3,94 | |
| BT50 MT1X180 | 50 | MT1 180,00 142,0 | 25,0 | M24 | 4,18 | |
| BT50 MT2X 45 | 50 | MT2 45,00 7,0 | 32,0 | M24 | 3,50 | |
| BT50 MT2X135 | 50 | MT2 135,00 97,0 | 32,0 | M24 | 4,14 | |
| BT50 MT2X180 | 50 | MT2 180,00 142,0 | 32,0 | M24 | 4,40 | |
| BT50 MT3X 45 | 50 | MT3 45,00 7,0 | 40,0 | M24 | 3,49 | |
| BT50 MT3X150 | 50 | MT3 150,00 112,0 | 40,0 | M24 | 4,46 | |
| BT50 MT3X180 | 50 | MT3 180,00 142,0 | 40,0 | M24 | 4,79 | |
| BT50 MT4X 75 | 50 | MT4 75,00 37,0 | 50,0 | M24 | 3,64 | |
| BT50 MT4X180 | 50 | MT4 180,00 142,0 | 50,0 | M24 | 5,20 | |
| BT50 MT5X105 | 50 | MT5 105,00 67,0 | 70,0 | M24 | 4,17 |
B172-174
BT-MT-DRW
| атроныпереход резьбовым отве | ики для и рстием DIN SS G | струмента с ко 228-2 форма B, L G1 | усом с хвост L1 Tt˚ | орзе овиками B D1 1 | T MAS-403 тип L2 L L1 | A 2 | A 0.005 A 58-60 HRc | AT3 Taper √N5 |
| Обозначение | SS | Tt° L | L1 | L2 | D1 G1 | G | Рис. | кг |
| BT40 MT1 DRW | 40 | MT1 50,00 | 23,0 | - | 25,0 M6 | M16 | 1 | 1,04 |
| BT40 MT2 DRW | 40 | MT2 50,00 | 23,0 | - | 32,0 M10 | M16 | 1 | 1,04 |
| BT40 MT3 DRW | 40 | MT3 70,00 | 43,0 | - | 40,0 M12 | M16 | 1 | 1,16 |
| BT40 MT4 DRW(1) | 40 | MT4 95,00 | 68,0 | 15,00 | 63,0 M16 | M16 | 2 | 2,27 |
| BT50 MT1 DRW | 50 | MT1 45,00 | 7,0 | - | 25,0 M6 | M24 | 1 | 3,64 |
| BT50 MT2 DRW | 50 | MT2 60,00 | 22,0 | - | 32,0 M10 | M24 | 1 | 3,63 |
| BT50 MT3 DRW | 50 | MT3 65,00 | 27,0 | - | 40,0 M12 | M24 | 1 | 3,67 |
| BT50 MT4 DRW(1) | 50 | MT4 70,00 | 32,0 | 15,00 | 63,0 M16 | M24 | 2 | 4,35 |
| BT50 MT5 DRW(1) | 50 | MT5 100,00 | 62,0 | 18,00 | 78,0 M20 | M24 | 2 | 4,81 |
(1) DIN 2201
