| ONMU | 1008... | DH DC | UB ON | S | 845 SN | MU... | |||||||

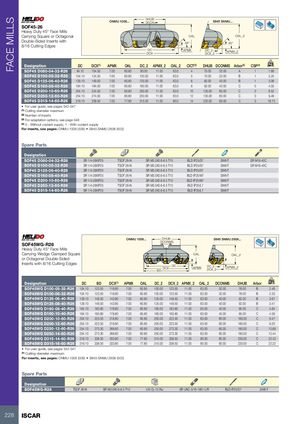

| SOF45-26 Heavy Duty 45° Face Mills Carrying Square or Octagonal Double-Sided Inserts with 8/16 Cutting Edges | DC D | X C | OAL 44° APMX | DCX2 DC2 | OAL2 45° APMX2 | ||||||||
| Designation | DC | DCX(1) | APMX | OAL | DC2 | APMX2 | OAL | 2 CICT(2) | DHUB | DCON | MS Arbor(3) | CSP(4) | kg |
| SOF45 D080-04-32-R26 | 84.10 | 104.50 | 7.00 | 60.80 | 80.00 | 11.00 | 63.0 | 4 | 70.00 | 32.00 | A | 1 | 1.68 |
| SOF45 D100-05-32-R26 | 104.10 | 124.50 | 7.00 | 60.80 | 100.00 | 11.00 | 63.0 | 5 | 70.00 | 32.00 | B | 1 | 2.25 |
| SOF45 D125-06-40-R26 | 129.10 | 149.50 | 7.00 | 60.80 | 125.00 | 11.00 | 63.0 | 6 | 82.00 | 40.00 | B | 1 | 3.08 |
| SOF45 D160-08-40-R26 | 164.10 | 184.50 | 7.00 | 60.80 | 160.00 | 11.00 | 63.0 | 8 | 92.00 | 40.00 | C | 0 | 4.05 |
| SOF45 D200-10-60-R26 | 204.10 | 224.50 | 7.00 | 60.80 | 200.00 | 11.00 | 63.0 | 10 | 135.00 | 60.00 | C | 0 | 6.52 |
| SOF45 D250-12-60-R26 | 254.10 | 274.50 | 7.00 | 60.80 | 250.00 | 11.00 | 63.0 | 12 | 135.00 | 60.00 | C | 0 | 9.48 |
| SOF45 D315-14-60-R26 | 319.10 | 339.50 | 7.00 | 77.80 | 315.00 | 11.00 | 80.0 | 14 | 220.00 | 60.00 | C | 0 | 19.73 |
- For user guide, see pages 542-547
(1) Cutting diameter maximum (2) Number of inserts (3) For adaptation options, see page 548 (4) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: ONMU 1008 (509) S845 SNMU 2608 (502)
Spare Parts
| Designation | ||||||
| SOF45 D080-04-32-R26 | SR 1/4-28XIP25 | TSOF 26-N | SR M3.5X0.6-6.5 T10 | BLD IP25/S7 | SW6-T | SR M16-40C |
| SOF45 D100-05-32-R26 | SR 1/4-28XIP25 | TSOF 26-N | SR M3.5X0.6-6.5 T10 | BLD IP25/S7 | SW6-T | SR M16-40C |
| SOF45 D125-06-40-R26 | SR 1/4-28XIP25 | TSOF 26-N | SR M3.5X0.6-6.5 T10 | BLD IP25/S7 | SW6-T | |
| SOF45 D160-08-40-R26 | SR 1/4-28XIP25 | TSOF 26-N | SR M3.5X0.6-6.5 T10 | BLD IP25/M7 | SW6-T | |
| SOF45 D200-10-60-R26 | SR 1/4-28XIP25 | TSOF 26-N | SR M3.5X0.6-6.5 T10 | BLD IP25/M7 | SW6-T | |
| SOF45 D250-12-60-R26 | SR 1/4-28XIP25 | TSOF 26-N | SR M3.5X0.6-6.5 T10 | BLD IP25/L7 | SW6-T | |
| SOF45 D315-14-60-R26 | SR 1/4-28XIP25 | TSOF 26-N | SR M3.5X0.6-6.5 T10 | BLD IP25/L7 | SW6-T |
| SOF45WG-R26 Heavy Duty 45° Face Mills Carrying Wedge Clamped Squar or Octagonal Double-Sided Inserts with 8/16 Cutting Edges | e | ONMU | 1008... | DC D BD D | ONMS HUB DC CX | OAL APMX D D | C2 CX2 S845 SN | APMX2 OAL2 MU 2608... | |||||
| Designation | DC | BD | DCX(1) | APMX | OAL | DC2 | DCX2 | APMX | 2 OAL2 | DCONM | S DHUB | Arbor | kg |
| SOF45WG D100-05-32-R26 | 104.10 | 123.50 | 118.80 | 7.00 | 60.80 | 100.00 | 123.50 | 11.00 | 63.00 | 32.00 | 78.00 | B | 2.46 |
| SOF45WG D100-06-32-R26 | 104.10 | 123.50 | 118.80 | 7.00 | 60.80 | 100.00 | 123.50 | 11.00 | 63.00 | 32.00 | 78.00 | B | 2.33 |
| SOF45WG D125-06-40-R26 | 129.10 | 148.50 | 143.80 | 7.00 | 60.80 | 125.00 | 148.50 | 11.00 | 63.00 | 40.00 | 92.00 | B | 3.67 |
| SOF45WG D125-08-40-R26 | 129.10 | 148.50 | 143.80 | 7.00 | 60.80 | 125.00 | 148.50 | 11.00 | 63.00 | 40.00 | 92.00 | B | 3.41 |
| SOF45WG D160-08-40-R26 | 164.10 | 183.80 | 178.80 | 7.00 | 60.80 | 160.00 | 183.80 | 11.00 | 63.00 | 40.00 | 95.00 | C | 4.84 |
| SOF45WG D160-10-40-R26 | 164.10 | 183.80 | 178.80 | 7.00 | 60.80 | 160.00 | 183.80 | 11.00 | 63.00 | 40.00 | 95.00 | C | 4.58 |
| SOF45WG D200-10-60-R26 | 204.10 | 223.50 | 218.80 | 7.00 | 60.80 | 200.00 | 223.50 | 11.00 | 63.00 | 60.00 | 180.00 | C | 9.47 |
| SOF45WG D200-12-60-R26 | 204.10 | 223.50 | 218.80 | 7.00 | 60.80 | 200.00 | 223.50 | 11.00 | 63.00 | 60.00 | 180.00 | C | 9.20 |
| SOF45WG D250-12-60-R26 | 254.10 | 273.30 | 268.80 | 7.00 | 60.80 | 250.00 | 273.30 | 11.00 | 63.00 | 60.00 | 180.00 | C | 12.68 |
| SOF45WG D250-14-60-R26 | 254.10 | 273.30 | 268.80 | 7.00 | 60.80 | 250.00 | 273.30 | 11.00 | 63.00 | 60.00 | 180.00 | C | 12.44 |
| SOF45WG D315-14-60-R26 | 319.10 | 338.50 | 333.80 | 7.00 | 77.80 | 315.00 | 338.50 | 11.00 | 80.00 | 60.00 | 230.00 | C | 22.43 |
| SOF45WG D315-16-60-R26 | 319.10 | 338.50 | 333.80 | 7.00 | 77.80 | 315.00 | 338.50 | 11.00 | 80.00 | 60.00 | 230.00 | C | 22.22 |
- For user guide, see pages 542-547
(1) Cutting diameter maximum
For inserts, see pages: ONMU 1008 (509) S845 SNMU 2608 (502)
Spare Parts
Designation
SOF45WG-R26 TSOF 26-N SR M3.5X0.6-6.5 T10 LW CL-13 INJ SR UNC 5/16-18X1 L/R BLD IP25/S7 SW6-T
