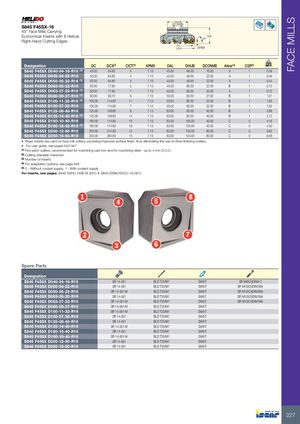

| S845 F45SX-16 | DCON DHU | MS B | ||||||||
| 45° Face Mills Carrying | ||||||||||
| Economical Inserts with 8 Helical Right-Hand Cutting Edges | DC DC | X | APMX OAL 45° | |||||||
| Designation | DC | DCX(2) | CICT(3) | APMX | OAL | DHUB | DCONMS | Arbor(4) | CSP( | 5) kg |
| S845 F45SX D040-04-16-R16(1) | 40.00 | 54.80 | 4 | 7.15 | 45.00 | 48.00 | 16.00 | A | 1 | 0.39 |
| S845 F45SX D050-04-22-R16 | 50.00 | 64.80 | 4 | 7.15 | 45.00 | 48.00 | 22.00 | A | 1 | 0.46 |
| S845 F45SX D050-05-22-R16(1) | 50.00 | 64.80 | 5 | 7.15 | 45.00 | 48.00 | 22.00 | A | 1 | 0.44 |
| S845 F45SX D063-05-22-R16 | 63.00 | 77.80 | 5 | 7.15 | 45.00 | 60.00 | 22.00 | B | 1 | 0.72 |
| S845 F45SX D063-07-22-R16(1) | 63.00 | 77.90 | 7 | 7.15 | 45.00 | 60.00 | 22.00 | A | 1 | 0.72 |
| S845 F45SX D080-09-27-R16(1) | 80.00 | 93.10 | 9 | 7.15 | 50.00 | 63.00 | 27.00 | B | 1 | 1.01 |
| S845 F45SX D100-11-32-R16(1) | 100.00 | 114.60 | 11 | 7.15 | 50.00 | 80.00 | 32.00 | B | 1 | 1.65 |
| S845 F45SX D100-07-32-R16 | 100.00 | 114.80 | 7 | 7.15 | 50.00 | 80.00 | 32.00 | B | 1 | 1.62 |
| S845 F45SX D125-08-40-R16 | 125.00 | 139.80 | 8 | 7.15 | 63.00 | 82.00 | 40.00 | B | 1 | 2.68 |
| S845 F45SX D125-14-40-R16(1) | 125.00 | 139.80 | 14 | 7.15 | 63.00 | 82.00 | 40.00 | B | 1 | 2.72 |
| S845 F45SX D160-10-40-R16 | 160.00 | 174.80 | 10 | 7.15 | 63.00 | 105.00 | 40.00 | C | 0 | 4.16 |
| S845 F45SX D160-18-40-R16(1) | 160.00 | 174.80 | 18 | 7.15 | 63.00 | 105.00 | 40.00 | C | 0 | 4.30 |
| S845 F45SX D200-12-60-R16 | 200.00 | 214.80 | 12 | 7.15 | 63.00 | 135.00 | 60.00 | C | 0 | 5.82 |
| S845 F45SX D250-15-60-R16 | 250.00 | 264.80 | 15 | 7.15 | 63.00 | 144.00 | 60.00 | C | 0 | 8.58 |
- Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters.
- For user guide, see pages 542-547
(1) Fine pitch cutters, recommended for machining cast iron and for machining steel - up to 4 mm D.O.C. (2) Cutting diameter maximum (3) Number of inserts (4) For adaptation options, see page 548 (5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: S845 SXHU 1606-W (501) S845 SXMU/SXCU-16 (501)
Spare Parts
| Designation | ||||
| S845 F45SX D040-04-16-R16 | SR 14-591 | BLD T20/M7 | SW6-T | SR M8X25DIN912 |
| S845 F45SX D050-04-22-R16 | SR 14-591 | BLD T20/M7 | SW6-T | SR M10X25DIN7984 |
| S845 F45SX D050-05-22-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | SR M10X25DIN7984 |
| S845 F45SX D063-05-22-R16 | SR 14-591 | BLD T20/M7 | SW6-T | SR M10X25DIN7984 |
| S845 F45SX D063-07-22-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | SR M10X25DIN7984 |
| S845 F45SX D080-09-27-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | |
| S845 F45SX D100-11-32-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | |
| S845 F45SX D100-07-32-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D125-08-40-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D125-14-40-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | |
| S845 F45SX D160-10-40-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D160-18-40-R16 | SR 14-591-M | BLD T20/M7 | SW6-T | |
| S845 F45SX D200-12-60-R16 | SR 14-591 | BLD T20/M7 | SW6-T | |
| S845 F45SX D250-15-60-R16 | SR 14-591 | BLD T20/M7 | SW6-T |
