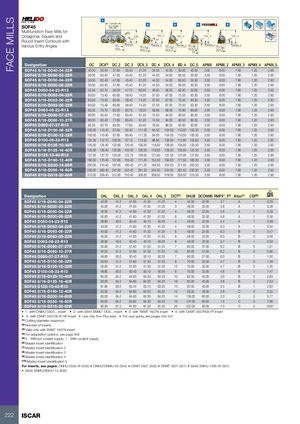

| OF45 | D 1 | CONMS DHUB | 2 | 3 | 4 | 5 | ||||||||
| ultifunction Face Mills for | BD | Rd° | ||||||||||||
| ctagonal, Square and ound Insert Contours with rious Entry Angles | DCX DC | O APMX 44˚ | AL DC2 DCX2 | OAL APMX2 45˚ | 2 DCX3 DC3 | OAL3 APMX3 | D4 DC4 DCX4 | 15˚ OAL4 APMX | DC5 DCX5 4 | 44˚ OAL5 APMX5 | ||||
| Designation | DC | DCX(1) | DC2 | DC3 | DCX3 | DC4 | DCX4 | BD4 | DC5 | APMX | APMX | 2 APMX | 3 APMX4 | APMX5 |
| SOF45 8/16-D040-04-22R | 40.00 | 50.40 | 37.65 | 35.40 | 51.20 | 34.50 | 44.00 | 50.50 | 40.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D050-03-22R | 50.00 | 60.40 | 47.65 | 45.40 | 61.20 | 44.50 | 54.00 | 60.50 | 50.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D050-04-22R | 50.00 | 60.40 | 47.65 | 45.40 | 61.20 | 44.50 | 54.00 | 60.50 | 50.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D050-06-22R | 50.00 | 60.40 | 47.65 | 45.40 | 61.20 | 44.50 | 54.00 | 60.50 | 50.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 D050-04-22-R13 | 52.35 | 62.70 | 50.00 | 47.75 | 63.55 | 46.95 | 56.35 | 62.90 | 52.65 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D063-04-22R | 63.00 | 73.40 | 60.65 | 58.40 | 74.20 | 57.50 | 67.00 | 73.50 | 63.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D063-06-22R | 63.00 | 73.40 | 60.65 | 58.40 | 74.20 | 57.50 | 67.00 | 73.50 | 63.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D063-08-22R | 63.00 | 73.40 | 60.65 | 58.40 | 74.20 | 57.50 | 67.00 | 73.50 | 63.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 D063-06-22-R13 | 65.35 | 75.70 | 63.00 | 60.75 | 76.55 | 59.95 | 69.35 | 75.90 | 63.65 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D080-07-27R | 80.00 | 90.40 | 77.65 | 65.40 | 91.20 | 74.50 | 84.00 | 90.50 | 80.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D080-10-27R | 80.00 | 90.40 | 77.65 | 65.40 | 91.20 | 74.50 | 84.00 | 90.50 | 80.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 D080-07-27-R13 | 82.35 | 92.70 | 80.00 | 77.60 | 93.40 | 76.95 | 86.35 | 92.90 | 82.65 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D100-08-32R | 100.00 | 110.40 | 97.65 | 95.40 | 111.20 | 94.50 | 104.00 | 110.50 | 100.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D100-12-32R | 100.00 | 110.40 | 97.65 | 95.40 | 111.20 | 94.50 | 104.00 | 110.50 | 100.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 D100-08-32-R13 | 102.35 | 112.70 | 100.00 | 97.75 | 113.55 | 96.95 | 106.35 | 112.90 | 102.65 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D125-10-40R | 125.00 | 135.40 | 122.65 | 120.40 | 136.20 | 119.50 | 129.00 | 135.50 | 125.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D125-16-40R | 125.00 | 135.40 | 122.65 | 120.40 | 136.20 | 119.50 | 129.00 | 135.50 | 125.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 D125-10-40-R13 | 127.35 | 137.70 | 125.00 | 122.75 | 138.55 | 121.95 | 131.35 | 137.90 | 127.65 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D160-12-40R | 160.00 | 170.40 | 157.65 | 155.40 | 171.20 | 154.50 | 164.00 | 171.50 | 160.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D200-14-60R | 200.00 | 210.40 | 197.65 | 195.40 | 211.20 | 194.50 | 204.00 | 211.50 | 200.50 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D250-16-60R | 250.00 | 260.40 | 247.65 | 245.40 | 261.20 | 244.50 | 254.00 | 261.50 | 250.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| SOF45 8/16-D315-20-60R | 315.00 | 329.40 | 312.65 | 310.40 | 326.20 | 309.50 | 319.00 | 326.50 | 315.30 | 3.50 | 6.00 | 7.90 | 1.20 | 2.90 |
| Designation | OAL | OAL2 | OAL3 | OAL4 | OAL5 | CICT(2) | DHUB | DCONMS | RMPX°3(3) | Arbor(4) | CSP(5) | kg |
| SOF45 8/16-D040-04-22R | 40.00 | 41.2 | 41.60 | 41.30 | 41.20 | 4 | 45.00 | 22.00 | 3.7 | A | 1 | 0.29 |
| SOF45 8/16-D050-03-22R | 40.00 | 41.2 | 41.60 | 41.30 | 41.20 | 3 | 48.00 | 22.00 | 5.6 | A | 1 | 0.38 |
| SOF45 8/16-D050-04-22R | 40.00 | 41.2 | 41.60 | 41.30 | 41.20 | 4 | 48.00 | 22.00 | 5.6 | A | 1 | 0.39 |
| SOF45 8/16-D050-06-22R | 40.00 | 41.2 | 41.60 | 41.30 | 41.20 | 6 | 48.00 | 22.00 | 5.6 | A | 1 | 0.38 |
| SOF45 D050-04-22-R13 | 38.80 | 40.0 | 40.40 | 40.10 | 40.20 | 4 | 48.00 | 22.00 | 5.4 | A | 1 | 0.38 |
| SOF45 8/16-D063-04-22R | 40.00 | 41.2 | 41.60 | 41.30 | 41.20 | 4 | 48.00 | 22.00 | 6.3 | A | 1 | 0.54 |
| SOF45 8/16-D063-06-22R | 40.00 | 41.2 | 41.60 | 41.30 | 41.20 | 6 | 48.00 | 22.00 | 6.3 | B | 0 | 0.47 |
| SOF45 8/16-D063-08-22R | 40.00 | 41.2 | 41.60 | 41.30 | 41.20 | 8 | 48.00 | 22.00 | 6.3 | B | 0 | 0.46 |
| SOF45 D063-06-22-R13 | 38.80 | 40.0 | 40.40 | 40.10 | 40.20 | 6 | 48.00 | 22.00 | 5.7 | B | 1 | 0.50 |
| SOF45 8/16-D080-07-27R | 50.00 | 51.2 | 51.60 | 51.30 | 51.20 | 7 | 60.00 | 27.00 | 6.2 | B | 0 | 1.01 |
| SOF45 8/16-D080-10-27R | 50.00 | 51.2 | 51.60 | 51.30 | 51.20 | 10 | 60.00 | 27.00 | 6.2 | B | 0 | 0.96 |
| SOF45 D080-07-27-R13 | 48.80 | 50.0 | 50.40 | 50.10 | 50.20 | 7 | 60.00 | 27.00 | 6.0 | B | 1 | 1.00 |
| SOF45 8/16-D100-08-32R | 50.00 | 51.2 | 51.60 | 51.30 | 51.20 | 8 | 70.00 | 32.00 | 4.7 | B | 0 | 1.39 |
| SOF45 8/16-D100-12-32R | 50.00 | 51.2 | 51.60 | 51.30 | 51.20 | 12 | 70.00 | 32.00 | 4.7 | B | 0 | 1.35 |
| SOF45 D100-08-32-R13 | 48.80 | 50.0 | 50.40 | 50.10 | 50.00 | 8 | 70.00 | 32.00 | 4.6 | B | 1 | 1.47 |
| SOF45 8/16-D125-10-40R | 63.00 | 64.2 | 64.60 | 64.30 | 64.20 | 10 | 82.00 | 40.00 | 3.6 | B | 0 | 2.63 |
| SOF45 8/16-D125-16-40R | 63.00 | 64.2 | 64.60 | 64.30 | 64.20 | 16 | 82.00 | 40.00 | 3.6 | B | 0 | 2.53 |
| SOF45 D125-10-40-R13 | 61.80 | 63.0 | 63.40 | 63.10 | 63.20 | 10 | 82.00 | 40.00 | 3.5 | B | 1 | 2.63 |
| SOF45 8/16-D160-12-40R | 63.00 | 64.2 | 64.60 | 64.30 | 64.20 | 12 | 92.00 | 40.00 | 2.6 | C | 0 | 3.35 |
| SOF45 8/16-D200-14-60R | 63.00 | 64.2 | 64.60 | 64.30 | 64.20 | 14 | 135.00 | 60.00 | 2.0 | C | 0 | 5.77 |
| SOF45 8/16-D250-16-60R | 63.00 | 64.2 | 64.60 | 64.30 | 64.20 | 16 | 137.00 | 60.00 | 1.5 | C | 0 | 7.98 |
| SOF45 8/16-D315-20-60R | 80.00 | 81.2 | 81.60 | 81.30 | 81.20 | 20 | 222.00 | 60.00 | 1.0 | C | 0 | 18.97 |
- 1- with ONMU 0505... insert
- 2- with S845 SNMU 1305... insert
- 3- with RXMT 1607N insert
- 4- with OXMT 0507R08-FF insert
- 5- with OXMT 050705-R-HP insert
- Use only Torx Plus keys
- For user guide, see pages 542-547
(1) Cutting diameter maximum (2) Number of inserts (3) Valid only with RXMT 1607N insert (4) For adaptation options, see page 548 (5) 0 - Without coolant supply, 1 - With coolant supply (6) Master insert identification (7) Master insert identification 2 (8) Master insert identification 3 (9) Master insert identification 4 (10) Master insert identification 5
For inserts, see pages: ONHU 0505-W (505) ONHU/ONMU-05 (504) OXMT 0507 (505) RXMT 1607 (527) S845 SNHU 1305-W (501)
- S845 SNMU/SNHU-13 (500)
