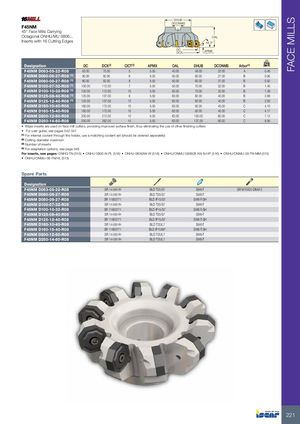

| 45NM | DCON DHU | MS B | |||||||
| 5° Face Mills Carrying ctagonal ONHU/MU 0806... serts with 16 Cutting Edges | DC DC | X | OAL APMX 44.3° | ||||||
| Designation | DC | DCX(2) | CICT(3) | APMX | OAL | DHUB | DCONMS | Arbor(4) | kg |
| F45NM D063-05-22-R08 | 63.00 | 75.00 | 5 | 5.50 | 40.00 | 48.00 | 22.00 | A | 0.46 |
| F45NM D080-06-27-R08(1) | 80.00 | 92.00 | 6 | 5.50 | 50.00 | 60.00 | 27.00 | B | 0.95 |
| F45NM D080-08-27-R08(1) | 80.00 | 92.00 | 8 | 5.50 | 50.00 | 60.00 | 27.00 | B | 0.92 |
| F45NM D100-07-32-R08(1) | 100.00 | 112.00 | 7 | 5.50 | 50.00 | 70.00 | 32.00 | B | 1.40 |
| F45NM D100-10-32-R08(1) | 100.00 | 112.00 | 10 | 5.50 | 50.00 | 70.00 | 32.00 | B | 1.39 |
| F45NM D125-08-40-R08(1) | 125.00 | 137.00 | 8 | 5.50 | 63.00 | 82.00 | 40.00 | B | 2.68 |
| F45NM D125-12-40-R08(1) | 125.00 | 137.00 | 12 | 5.50 | 63.00 | 82.00 | 40.00 | B | 2.63 |
| F45NM D160-10-40-R08 | 160.00 | 172.00 | 10 | 5.50 | 63.00 | 92.00 | 40.00 | C | 4.10 |
| F45NM D160-15-40-R08 | 160.00 | 172.00 | 15 | 5.50 | 63.00 | 92.00 | 40.00 | C | 4.17 |
| F45NM D200-12-60-R08 | 200.00 | 212.00 | 12 | 5.50 | 63.00 | 150.00 | 60.00 | C | 7.12 |
| F45NM D250-14-60-R08 | 250.00 | 262.00 | 14 | 5.50 | 63.00 | 137.00 | 60.00 | C | 8.95 |
- Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters
- For user guide, see pages 542-547
(1) For internal coolant through the holder, use a matching coolant set (should be ordered separately) (2) Cutting diameter maximum (3) Number of inserts (4) For adaptation options, see page 548
For inserts, see pages: ONHQ-TN (515) ONHU 0806-N-PL (516) ONHU 0806AN-W (516) ONHU/ONMU 080608 AN-N-HP (516) ONHU/ONMU-08-TN-MM (515)
- ONHU/ONMU-08-TN/HL (515)
Spare Parts
| Designation | ||||
| F45NM D063-05-22-R08 | SR 14-591/H | BLD T20/S7 | SW6-T | SR M10X25 DIN912 |
| F45NM D080-06-27-R08 | SR 14-591/H | BLD T20/S7 | SW6-T | |
| F45NM D080-08-27-R08 | SR 11800771 | BLD IP15/S7 | SW6-T-SH | |
| F45NM D100-07-32-R08 | SR 14-591/H | BLD T20/S7 | SW6-T | |
| F45NM D100-10-32-R08 | SR 11800771 | BLD IP15/S7 | SW6-T-SH | |
| F45NM D125-08-40-R08 | SR 14-591/H | BLD T20/S7 | SW6-T | |
| F45NM D125-12-40-R08 | SR 11800771 | BLD IP15/S7 | SW6-T-SH | |
| F45NM D160-10-40-R08 | SR 14-591/H | BLD T20/L7 | SW6-T | |
| F45NM D160-15-40-R08 | SR 11800771 | BLD IP15/M7 | SW6-T-SH | |
| F45NM D200-12-60-R08 | SR 14-591/H | BLD T20/L7 | SW6-T | |
| F45NM D250-14-60-R08 | SR 14-591/H | BLD T20/L7 | SW6-T |
