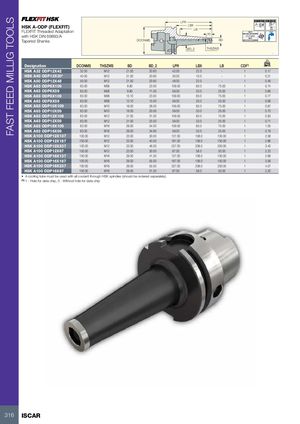

FAST FEED MILLIG TOOLS LPR A 0.003 A 58-60 HRc HSK A-ODP (FLEXFIT) LBX FLEXFIT Threaded Adaptation LB G2.5 with HSK DIN 69893/A 10 HSK A63=20,000RPMU<1.0 gmm G6.3 Tapered Shanks DCONMS BD HSK A100=12,000RPM BD_2 THSZWS . Designation DCONMS THSZWS BD BD_2 LPR LBX LB CDI(1) kg HSK A32 ODP12X42 32.00 M12 21.00 20.60 42.00 22.0 - 1 0.17 HSK A40 ODP12X30* 40.00 M12 21.00 20.60 30.00 10.0 - 1 0.21 HSK A50 ODP12X48 50.00 M12 21.00 20.60 48.00 22.0 - 1 0.46 HSK A63 ODP6X109 63.00 M06 9.80 23.00 109.00 83.0 75.00 1 0.74 HSK A63 ODP6X59 63.00 M06 9.80 11.50 59.00 33.0 25.00 1 0.66 HSK A63 ODP8X109 63.00 M08 13.10 23.00 109.00 83.0 75.00 1 0.77 HSK A63 ODP8X59 63.00 M08 13.10 15.00 59.00 33.0 25.00 1 0.68 HSK A63 ODP10X109 63.00 M10 18.00 28.00 109.00 83.0 75.00 1 0.87 HSK A63 ODP10X59 63.00 M10 18.00 20.00 59.00 33.0 25.00 1 0.70 HSK A63 ODP12X109 63.00 M12 21.00 31.00 109.00 83.0 75.00 1 0.93 HSK A63 ODP12X59 63.00 M12 21.00 23.50 59.00 33.0 25.00 1 0.71 HSK A63 ODP16X109 63.00 M16 29.00 34.00 109.00 83.0 75.00 1 1.05 HSK A63 ODP16X59 63.00 M16 29.00 34.60 59.00 33.0 25.00 1 0.79 HSK A100 ODP12X137 100.00 M12 23.00 30.00 137.00 108.0 100.00 1 2.58 HSK A100 ODP12X187 100.00 M12 23.00 40.00 187.00 158.0 150.00 1 2.86 HSK A100 ODP12X237 100.00 M12 23.00 46.00 237.00 208.0 200.00 1 3.40 HSK A100 ODP12X87 100.00 M12 23.00 30.00 87.00 58.0 50.00 1 2.23 HSK A100 ODP16X137 100.00 M16 29.00 41.50 137.00 108.0 100.00 1 2.68 HSK A100 ODP16X187 100.00 M16 29.00 55.00 187.00 158.0 150.00 1 3.58 HSK A100 ODP16X237 100.00 M16 29.00 55.00 237.00 208.0 200.00 1 4.07 HSK A100 ODP16X87 100.00 M16 29.00 31.50 87.00 58.0 50.00 1 2.20 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). (1) 1 - Hole for data chip, 0 - Without hole for data chip 316 ISCAR
