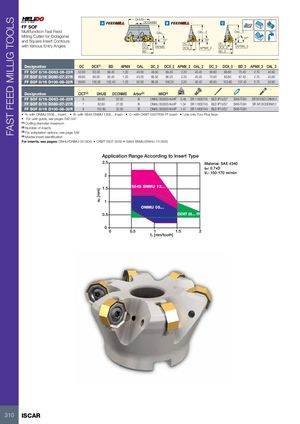

FAST FEED MILLIG TOOLS ap [mm] DHUB A DCONMS B C FF SOF Multifunction Fast Feed OAL OAL_2 OAL_3 Milling Cutter for Octagonaland Square Insert Contours 15° 16° 31º with Various Entry Angles DC DC_2 DC_3DCXAPMXDCX_2APMX_2DCX_3APMX_3 BD BD_3 Designation DC DCX(1) BD APMX OAL DC_2 DCX_2 APMX_2 OAL_2 DC_3 DCX_3 BD_3 APMX_3 OAL_3 FF SOF 8/16-D063-06-22R 52.60 63.00 68.40 1.20 40.00 49.50 69.20 2.20 40.40 56.60 66.80 70.40 2.70 40.90 FF SOF 8/16 D080-07-27R 69.60 80.00 85.40 1.20 40.00 66.50 86.20 2.20 40.40 73.60 83.80 87.40 2.70 40.90 FF SOF 8/16 D100-08-32R 89.60 100.00 105.40 1.20 50.00 86.50 106.20 2.20 50.40 93.60 103.80 107.40 2.70 50.90 Designation CICT(2) DHUB DCONMS Arbor(3) MIID(4) kg FF SOF 8/16-D063-06-22R 6 65.60 22.00 B ONHU 050500-N-HP 0.48 SR 11800745 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 FF SOF 8/16 D080-07-27R 7 82.60 27.00 B ONHU 050500-N-HP 1.04 SR 11800745 BLD IP15/S7 SW6-T-SH SR M12X30DIN912 FF SOF 8/16 D100-08-32R 8 102.60 32.00 B ONHU 050500-N-HP 1.47 SR 11800745 BLD IP15/S7 SW6-T-SH • A- with ONMU 0505... insert • B- with S845 SNMU 1305... insert • C- with OXMT 0507R08-FF insert • Use only Torx Plus keys • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Number of inserts (3) For adaptation options, see page 548 (4) Master insert identification For inserts, see pages: ONHU/ONMU-05 (504) • OXMT 0507 (505) • S845 SNMU/SNHU-13 (500) Application Range According to Insert Type 2.5 Material: SAE 4340 ae: 0.7xD 2 Vc: 150-170 m/min 1.5 S845 SNMU 13... 1 ONMU 05... 0.5 OXMT 05... FF 0 0 0.5 1 1.5 2 fz [mm/tooth] 310 ISCAR
