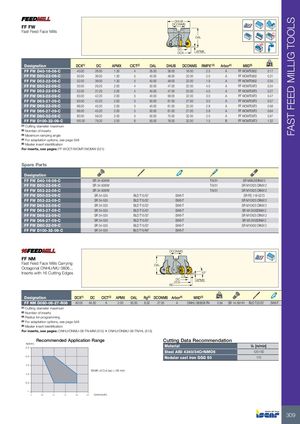

Каталог Iscar торцевые фрезы 2022 - страница 125

FAST FEED MILLIG TOOLS DHUB FF FW DCONMS Fast Feed Face Mills Rd° OAL DCDCX APMX Designation DCX(1) DC APMX CICT(2) OAL DHUB DCONMS RMPX°(3) Arbor(4) MIID(5) kg FF FW D40-16-06-C 40.00 26.00 1.30 4 35.00 38.00 16.00 2.5 A FF WOMT0602 0.17 FF FW D50-22-06-C 50.00 36.00 1.30 5 40.00 48.00 22.00 2.0 A FF WOMT0602 0.31 FF FW D52-22-06-C 52.00 38.00 1.30 5 40.00 48.00 22.00 1.9 A FF WOMT0602 0.34 FF FW D50-22-09-C 50.00 29.20 2.00 4 50.00 47.00 22.00 4.0 A FF WOMT09T3 0.34 FF FW D52-22-09-C 52.00 31.20 2.00 4 40.00 47.00 22.00 4.0 A FF WOMT09T3 0.27 FF FW D63-22-09-C 63.00 42.20 2.00 5 40.00 58.00 22.00 3.0 A FF WOMT09T3 0.47 FF FW D63-27-09-C 63.00 42.20 2.00 5 50.00 61.00 27.00 3.0 A FF WOMT09T3 0.57 FF FW D66-22-09-C 66.00 45.20 2.00 5 40.00 61.00 22.00 2.8 A FF WOMT09T3 0.56 FF FW D66-27-09-C 66.00 45.20 2.00 5 50.00 61.00 27.00 2.8 A FF WOMT09T3 0.64 FF FW D80-32-09-C 80.00 59.20 2.00 5 50.00 75.00 32.00 2.0 A FF WOMT09T3 0.97 FF FW D100-32-09-C 100.00 79.20 2.00 6 50.00 78.00 32.00 1.5 B FF WOMT09T3 1.32 (1) Cutting diameter maximum (2) Number of inserts (3) Maximum ramping angle (4) For adaptation options, see page 548 (5) Master insert identification For inserts, see pages: FF WOCT/WOMT/WOMW (521) Spare Parts Designation FF FW D40-16-06-C SR 34-506/M T-9/51 SR M8X25DIN912 FF FW D50-22-06-C SR 34-506/M T-9/51 SR M10X25 DIN912 FF FW D52-22-06-C SR 34-506/M T-9/51 SR M10X25 DIN912 FF FW D50-22-09-C SR 34-535 BLD T15/S7 SW6-T SR PS 118-0273 FF FW D52-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912 FF FW D63-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912 FF FW D63-27-09-C SR 34-535 BLD T15/S7 SW6-T SR M12X30DIN912 FF FW D66-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912 FF FW D66-27-09-C SR 34-535 BLD T15/S7 SW6-T SR M12X30DIN912 FF FW D80-32-09-C SR 34-535 BLD T15/S7 SW6-T SR M16X30 DIN912 FF FW D100-32-09-C SR 34-535 BLD T15/M7 SW6-T DCONMS FF NM Fast Feed Face Mills Carrying OAL Octagonal ONHU/MU 0806... Inserts with 16 Cutting Edges 15° 7.5 DC APMX DCX BD Designation DCX(1) DC CICT(2) APMX OAL Rg(3) DCONMS Arbor(4) MIID(5) kg FF NM D080-06-27-R08 80.00 64.50 6 2.00 50.00 8.00 27.00 A ONHU 080608-TN 0.84 SR 14-591/H BLD T20/S7 SW6-T (1) Cutting diameter maximum (2) Number of inserts (3) Radius for programming (4) For adaptation options, see page 548 (5) Master insert identification For inserts, see pages: ONHU/ONMU-08-TN-MM (515) • ONHU/ONMU-08-TN/HL (515) Recommended Application Range Cutting Data Recommendation Ap[mm] 2.5 Material Vc [m/min] Steel AISI 4340/34CrNiMO6 120-150 2.0 Nodular cast iron GGG 50 170 1.5 Width of Cut (ae) = 56 mm 1.0 0.5 0 0 0.5 1.0 1.5 2.0 2.5 fz[mm/tooth] 309
