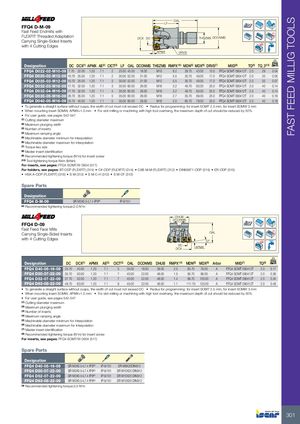

Каталог Iscar торцевые фрезы 2022 - страница 117

FAST FEED MILLIG TOOLS OAL LF FFQ4 D-M-09 Fast Feed Endmills with Rd° FLEXFIT Threaded Adaptation DCX DC THSZMS DCONMS Carrying Single-Sided Inserts with 4 Cutting Edges APMX DRVS Designation DC DCX(1) APMX AE(2) CICT(3) LF OAL DCONMS THSZMS RMPX°(4) MDN(5) MDX(6) DRVS(7) MIID(8) TQ(9) TQ_3(10) kg FFQ4 D022-02-M10-09 7.70 22.00 1.20 7.1 2 25.00 45.00 18.00 M10 8.2 29.70 43.00 15.0 FFQ4 SOMT 090412T 2.0 29 0.04 FFQ4 D025-02-M12-09 10.70 25.00 1.20 7.1 2 30.00 52.00 21.00 M12 5.5 35.70 49.00 17.0 FFQ4 SOMT 090412T 2.0 33 0.05 FFQ4 D025-03-M12-09 10.70 25.00 1.20 7.1 3 30.00 52.00 21.00 M12 5.5 35.70 49.00 17.0 FFQ4 SOMT 090412T 2.0 33 0.07 FFQ4 D032-03-M16-09 17.70 32.00 1.20 7.1 3 35.00 60.00 29.00 M16 3.2 49.70 63.00 25.0 FFQ4 SOMT 090412T 2.0 40 0.14 FFQ4 D032-04-M16-09 17.70 32.00 1.20 7.1 4 35.00 60.00 29.00 M16 3.2 49.70 63.00 25.0 FFQ4 SOMT 090412T 2.0 40 0.14 FFQ4 D035-05-M16-09 20.70 35.00 1.20 7.1 5 35.00 60.00 29.00 M16 2.7 55.70 69.00 25.0 FFQ4 SOMT 090412T 2.0 40 0.16 FFQ4 D040-05-M16-09 25.70 40.00 1.20 7.1 5 35.00 60.00 29.00 M16 2.0 65.70 79.00 25.0 FFQ4 SOMT 090412T 2.0 40 0.18 • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 2.5 mm, for insert SOMW 3 mm • When mounting insert SOMW, APMX=1.0 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Torque key size (8) Master insert identification (9) Recommended tightening torque (N*m) for insert screw (10) Tool tightening torque Nxm (lbfxin) For inserts, see pages: FFQ4 SOMT/W 0904 (517) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) Spare Parts Designation FFQ4 D-M-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 (a) Recommended tightening torque:2.0 N*m DHUB DCONMS FFQ4 D-09 Fast Feed Face MillsCarrying Single-Sided Inserts OAL Rd° with 4 Cutting Edges 12° DCDCX APMX Designation DC DCX(1) APMX AE(2) CICT(3) OAL DCONMS DHUB RMPX°(4) MDN(5) MDX(6) Arbor MIID(7) TQ(8) kg FFQ4 D40-05-16-09 25.70 40.00 1.20 7.1 5 35.00 16.00 38.00 2.0 65.70 79.00 A FFQ4 SOMT 090412T 2.0 0.17 FFQ4 D50-07-22-09 35.70 50.00 1.20 7.1 7 40.00 22.00 48.00 1.5 85.70 99.00 A FFQ4 SOMT 090412T 2.0 0.36 FFQ4 D52-07-22-09 37.70 52.00 1.20 7.1 7 40.00 22.00 48.00 1.4 89.70 103.00 A FFQ4 SOMT 090412T 2.0 0.34 FFQ4 D63-08-22-09 48.70 63.00 1.20 7.1 8 45.00 22.00 48.00 1.1 111.70 125.00 A FFQ4 SOMT 090412T 2.0 0.49 • To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 2.5 mm, for insert SOMW 3 mm • When mounting insert SOMW, APMX=1.0 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% • For user guide, see pages 542-547 (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Master insert identification (8) Recommended tightening torque (N*m) for insert screw For inserts, see pages: FFQ4 SOMT/W 0904 (517) Spare Parts Designation FFQ4 D40-05-16-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M8X25DIN912 FFQ4 D50-07-22-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M10X25 DIN912 FFQ4 D52-07-22-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M10X25 DIN912 FFQ4 D63-08-22-09 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M10X30 DIN912 (a) Recommended tightening torque:2.0 N*m 301
