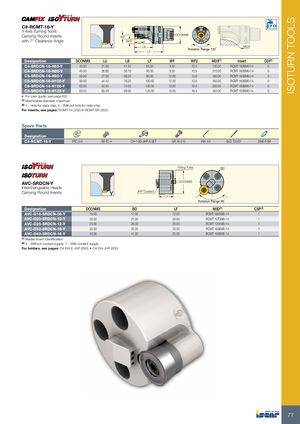

C#-RCMT-16-Y Y-Axis Turning Tools Carrying Round Inserts with 7° Clearance Angle			WF2 WF	LB LF LU	DCO	NMS Rotation Ra	nge 120˚	MDX	70 Bar Max
Designation	DCONMS	LU	LB	LF	WF	WF2	MDX(1)	Insert	CDI(2)
C4-SRDCN-16-H65-Y	40.00	21.90	41.50	65.00	9.50	10.5	130.00	RCMT 1606M0-14	0
C4-SRDCN-16-H80-Y	40.00	36.80	56.70	80.00	9.50	10.5	210.00	RCMT 1606M0-14	0
C5-SRDCN-16-H80-Y	50.00	27.00	56.20	80.00	12.00	13.0	180.00	RCMT 1606M0-14	0
C5-SRDCN-16-H100-Y	50.00	44.40	76.20	100.00	12.00	13.0	350.00	RCMT 1606M0-14	0
C6-SRDCN-16-H100-Y	63.00	40.50	74.00	100.00	15.00	16.5	260.00	RCMT 1606M0-14	0
C6-SRDCN-16-H125-Y	63.00	65.50	98.90	125.00	15.00	16.5	450.00	RCMT 1606M0-14	0

(1) Machinable diameter maximum (2) 1 - Hole for data chip, 0 - Without hole for data chip

For inserts, see pages: RCMT-14 (202) RCMT-SR (202)

Spare Parts
Designation
C#-RCMT-16-Y	TRC 5-0	SR TC-4	CH-1.9D-JHP-A SET	SR 16-212	HW 3.0	BLD T20/S7 SW6-T-SH

AVC-SRDCN-Y Interchangeable Heads Carrying Round Inserts		JHP Coolant	Fitting Tube DCONMS LF	BD Rotation Range 90˚
Designation	DCONMS	BD	LF	MIID(1)	CSP(2)
AVC-D16-SRDCN-08-Y	16.00	17.00	12.00	RCMT 0803M0-14	1
AVC-D20-SRDCN-10-Y	20.00	21.00	20.00	RCMT 10T3M0-14	1
AVC-D25-SRDCN-12-Y	25.00	26.00	20.00	RCMT 1204M0-14	1
AVC-D32-SRDCN-16-Y	32.00	33.00	23.00	RCMT 1606M0-14	1
AVC-D40-SRDCN-16-Y	40.00	41.00	25.00	RCMT 1606M0-14	1

(1) Master insert identification (2) 0 - Without coolant supply, 1 - With coolant supply

For holders, see pages: C#-SH-E-JHP (630) C#-SH-JHP (630)
