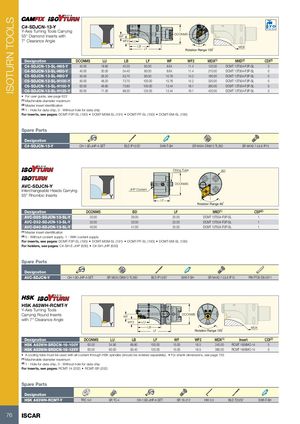

| C#-SDJCN-13-Y Y-Axis Turning Tools Carrying 55° Diamond Inserts with 7° Clearance Angle | LF WF2 LU LB WF | DC | ONMS Rotation Ra | nge 120˚ | MDX | 70 Bar Max | ||
| Designation | DCONMS | LU | LB LF | WF | WF2 | MDX(1) | MIID(2) | CDI(3) |
| C4-SDJCN-13-SL-H65-Y | 40.00 | 18.80 | 40.20 65.00 | 8.64 | 11.4 | 120.00 | DCMT 13T504-F3P-SL | 0 |
| C4-SDJCN-13-SL-H80-Y | 40.00 | 30.30 | 54.40 80.00 | 8.64 | 11.4 | 210.00 | DCMT 13T504-F3P-SL | 0 |
| C5-SDJCN-13-SL-H80-Y | 50.00 | 28.20 | 53.70 80.00 | 10.76 | 14.2 | 180.00 | DCMT 13T504-F3P-SL | 0 |
| C5-SDJCN-13-SL-H100-Y | 50.00 | 48.20 | 73.70 100.00 | 10.76 | 14.2 | 320.00 | DCMT 13T504-F3P-SL | 0 |
| C6-SDJCN-13-SL-H100-Y | 63.00 | 46.80 | 73.80 100.00 | 13.44 | 18.1 | 260.00 | DCMT 13T504-F3P-SL | 0 |
| C6-SDJCN-13-SL-H125-Y | 63.00 | 71.30 | 98.30 125.00 | 13.44 | 18.1 | 420.00 | DCMT 13T504-F3P-SL | 0 |
- For user guide, see page 622
(1) Machinable diameter maximum (2) Master insert identification (3) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: DCMT-F3P-SL (190) DCMT-M3M-SL (191) DCMT-PF-SL (193) DCMT-SM-SL (193)
Spare Parts
| Designation | ||||
| C#-SDJCN-13-Y | CH-1.9D-JHP-A SET | BLD IP15/S7 | SW6-T-SH | SR M4X4 DIN913 TL360 SR M4X0.7-L9.6 IP15 |
Fitting Tube BD
AVC-SDJCN-Y DCONMS Interchangeable Heads Carrying JHP Coolant
55° Rhombic Inserts
LF Rotation Range 60˚
| Designation | DCONMS | BD | LF | MIID(1) | CSP(2) | |
| AVC-D25-SDJCN-13-SL-Y | 25.00 | 26.00 | 20.00 | DCMT 13T504-F3P-SL | 1 | |
| AVC-D32-SDJCN-13-SL-Y | 32.00 | 33.00 | 23.00 | DCMT 13T504-F3P-SL | 1 | |
| AVC-D40-SDJCN-13-SL-Y | 40.00 | 41.00 | 25.00 | DCMT 13T504-F3P-SL | 1 |
(1) Master insert identification (2) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: DCMT-F3P-SL (190) DCMT-M3M-SL (191) DCMT-PF-SL (193) DCMT-SM-SL (193) For holders, see pages: C#-SH-E-JHP (630) C#-SH-JHP (630)
Spare Parts
| Designation | |||
| AVC-SDJCN-Y | CH-1.9D-JHP-A SET SR M5X5 DIN913 TL360 BLD IP15/S7 | SW6-T-SH | SR M4X0.7-L9.6 IP15 PIN FT39 D6-5X11 |
HSK A63WH-RCMT-Y
Y-Axis Turning Tools
Carrying Round Inserts DCONMS WF
with 7° Clearance Angle
WF2 LU LB MDX LF Rotation Range 120˚
| Designation | DCONMS | LU | LB | LF | WF | WF2 | MDX(1) | Insert | CDI(2) | |
| HSK A63WH-SRDCN-16-100Y | 63.00 | 34.90 | 69.80 | 100.00 | 15.00 | 16.5 | 240.00 | RCMT 1606MO-14 | 0 | |
| HSK A63WH-SRDCN-16-125Y | 63.00 | 60.00 | 93.40 | 125.00 | 15.00 | 16.5 | 380.00 | RCMT 1606MO-14 | 0 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
- For shank dimensions, see page 735
(1) Machinable diameter maximum (2) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: RCMT-14 (202) RCMT-SR (202)
Spare Parts
HSK A63WH-RCMT-Y TRC 5-0 SR TC-4 CH-1.9D-JHP-A SET SR 16-212 HW 3.0 BLD T20/S7 SW6-T-SH
