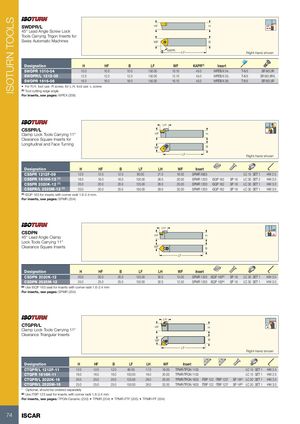

| SWDPR/L | HF | H | 45° | ||||||
| 45° Lead Angle Screw Lock | |||||||||
| Tools Carrying Trigon Inserts for | |||||||||
| Swiss Automatic Machines | WF | B | |||||||
| KAPR LF | Right | -hand shown | |||||||
| Designation | H | HF | B | LF | WF | KAPR(1) | Insert | ||
| SWDPR 1010-04 | 10.0 | 10.0 | 10.0 | 150.00 | 10.10 | 45.0 | WPEB/X 04.. | T-8/5 | SR M3.0R |
| SWDPR/L 1212-05 | 12.0 | 12.0 | 12.0 | 150.00 | 12.10 | 45.0 | WPEB/X 05.. | T-8/5 | SR M3.5R/L |
| SWDPR 1616-06 | 16.0 | 16.0 | 16.0 | 150.00 | 16.10 | 45.0 | WPEB/X 06.. | T-8/5 | SR M3.5R |
- For R.H. tool use -R screw, for L.H. tool use -L screw
(1) Tool cutting edge angle
For inserts, see pages: WPEX (208)
| CSSPR/L Clamp Lock Tools Carrying 11° | LH HF | H | 45º 45º | ||||||||
| Clearance Square Inserts for | |||||||||||
| Longitudinal and Face Turning | WF | LF | B | Right-hand | shown | ||||||
| Designation | H | HF | B | LF | LH | WF | Insert | ||||
| CSSPR 1212F-09 | 12.0 | 12.0 | 12.0 | 80.00 | 21.0 | 16.00 | SPMR 0903 | LC 15 SET 1 | HW 2.5 | ||
| CSSPR 1616H-12(1) | 16.0 | 16.0 | 16.0 | 100.00 | 26.0 | 20.00 | SPMR 1203 | ISQP 162 | SP 16 | LC 30 SET 2 | HW 3.0 |
| CSSPR 2020K-12(1) | 20.0 | 20.0 | 20.0 | 125.00 | 26.0 | 25.00 | SPMR 1203 | ISQP 162 | SP 16 | LC 30 SET 1 | HW 3.0 |
| CSSPR/L 2525M-12(1) | 25.0 | 25.0 | 25.0 | 150.00 | 28.0 | 32.00 | SPMR 1203 | ISQP 162 | SP 16 | LC 30 SET 1 | HW 3.0 |
(1) ISQP 163 for inserts with corner radii 1.6-2.4 mm.
For inserts, see pages: SPMR (204)
| CSDPN 45° Lead Angle Clamp | LH HF | H | 45° | ||||||||
| Lock Tools Carrying 11° | |||||||||||
| Clearance Square Inserts | WF | B | |||||||||
| LF | |||||||||||
| Designation | H | HF | B | LF | LH | WF | Insert | ||||
| CSDPN 2020K-12 | 20.0 | 20.0 | 20.0 | 125.00 | 30.0 | 10.00 | SPMR 1203 | ISQP 162(a) | SP 16 | LC 30 SET 1 | HW 3.0 |
| CSDPN 2525M-12 | 25.0 | 25.0 | 25.0 | 150.00 | 30.0 | 12.50 | SPMR 1203 | ISQP 162(a) | SP 16 | LC 30 SET 1 | HW 3.0 |
(a) Use ISQP 163 seat for inserts with corner radii 1.6-2.4 mm
For inserts, see pages: SPMR (204)
| LH | ||||||||||||
| CTGPR/L Clamp Lock Tools Carrying 1 Clearance Triangular Inserts | 1° | HF | H | 91º | ||||||||
| WF | LF | B | Right-hand | shown | ||||||||
| Designation | H | HF | B | LF | LH | WF | Insert | |||||
| CTGPR/L 1212F-11 | 12.0 | 12.0 | 12.0 | 80.00 | 17.0 | 16.00 | TPMR/TPGN 1103 | LC 15 SET 1 | HW 2.5 | |||
| CTGPR 1616H-11 | 16.0 | 16.0 | 16.0 | 100.00 | 16.0 | 20.00 | TPMR/TPGN 1103 | LC 15 SET 1 | HW 2.5 | |||
| CTGPR/L 2020K-16 | 20.0 | 20.0 | 20.0 | 125.00 | 26.0 | 25.00 | TPMR/TPGN 1603 | ITBP 122 | ITBP 123 | SP 16(a) | LC 30 SET 1 | HW 3.0 |
| CTGPR/L 2525M-16 | 25.0 | 25.0 | 25.0 | 150.00 | 26.0 | 32.00 | TPMR/TPGN 1603 | ITBP 122 | ITBP 123 | SP 16(a) | LC 30 SET 1 | HW 3.0 |
(a) Use ITBP 123 seat for inserts with corner radii 1.6-2.4 mm
For inserts, see pages: TPGN-Ceramic (220) TPMR (204) TPMR-FTF (205) TPMR-PF (204)
