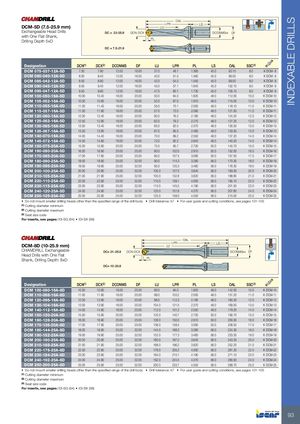

| LPR OAL | LS | ||||||||||
| DCM-5D (7.5-25.9 mm) | LU | ||||||||||
| Exchangeable Head Drills | DC | = 22-25.9 | DCN-DCX | DCONMSh | 6 DF | ||||||
| with One Flat Shank, Drilling Depth 5xD | DC | = 7.5-21.9 | PL | ||||||||
| Designation | DCN(1) | DCX(2) | DCONMS | DF | LU | LPR | PL | LS | OAL | SSC(3) | |
| DCM 075-037-12A-5D | 7.50 | 7.90 | 12.00 | 16.00 | 37.0 | 48.1 | 1.360 | 45.0 | 93.10 | 8.0 | K DCM- 8 |
| DCM 080-040-12A-5D | 8.00 | 8.40 | 12.00 | 16.00 | 40.0 | 51.0 | 1.460 | 45.0 | 96.00 | 8.0 | K DCM- 8 |
| DCM 085-042-12A-5D | 8.50 | 8.90 | 12.00 | 16.00 | 42.0 | 54.0 | 1.550 | 45.0 | 99.00 | 8.0 | K DCM- 8 |
| DCM 090-045-12A-5D | 9.00 | 9.40 | 12.00 | 16.00 | 45.0 | 57.1 | 1.640 | 45.0 | 102.10 | 9.0 | K DCM- 9 |
| DCM 095-047-12A-5D | 9.50 | 9.90 | 12.00 | 16.00 | 47.0 | 60.1 | 1.730 | 45.0 | 105.10 | 9.0 | K DCM- 9 |
| DCM 100-050-16A-5D | 10.00 | 10.40 | 16.00 | 20.00 | 50.0 | 64.0 | 1.820 | 48.0 | 112.00 | 10.0 | K DCM-10 |
| DCM 105-052-16A-5D | 10.50 | 10.90 | 16.00 | 20.00 | 52.0 | 67.0 | 1.910 | 48.0 | 115.00 | 10.0 | K DCM-10 |
| DCM 110-055-16A-5D | 11.00 | 11.40 | 16.00 | 20.00 | 55.0 | 70.1 | 2.000 | 48.0 | 118.10 | 11.0 | K DCM-11 |
| DCM 115-057-16A-5D | 11.50 | 11.90 | 16.00 | 20.00 | 57.0 | 73.0 | 2.090 | 48.0 | 121.00 | 11.0 | K DCM-11 |
| DCM 120-060-16A-5D | 12.00 | 12.40 | 16.00 | 20.00 | 60.0 | 76.2 | 2.180 | 48.0 | 124.20 | 12.0 | K DCM-12 |
| DCM 125-062-16A-5D | 12.50 | 12.90 | 16.00 | 20.00 | 62.0 | 79.2 | 2.270 | 48.0 | 127.20 | 12.0 | K DCM-12 |
| DCM 130-065-16A-5D | 13.00 | 13.40 | 16.00 | 20.00 | 65.0 | 82.5 | 2.370 | 48.0 | 130.50 | 13.0 | K DCM-13 |
| DCM 135-067-16A-5D | 13.50 | 13.90 | 16.00 | 20.00 | 67.0 | 85.5 | 2.460 | 48.0 | 133.50 | 13.0 | K DCM-13 |
| DCM 140-070-16A-5D | 14.00 | 14.40 | 16.00 | 20.00 | 70.0 | 89.2 | 2.550 | 48.0 | 137.20 | 14.0 | K DCM-14 |
| DCM 145-072-16A-5D | 14.50 | 14.90 | 16.00 | 20.00 | 72.0 | 92.2 | 2.640 | 48.0 | 140.20 | 14.0 | K DCM-14 |
| DCM 150-075-20A-5D | 15.00 | 15.90 | 20.00 | 25.00 | 75.0 | 95.7 | 2.730 | 50.0 | 145.70 | 15.0 | K DCM-15 |
| DCM 160-080-20A-5D | 16.00 | 16.90 | 20.00 | 25.00 | 80.0 | 102.0 | 2.910 | 50.0 | 152.00 | 16.0 | K DCM-16 |
| DCM 170-085-20A-5D | 17.00 | 17.90 | 20.00 | 25.00 | 85.0 | 107.5 | 3.090 | 50.0 | 157.50 | 17.0 | K DCM-17 |
| DCM 180-090-25A-5D | 18.00 | 18.90 | 25.00 | 32.00 | 90.0 | 114.3 | 3.280 | 56.0 | 170.30 | 18.0 | K DCM-18 |
| DCM 190-095-25A-5D | 19.00 | 19.90 | 25.00 | 32.00 | 95.0 | 120.3 | 3.460 | 56.0 | 176.30 | 19.0 | K DCM-19 |
| DCM 200-100-25A-5D | 20.00 | 20.90 | 25.00 | 32.00 | 100.0 | 127.0 | 3.640 | 56.0 | 183.00 | 20.0 | K DCM-20 |
| DCM 210-105-25A-5D | 21.00 | 21.90 | 25.00 | 32.00 | 105.0 | 132.8 | 3.820 | 56.0 | 188.80 | 21.0 | K DCM-21 |
| DCM 220-110-25A-5D | 22.00 | 22.90 | 25.00 | 32.00 | 110.0 | 139.1 | 4.000 | 56.0 | 195.10 | 22.0 | K DCM-22 |
| DCM 230-115-25A-5D | 23.00 | 23.90 | 25.00 | 32.00 | 115.0 | 145.5 | 4.190 | 56.0 | 201.50 | 23.0 | K DCM-23 |
| DCM 240-120-25A-5D | 24.00 | 24.90 | 25.00 | 32.00 | 120.0 | 151.6 | 4.370 | 56.0 | 207.60 | 24.0 | K DCM-24 |
| DCM 250-125-25A-5D | 25.00 | 25.90 | 25.00 | 32.00 | 125.0 | 159.0 | 4.550 | 56.0 | 215.00 | 25.0 | K DCM-25 |
- Do not mount smaller drilling heads other than the specified range of the drill body
- Drill tolerance: k7
- For user guide and cutting conditions, see pages 101-105
(1) Cutting diameter minimum (2) Cutting diameter maximum (3) Seat size code
For inserts, see pages: IDI-SG (94) IDI-SK (98)
| O | AL | ||||||||||
| LPR | LS | ||||||||||
| DCM-8D (10-25.9 mm) | LU | ||||||||||
| CHAMDRILL Exchangeable Head Drills with One Flat | DC | = 21-25.9 | DCN-DCX | PL | DCONMSh6 | DF | |||||
| Shank, Drilling Depth: 8xD | DC | = 10-20.9 | |||||||||
| Designation | DCN(1) | DCX(2) | DCONMS | DF | LU | LPR | PL | LS | OAL | SSC(3) | |
| DCM 100-080-16A-8D | 10.00 | 10.90 | 16.00 | 20.00 | 80.0 | 94.0 | 1.820 | 48.0 | 142.00 | 10.0 | K DCM-10 |
| DCM 110-088-16A-8D | 11.00 | 11.90 | 16.00 | 20.00 | 88.0 | 103.2 | 2.000 | 48.0 | 151.20 | 11.0 | K DCM-11 |
| DCM 120-096-16A-8D | 12.00 | 12.90 | 16.00 | 20.00 | 96.0 | 112.3 | 2.180 | 48.0 | 160.30 | 12.0 | K DCM-12 |
| DCM 130-104-16A-8D | 13.00 | 13.90 | 16.00 | 20.00 | 104.0 | 121.5 | 2.370 | 48.0 | 169.50 | 13.0 | K DCM-13 |
| DCM 140-112-16A-8D | 14.00 | 14.90 | 16.00 | 20.00 | 112.0 | 131.2 | 2.550 | 48.0 | 179.20 | 14.0 | K DCM-14 |
| DCM 150-120-20A-8D | 15.00 | 15.90 | 20.00 | 25.00 | 120.0 | 140.7 | 2.730 | 50.0 | 190.70 | 15.0 | K DCM-15 |
| DCM 160-128-20A-8D | 16.00 | 16.90 | 20.00 | 25.00 | 128.0 | 150.0 | 2.910 | 50.0 | 200.00 | 16.0 | K DCM-16 |
| DCM 170-136-20A-8D | 17.00 | 17.90 | 20.00 | 25.00 | 136.0 | 158.5 | 3.090 | 50.0 | 208.50 | 17.0 | K DCM-17 |
| DCM 180-144-25A-8D | 18.00 | 18.90 | 25.00 | 32.00 | 144.0 | 168.3 | 3.280 | 56.0 | 224.30 | 18.0 | K DCM-18 |
| DCM 190-152-25A-8D | 19.00 | 19.90 | 25.00 | 32.00 | 152.0 | 177.3 | 3.460 | 56.0 | 233.30 | 19.0 | K DCM-19 |
| DCM 200-160-25A-8D | 20.00 | 20.90 | 25.00 | 32.00 | 160.0 | 187.2 | 3.640 | 56.0 | 243.20 | 20.0 | K DCM-20 |
| DCM 210-168-25A-8D | 21.00 | 21.90 | 25.00 | 32.00 | 168.0 | 196.2 | 3.820 | 56.0 | 252.20 | 21.0 | K DCM-21 |
| DCM 220-176-25A-8D | 22.00 | 22.90 | 25.00 | 32.00 | 176.0 | 205.2 | 4.000 | 56.0 | 261.20 | 22.0 | K DCM-22 |
| DCM 230-184-25A-8D | 23.00 | 23.90 | 25.00 | 32.00 | 184.0 | 215.1 | 4.190 | 56.0 | 271.10 | 23.0 | K DCM-23 |
| DCM 240-192-25A-8D | 24.00 | 24.90 | 25.00 | 32.00 | 192.0 | 224.5 | 4.370 | 56.0 | 280.50 | 24.0 | K DCM-24 |
| DCM 250-200-25A-8D | 25.00 | 25.90 | 25.00 | 32.00 | 200.0 | 233.7 | 4.550 | 56.0 | 289.70 | 25.0 | K DCM-25 |
- Do not mount smaller drilling heads other than the specified range of the drill body
- Drill tolerance: k7
- For user guide and cutting conditions, see pages 101-105
(1) Cutting diameter minimum (2) Cutting diameter maximum
For inserts, see pages: IDI-SG (94) IDI-SK (98)
