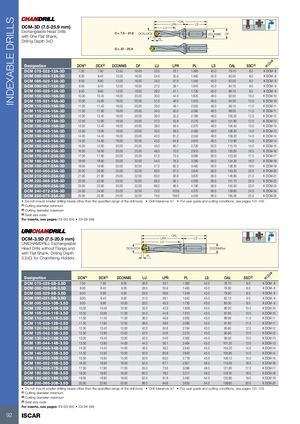

| DCM-3D (7.5-25.9 mm) | L | U LPR OAL | LS | ||||||||
| Exchangeable Head Drills | D = 7.5 - 21. | 9 DCN | -DCX | DCONMS | DF | ||||||
| with One Flat Shank, | |||||||||||
| Drilling Depth 3xD | PL | ||||||||||
| D = 22 - 25.9 | |||||||||||
| Designation | DCN(1) | DCX(2) | DCONMS | DF | LU | LPR | PL | LS | OAL | SSC(3) | |
| DCM 075-022-12A-3D | 7.50 | 7.90 | 12.00 | 16.00 | 22.0 | 33.1 | 1.360 | 45.0 | 78.10 | 8.0 | K DCM- 8 |
| DCM 080-024-12A-3D | 8.00 | 8.40 | 12.00 | 16.00 | 24.0 | 35.0 | 1.460 | 45.0 | 80.00 | 8.0 | K DCM- 8 |
| DCM 085-025-12A-3D | 8.50 | 8.90 | 12.00 | 16.00 | 25.0 | 37.0 | 1.550 | 45.0 | 82.00 | 8.0 | K DCM- 8 |
| DCM 090-027-12A-3D | 9.00 | 9.40 | 12.00 | 16.00 | 27.0 | 39.1 | 1.640 | 45.0 | 84.10 | 9.0 | K DCM- 9 |
| DCM 095-028-12A-3D | 9.50 | 9.90 | 12.00 | 16.00 | 28.0 | 41.1 | 1.730 | 45.0 | 86.10 | 9.0 | K DCM- 9 |
| DCM 100-030-16A-3D | 10.00 | 10.40 | 16.00 | 20.00 | 30.0 | 44.0 | 1.820 | 48.0 | 92.00 | 10.0 | K DCM-10 |
| DCM 105-031-16A-3D | 10.50 | 10.90 | 16.00 | 20.00 | 31.0 | 46.0 | 1.910 | 48.0 | 94.00 | 10.0 | K DCM-10 |
| DCM 110-033-16A-3D | 11.00 | 11.40 | 16.00 | 20.00 | 33.0 | 48.1 | 2.000 | 48.0 | 96.10 | 11.0 | K DCM-11 |
| DCM 115-034-16A-3D | 11.50 | 11.90 | 16.00 | 20.00 | 34.0 | 50.0 | 2.090 | 48.0 | 98.00 | 11.0 | K DCM-11 |
| DCM 120-036-16A-3D | 12.00 | 12.40 | 16.00 | 20.00 | 36.0 | 52.2 | 2.180 | 48.0 | 100.20 | 12.0 | K DCM-12 |
| DCM 125-037-16A-3D | 12.50 | 12.90 | 16.00 | 20.00 | 37.0 | 53.8 | 2.270 | 48.0 | 101.80 | 12.0 | K DCM-12 |
| DCM 130-039-16A-3D | 13.00 | 13.40 | 16.00 | 20.00 | 39.0 | 56.5 | 2.370 | 48.0 | 104.50 | 13.0 | K DCM-13 |
| DCM 135-040-16A-3D | 13.50 | 13.90 | 16.00 | 20.00 | 40.0 | 58.5 | 2.460 | 48.0 | 106.50 | 13.0 | K DCM-13 |
| DCM 140-042-16A-3D | 14.00 | 14.40 | 16.00 | 20.00 | 42.0 | 61.2 | 2.550 | 48.0 | 109.20 | 14.0 | K DCM-14 |
| DCM 145-043-16A-3D | 14.50 | 14.90 | 16.00 | 20.00 | 43.0 | 64.8 | 2.640 | 48.0 | 112.80 | 14.0 | K DCM-14 |
| DCM 150-045-20A-3D | 15.00 | 15.90 | 20.00 | 25.00 | 45.0 | 65.7 | 2.730 | 50.0 | 115.70 | 15.0 | K DCM-15 |
| DCM 160-048-20A-3D | 16.00 | 16.90 | 20.00 | 25.00 | 48.0 | 70.0 | 2.910 | 50.0 | 120.00 | 16.0 | K DCM-16 |
| DCM 170-051-20A-3D | 17.00 | 17.90 | 20.00 | 25.00 | 51.0 | 73.5 | 3.090 | 50.0 | 123.50 | 17.0 | K DCM-17 |
| DCM 180-054-25A-3D | 18.00 | 18.90 | 25.00 | 32.00 | 54.0 | 78.3 | 3.280 | 56.0 | 134.30 | 18.0 | K DCM-18 |
| DCM 190-057-25A-3D | 19.00 | 19.90 | 25.00 | 32.00 | 57.0 | 82.3 | 3.460 | 56.0 | 138.30 | 19.0 | K DCM-19 |
| DCM 200-060-25A-3D | 20.00 | 20.90 | 25.00 | 32.00 | 60.0 | 87.0 | 3.640 | 56.0 | 143.00 | 20.0 | K DCM-20 |
| DCM 210-063-25A-3D | 21.00 | 21.90 | 25.00 | 32.00 | 63.0 | 90.8 | 3.820 | 56.0 | 146.80 | 21.0 | K DCM-21 |
| DCM 220-066-25A-3D | 22.00 | 22.90 | 25.00 | 32.00 | 66.0 | 95.1 | 4.000 | 56.0 | 151.10 | 22.0 | K DCM-22 |
| DCM 230-069-25A-3D | 23.00 | 23.90 | 25.00 | 32.00 | 69.0 | 99.5 | 4.190 | 56.0 | 155.50 | 23.0 | K DCM-23 |
| DCM 240-072-25A-3D | 24.00 | 24.90 | 25.00 | 32.00 | 72.0 | 103.6 | 4.370 | 56.0 | 159.60 | 24.0 | K DCM-24 |
| DCM 250-075-25A-3D | 25.00 | 25.90 | 25.00 | 32.00 | 75.0 | 109.0 | 4.550 | 56.0 | 165.00 | 25.0 | K DCM-25 |
- Do not mount smaller drilling heads other than the specified range of the drill body
- Drill tolerance: k7
- For user guide and cutting conditions, see pages 101-105
(1) Cutting diameter minimum (2) Cutting diameter maximum (3) Seat size code
For inserts, see pages: IDI-SG (94) IDI-SK (98)
| DCM-3.5D (7.5-20.9 mm) UNICHAMDRILL Exchangeable Head Drills without Flange and | LS LPR OAL DCN-DCX LU | DCONMSh6 |
| with Flat Shank, Drilling Depth | PL | |
| 3.5xD, for Chamfering Holders |
| Designation | DCN(1) | DCX(2) | DCONMS | LU | LPR | PL | LS | OAL | SSC(3) | |
| DCM 075-026-8B-3.5D | 7.50 | 7.90 | 8.00 | 26.0 | 33.7 | 1.360 | 43.0 | 76.70 | 8.0 | K DCM- 8 |
| DCM 080-028-8B-3.5D | 8.00 | 8.40 | 8.00 | 28.0 | 35.9 | 1.460 | 43.0 | 78.90 | 8.0 | K DCM- 8 |
| DCM 085-029-9B-3.5D | 8.50 | 8.90 | 9.00 | 29.0 | 36.8 | 1.549 | 43.0 | 79.90 | 8.0 | K DCM- 8 |
| DCM 090-031-9B-3.5D | 9.00 | 9.40 | 9.00 | 31.0 | 39.1 | 1.640 | 43.0 | 82.10 | 9.0 | K DCM- 9 |
| DCM 095-033-10B-3.5D | 9.50 | 9.90 | 10.00 | 33.0 | 40.3 | 1.730 | 43.0 | 83.30 | 9.0 | K DCM- 9 |
| DCM 100-033-10B-3.5D | 10.00 | 10.40 | 10.00 | 33.0 | 42.9 | 1.829 | 43.0 | 86.00 | 10.0 | K DCM-10 |
| DCM 105-034-11B-3.5D | 10.50 | 10.90 | 11.00 | 34.0 | 44.8 | 1.910 | 43.0 | 87.80 | 10.0 | K DCM-10 |
| DCM 110-036-11B-3.5D | 11.00 | 11.40 | 11.00 | 36.0 | 46.9 | 2.000 | 43.0 | 89.90 | 11.0 | K DCM-11 |
| DCM 115-038-12B-3.5D | 11.50 | 11.90 | 12.00 | 38.0 | 48.6 | 2.090 | 43.0 | 91.60 | 11.0 | K DCM-11 |
| DCM 120-042-12B-3.5D | 12.00 | 12.40 | 12.00 | 42.0 | 50.8 | 2.184 | 43.0 | 93.80 | 12.0 | K DCM-12 |
| DCM 125-042-13B-3.5D | 12.50 | 12.90 | 13.00 | 42.0 | 52.6 | 2.270 | 43.0 | 95.60 | 12.0 | K DCM-12 |
| DCM 130-042-13B-3.5D | 13.00 | 13.40 | 13.00 | 42.0 | 54.6 | 2.362 | 45.0 | 99.50 | 13.0 | K DCM-13 |
| DCM 135-044-14B-3.5D | 13.50 | 13.90 | 14.00 | 44.0 | 56.1 | 2.464 | 45.0 | 101.20 | 13.0 | K DCM-13 |
| DCM 140-048-14B-3.5D | 14.00 | 14.40 | 14.00 | 48.0 | 59.2 | 2.540 | 45.0 | 104.20 | 14.0 | K DCM-14 |
| DCM 145-050-15B-3.5D | 14.50 | 14.90 | 15.00 | 50.0 | 60.9 | 2.640 | 45.0 | 105.90 | 14.0 | K DCM-14 |
| DCM 150-052-15B-3.5D | 15.00 | 15.90 | 15.00 | 52.0 | 63.0 | 2.718 | 45.0 | 108.10 | 15.0 | K DCM-15 |
| DCM 160-052-16B-3.5D | 16.00 | 16.90 | 16.00 | 52.0 | 67.1 | 2.921 | 48.0 | 115.00 | 16.0 | K DCM-16 |
| DCM 170-055-17B-3.5D | 17.00 | 17.90 | 17.00 | 55.0 | 73.6 | 3.090 | 48.0 | 121.60 | 17.0 | K DCM-17 |
| DCM 180-060-18B-3.5D | 18.00 | 18.90 | 18.00 | 60.0 | 78.2 | 3.277 | 48.0 | 126.30 | 18.0 | K DCM-18 |
| DCM 190-062-19B-3.5D | 19.00 | 19.90 | 19.00 | 62.5 | 81.8 | 3.460 | 54.0 | 135.80 | 19.0 | K DCM-19 |
| DCM 200-066-20B-3.5D | 20.00 | 20.90 | 20.00 | 66.0 | 84.6 | 3.632 | 54.0 | 138.60 | 20.0 | K DCM-20 |
- Do not mount smaller drilling heads other than the specified range of the drill body
- Drill tolerance: k7
- For user guide and cutting conditions, see pages 101-105
(1) Cutting diameter minimum (2) Cutting diameter maximum
For inserts, see pages: IDI-SG (94) IDI-SK (98)
