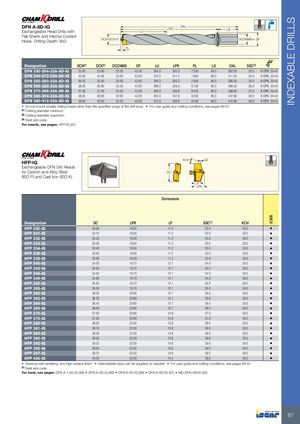

Каталог Iscar сверла со сменной режущей частью 2022 - страница 89

IC908 INDEXABLE DRILLS DFN A-8D-IQExchangeable Head Drills with OALLPR LSLU Flat Shank and Internal Coolant Holes. Drilling Depth: 8xD DCN-DCX k7 DCONMSh6 DF PL Designation DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) DFN 330-264-32A-8D-IQ 33.00 33.90 32.00 42.00 264.0 302.0 7.330 60.0 362.00 33.0 K DFN 30-40 DFN 340-272-32A-8D-IQ 34.00 34.90 32.00 42.00 272.0 311.2 7.620 60.0 371.20 34.0 K DFN 30-40 DFN 350-280-32A-8D-IQ 35.00 35.90 32.00 42.00 280.0 320.3 7.650 60.0 380.30 35.0 K DFN 30-40 DFN 360-288-32A-8D-IQ 36.00 36.90 32.00 42.00 288.0 329.5 8.150 60.0 389.50 36.0 K DFN 30-40 DFN 370-296-32A-8D-IQ 37.00 37.90 32.00 42.00 296.0 338.6 8.040 60.0 398.60 37.0 K DFN 30-40 DFN 380-304-32A-8D-IQ 38.00 38.90 32.00 42.00 304.0 347.8 8.200 60.0 407.80 38.0 K DFN 30-40 DFN 390-312-32A-8D-IQ 39.00 40.00 32.00 42.00 312.0 356.9 8.430 60.0 416.90 39.0 K DFN 30-40 • Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 89-91 (1) Cutting diameter minimum (2) Cutting diameter maximum (3) Seat size code For inserts, see pages: HFP-IQ (87) KCH 1.0 HFP-IQ Exchangeable DFN Drill Heads for Carbon and Alloy Steel DC (ISO P) and Cast Iron (ISO K) LF LPR Dimensions Designation DC LPR LF SSC(1) KCH HFP 330-IQ 33.00 18.50 11.2 33.0 30.0 • HFP 331-IQ 33.10 18.50 11.2 33.0 30.0 • HFP 332-IQ 33.20 18.50 11.2 33.0 30.0 • HFP 333-IQ 33.30 18.50 11.2 33.0 30.0 • HFP 334-IQ 33.40 18.50 11.2 33.0 30.0 • HFP 335-IQ 33.50 18.50 11.2 33.0 30.0 • HFP 339-IQ 33.90 18.50 11.2 33.0 30.0 • HFP 340-IQ 34.00 19.70 12.1 34.0 30.0 • HFP 343-IQ 34.30 19.70 12.1 34.0 30.0 • HFP 345-IQ 34.50 19.70 12.1 34.0 30.0 • HFP 349-IQ 34.90 19.70 12.1 34.0 30.0 • HFP 350-IQ 35.00 19.70 12.1 35.0 30.0 • HFP 355-IQ 35.50 19.70 12.1 35.0 30.0 • HFP 360-IQ 36.00 20.80 12.7 36.0 30.0 • HFP 362-IQ 36.20 20.80 12.7 36.0 30.0 • HFP 364-IQ 36.40 20.80 12.7 36.0 30.0 • HFP 365-IQ 36.50 20.80 12.7 36.0 30.0 • HFP 370-IQ 37.00 20.80 12.8 37.0 30.0 • HFP 375-IQ 37.50 20.80 12.8 37.0 30.0 • HFP 380-IQ 38.00 22.00 13.8 38.0 30.0 • HFP 381-IQ 38.10 22.00 13.8 38.0 30.0 • HFP 385-IQ 38.50 22.00 13.8 38.0 30.0 • HFP 390-IQ 39.00 22.00 13.6 39.0 30.0 • HFP 392-IQ 39.20 22.00 13.6 39.0 30.0 • HFP 395-IQ 39.50 22.00 13.6 39.0 30.0 • HFP 397-IQ 39.70 22.00 13.6 39.0 30.0 • HFP 400-IQ 40.00 23.00 14.4 39.0 30.0 • • Advance self centering, and high surface finish • Intermediate sizes can be supplied on request • For user guide and cutting conditions, see pages 89-91 (1) Seat size code For tools, see pages: DFN A-1.5D-IQ (86) • DFN A-3D-IQ (86) • DFN A-5D-IQ (86) • DFN A-8D-IQ (87) • MD-DFN-HEAD (82) 87
