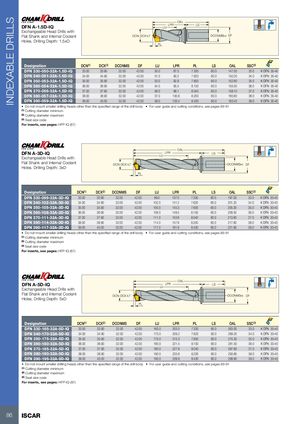

Каталог Iscar сверла со сменной режущей частью 2022 - страница 88

INDEXABLE DRILLS OAL DFN A-1.5D-IQ LPR LSLU Exchangeable Head Drills with Flat Shank and Internal Coolant DCN-DCX k7 DCONMSh6 DF Holes. Drilling Depth: 1.5xD PL Designation DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) DFN 330-050-32A-1.5D-IQ 33.00 33.90 32.00 42.00 50.0 87.5 7.330 60.0 147.50 33.0 K DFN 30-40 DFN 340-051-32A-1.5D-IQ 34.00 34.90 32.00 42.00 51.0 90.2 7.620 60.0 150.20 34.0 K DFN 30-40 DFN 350-053-32A-1.5D-IQ 35.00 35.90 32.00 42.00 53.0 92.8 7.650 60.0 152.80 35.0 K DFN 30-40 DFN 360-054-32A-1.5D-IQ 36.00 36.90 32.00 42.00 54.0 95.5 8.150 60.0 155.50 36.0 K DFN 30-40 DFN 370-056-32A-1.5D-IQ 37.00 37.90 32.00 42.00 56.0 98.1 8.040 60.0 158.10 37.0 K DFN 30-40 DFN 380-057-32A-1.5D-IQ 38.00 38.90 32.00 42.00 57.0 100.8 8.200 60.0 160.80 38.0 K DFN 30-40 DFN 390-059-32A-1.5D-IQ 39.00 40.00 32.00 42.00 59.0 103.4 8.430 60.0 163.40 39.0 K DFN 30-40 • Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 89-91 (1) Cutting diameter minimum (2) Cutting diameter maximum (3) Seat size code For inserts, see pages: HFP-IQ (87) OAL DFN A-3D-IQExchangeable Head Drills with LPR LSLU Flat Shank and Internal Coolant DCN-DCX k7 DCONMSh6 DF Holes. Drilling Depth: 3xD PL Designation DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) DFN 330-099-32A-3D-IQ 33.00 33.90 32.00 42.00 99.0 137.0 7.330 60.0 197.00 33.0 K DFN 30-40 DFN 340-102-32A-3D-IQ 34.00 34.90 32.00 42.00 102.0 141.2 7.620 60.0 201.20 34.0 K DFN 30-40 DFN 350-105-32A-3D-IQ 35.00 35.90 32.00 42.00 105.0 145.3 7.650 60.0 205.30 35.0 K DFN 30-40 DFN 360-108-32A-3D-IQ 36.00 36.90 32.00 42.00 108.0 149.5 8.150 60.0 209.50 36.0 K DFN 30-40 DFN 370-111-32A-3D-IQ 37.00 37.90 32.00 42.00 111.0 153.6 8.040 60.0 213.60 37.0 K DFN 30-40 DFN 380-114-32A-3D-IQ 38.00 38.90 32.00 42.00 114.0 157.8 8.200 60.0 217.80 38.0 K DFN 30-40 DFN 390-117-32A-3D-IQ 39.00 40.00 32.00 42.00 117.0 161.9 8.430 60.0 221.90 39.0 K DFN 30-40 • Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 89-91 (1) Cutting diameter minimum (2) Cutting diameter maximum (3) Seat size code For inserts, see pages: HFP-IQ (87) OAL DFN A-5D-IQExchangeable Head Drills with LPR LSLU Flat Shank and Internal Coolant DCN-DCX k7 DCONMSh6 DF Holes. Drilling Depth: 5xD PL Designation DCN(1) DCX(2) DCONMS DF LU LPR PL LS OAL SSC(3) DFN 330-165-32A-5D-IQ 33.00 33.90 32.00 42.00 165.0 203.0 7.330 60.0 263.00 33.0 K DFN 30-40 DFN 340-170-32A-5D-IQ 34.00 34.90 32.00 42.00 170.0 209.2 7.620 60.0 269.20 34.0 K DFN 30-40 DFN 350-175-32A-5D-IQ 35.00 35.90 32.00 42.00 175.0 215.3 7.650 60.0 275.30 35.0 K DFN 30-40 DFN 360-180-32A-5D-IQ 36.00 36.90 32.00 42.00 180.0 221.5 8.150 60.0 281.50 36.0 K DFN 30-40 DFN 370-185-32A-5D-IQ 37.00 37.90 32.00 42.00 185.0 227.6 8.040 60.0 287.60 37.0 K DFN 30-40 DFN 380-190-32A-5D-IQ 38.00 38.90 32.00 42.00 190.0 233.8 8.200 60.0 293.80 38.0 K DFN 30-40 DFN 390-195-32A-5D-IQ 39.00 40.00 32.00 42.00 195.0 239.9 8.430 60.0 299.90 39.0 K DFN 30-40 • Do not mount smaller drilling heads other than the specified range of the drill body • For user guide and cutting conditions, see pages 89-91 (1) Cutting diameter minimum (2) Cutting diameter maximum (3) Seat size code For inserts, see pages: HFP-IQ (87) 86 ISCAR
