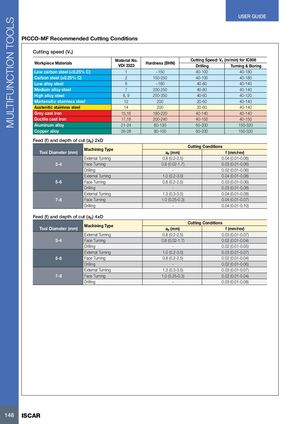

PICCO-MF Recommended Cutting Conditions

Cutting speed (Vc)

Workiece MaterialsMaterial No.Hardness (BHN)Cutting Speed:Vc (m/min) for IC908
pVDI 3323DrillingTurning & Boring
Low carbon steel (1~15040-10040-180
Carbon steel (≥0.25% C)2150-25040-10040-180
Low alloy steel6~18040-8040-140
Medium alloy steel7200-25040-8040-140
High alloy steel8, 9250-35040-6040-120
Martensitic stainless steel1220020-6040-140
Austenitic stainless steel1420020-6040-140
Grey cast iron15,16180-22040-14040-140
Ductile cast iron17,18200-24040-15040-150
Aluminum alloy21-2460-13050-200150-320
Copper alloy26-2890-10050-200150-320

Feed (f) and depth of cut (a ) 2xD p

Mhii TCuttingConditions
Tool Diameter (mm)acnng ypeap (mm)f (mm/rev)
External Turning0.8 (0.2-2.5)0.04 (0.01-0.08)
3-4Face Turning0.6 (0.02-1.7)0.03 (0.01-0.06)
Drilling-0.02 (0.01-0.06)
External Turning1.0 (0.2-3.0)0.04 (0.01-0.08)
5-6Face Turning0.8 (0.2-2.5)0.03 (0.01-0.06)
Drilling-0.03 (0.01-0.08)
External Turning1.3 (0.3-3.5)0.04 (0.01-0.08)
7-8Face Turning1.0 (0.25-0.3)0.04 (0.01-0.07)
Drilling-0.04 (0.01-0.10)

Feed (f) and depth of cut (a ) 4xD p

Machining TypeCuttingConditions
Tool Diameter (mm)ap (mm)f (mm/rev)
External Turning0.8 (0.2-2.5)0.03 (0.01-0.07)
3-4Face Turning0.6 (0.02-1.7)0.02 (0.01-0.04)
Drilling-0.02 (0.01-0.05)
External Turning1.0 (0.2-3.0)0.03 (0.01-0.07)
5-6Face Turning0.8 (0.2-2.5)0.02 (0.01-0.04)
Drilling-0.02 (0.01-0.06)
External Turning1.3 (0.3-3.5)0.03 (0.01-0.07)
7-8Face Turning1.0 (0.25-0.3)0.02 (0.01-0.04)
Drilling-0.03 (0.01-0.08)
