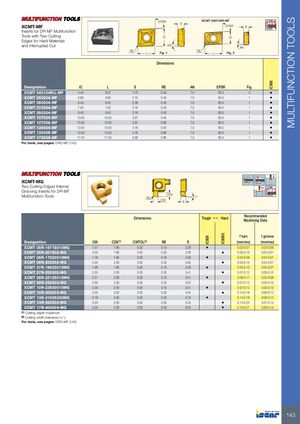

IC808 IC808G IC908 MULTIFUNCTION TOOLS EPSR S XCMT 040104R-MF XCMT-MF EPSR S Inserts for DR-MF Multifunction Tools with Two Cutting IC IC Edges for Hard Materials and Interrupted Cut AN AN RE L Fig. 1 RE L Fig. 2 Dimensions Designation IC L S RE AN EPSR Fig. XCMT 040104R/L-MF 4.40 6.37 1.70 0.40 7.0 83.5 2 • XCMT 050204-MF 5.60 5.60 2.10 0.40 7.0 83.5 1 • XCMT 060204-MF 6.40 6.40 2.38 0.40 7.0 83.5 1 • XCMT 070304-MF 7.50 7.50 3.18 0.40 7.0 83.5 1 • XCMT 080304-MF 8.40 8.40 3.18 0.40 7.0 83.5 1 • XCMT 10T304-MF 10.50 10.50 3.97 0.40 7.0 83.5 1 • XCMT 10T308-MF 10.50 10.50 3.97 0.80 7.0 83.5 1 • XCMT 130404-MF 13.40 13.40 4.76 0.40 7.0 83.5 1 • XCMT 130408-MF 13.40 13.40 4.76 0.80 7.0 83.5 1 • XCMT 170508-MF 17.40 17.40 5.56 0.80 7.0 83.5 1 • For tools, see pages: DRG-MF (142) XCMT-MG Two Cutting Edged Internal Grooving Inserts for DR-MF Multifunction Tools CDXRE 7° CW S Dimensions Tough 1  Hard RecommendedMachining Data f turn f groove Designation CW CDX(1) CWTOL(2) RE S (mm/rev) (mm/rev) XCMT 05R-15718015MG 1.57 1.80 0.02 0.15 2.28 • 0.03-0.07 0.03-0.06 XCMT 05R-201802-MG 2.00 1.80 0.02 0.20 2.28 • 0.05-0.10 0.04-0.07 XCMT 06R-17820018MG 1.78 1.80 0.02 0.18 2.28 • 0.04-0.08 0.04-0.07 XCMT 06R-202002-MG 2.00 2.00 0.02 0.20 2.65 • 0.05-0.10 0.04-0.07 XCMT 07R-19620015MG 1.96 1.80 0.02 0.15 2.28 • 0.05-0.10 0.04-0.07 XCMT 07R-252002-MG 2.50 2.00 0.02 0.20 3.41 • 0.07-0.12 0.05-0.10 XCMT 08R-22125015MG 2.21 2.00 0.02 0.15 3.41 • 0.06-0.11 0.04-0.08 XCMT 08R-252502-MG 2.50 2.50 0.02 0.20 3.50 • 0.07-0.12 0.05-0.10 XCMT 10R-23930015MG 2.39 2.00 0.02 0.15 3.41 • 0.07-0.12 0.05-0.10 XCMT 10R-303003-MG 3.00 3.00 0.02 0.30 4.34 • 0.14-0.18 0.06-0.12 XCMT 13R-31835020MG 3.18 3.50 0.02 0.20 5.18 • 0.14-0.18 0.06-0.12 XCMT 13R-353503-MG 3.50 3.50 0.02 0.30 5.25 • 0.14-0.20 0.07-0.14 XCMT 17R-404004-MG 4.00 4.00 0.02 0.40 6.00 • 0.15-0.21 0.08-0.15 (1) Cutting depth maximum (2) Cutting width tolerance (+/-) For tools, see pages: DRG-MF (142) 143
