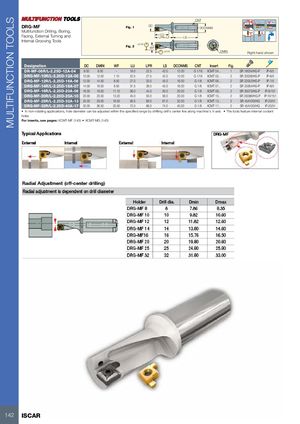

Каталог Iscar сверла со сменной режущей частью 2022 - страница 144
Навигация
Каталог Iscar монолитные фрезы 2022
Каталог Iscar токарный инструмент
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar токарный инструмент для нарезания канавок
Каталог Iscar полирующие фрезы
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
| DRG-MF | Fig. 1 | DC | DC CNT | ONMS | ||||||||
| Multifunction Drilling, Boring, Facing, External Turning and Internal Grooving Tools | Fig. 2 ±0 | WF .05 | LPR=LF LU ±0.05 | LS | DM | IN | Right-hand | shown | ||||
| Designation | DC | DMIN | WF | LU | LPR | LS | DCONMS | CNT | Insert | Fig. | ||
| DR-MF-08R/L-2.25D-12A-04 | 8.00 | 8.00 | - | 18.0 | 22.5 | 42.0 | 12.00 | G 1/16 | XCMT 04... | 1 | SR 18034/HG-P | IP-6/5 |
| DRG-MF-10R/L-2.25D-12A-05 | 10.00 | 12.00 | 7.10 | 22.5 | 27.5 | 42.0 | 12.00 | G 1/16 | XCMT 05... | 2 | SR 20038/HG-P | IP-6/5 |
| DRG-MF-12R/L-2.25D-16A-06 | 12.00 | 14.50 | 8.50 | 27.0 | 33.0 | 45.0 | 16.00 | G 1/8 | XCMT 06... | 2 | SR 22052/HG-P | IP-7/5 |
| DRG-MF-14R/L-2.25D-16A-07 | 14.00 | 16.50 | 9.50 | 31.5 | 38.5 | 45.0 | 16.00 | G 1/8 | XCMT 07... | 2 | SR 25064/HG-P | IP-8/5 |
| DRG-MF-16R/L-2.25D-20A-08 | 16.00 | 19.00 | 11.10 | 36.0 | 44.0 | 50.0 | 20.00 | G 1/8 | XCMT 08... | 2 | SR 30070/HG-P | IP-9/151 |
| DRG-MF-20R/L-2.25D-25A-10 | 20.00 | 23.50 | 13.20 | 45.0 | 55.0 | 56.0 | 25.00 | G 1/8 | XCMT 10... | 2 | SR 35088I/HG-P | IP-10/151 |
| DRG-MF-25R/L-2.25D-32A-13 | 25.00 | 29.00 | 16.50 | 56.5 | 69.0 | 61.0 | 32.00 | G 1/8 | XCMT 13... | 2 | SR 45A100I/HG | IP-20/51 |
| DRG-MF-32R/L-2.25D-40A-17 | 32.00 | 36.50 | 20.50 | 72.0 | 86.0 | 74.0 | 40.00 | G 1/8 | XCMT 17... | 2 | SR 45A100I/HG | IP-20/51 |
- In non-rotating applications, hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis
- The tools feature internal coolant
holes
For inserts, see pages: XCMT-MF (143) XCMT-MG (143)
