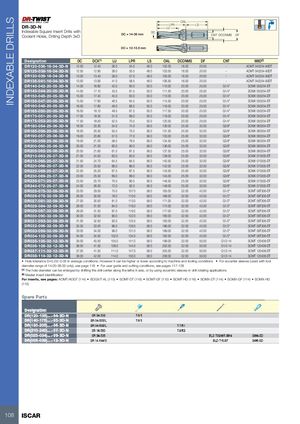

Каталог Iscar сверла со сменной режущей частью 2022 - страница 110
Навигация
Каталог Iscar монолитные фрезы 2022
Каталог Iscar токарный инструмент
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar токарный инструмент для нарезания канавок
Каталог Iscar полирующие фрезы
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
| LP | OAL | LS | ||||||||
| DR-3D-N | LU | |||||||||
| Indexable Square Insert Drills | with | DC 1438 | DC | |||||||
| Coolant Holes, Drilling Depth | 3xD | = - mm | DCONMS CNT | DF | ||||||
| DC = 12-13.5 mm | ||||||||||
| Designation | DC | DCX(1) | LU | LPR | LS | OAL | DCONMS | DF | CNT | MIID(2) |
| DR120-036-16-04-3D-N | 12.00 | 12.40 | 36.0 | 54.0 | 48.0 | 102.00 | 16.00 | 20.00 | - | AOMT 040204-90DT |
| DR125-038-16-04-3D-N | 12.50 | 12.90 | 38.0 | 55.5 | 48.0 | 103.50 | 16.00 | 20.00 | - | AOMT 040204-90DT |
| DR130-039-16-04-3D-N | 13.00 | 13.40 | 39.0 | 57.0 | 48.0 | 105.00 | 16.00 | 20.00 | - | AOMT 040204-90DT |
| DR135-041-16-04-3D-N | 13.50 | 13.90 | 41.0 | 58.5 | 48.0 | 106.50 | 16.00 | 20.00 | - | AOMT 040204-90DT |
| DR140-042-20-05-3D-N | 14.00 | 16.80 | 42.0 | 60.0 | 50.0 | 110.00 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR145-044-20-05-3D-N | 14.50 | 17.10 | 43.5 | 61.5 | 50.0 | 111.50 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR150-045-20-05-3D-N | 15.00 | 17.40 | 45.0 | 63.0 | 50.0 | 113.00 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR155-047-20-05-3D-N | 15.50 | 17.60 | 46.5 | 64.5 | 50.0 | 114.50 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR160-048-20-05-3D-N | 16.00 | 17.80 | 48.0 | 66.0 | 50.0 | 116.00 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR165-050-20-05-3D-N | 16.50 | 18.10 | 49.5 | 67.5 | 50.0 | 117.50 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR170-051-20-05-3D-N | 17.00 | 18.30 | 51.0 | 69.0 | 50.0 | 119.00 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR175-053-20-05-3D-N | 17.50 | 18.50 | 52.5 | 70.5 | 50.0 | 120.50 | 20.00 | 25.00 | G1/4" | SOMX 050204-DT |
| DR180-054-25-06-3D-N | 18.00 | 20.30 | 54.0 | 74.0 | 56.0 | 130.00 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR185-056-25-06-3D-N | 18.50 | 20.50 | 55.5 | 75.5 | 56.0 | 131.50 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR190-057-25-06-3D-N | 19.00 | 20.80 | 57.0 | 77.0 | 56.0 | 133.00 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR195-059-25-06-3D-N | 19.50 | 21.00 | 58.5 | 78.5 | 56.0 | 134.50 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR200-060-25-06-3D-N | 20.00 | 21.30 | 60.0 | 80.0 | 56.0 | 136.00 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR205-062-25-06-3D-N | 20.50 | 21.60 | 61.5 | 81.5 | 56.0 | 137.50 | 25.00 | 32.00 | G3/8" | SOMX 060304-DT |
| DR210-063-25-07-3D-N | 21.00 | 24.50 | 63.0 | 83.0 | 56.0 | 139.00 | 25.00 | 32.00 | G3/8" | SOMX 070305-DT |
| DR215-065-25-07-3D-N | 21.50 | 24.70 | 64.5 | 84.5 | 56.0 | 140.50 | 25.00 | 32.00 | G3/8" | SOMX 070305-DT |
| DR220-066-25-07-3D-N | 22.00 | 25.00 | 66.0 | 86.0 | 56.0 | 142.00 | 25.00 | 32.00 | G3/8" | SOMX 070305-DT |
| DR225-068-25-07-3D-N | 22.50 | 25.20 | 67.5 | 87.5 | 56.0 | 143.50 | 25.00 | 32.00 | G3/8" | SOMX 070305-DT |
| DR230-069-25-07-3D-N | 23.00 | 25.50 | 69.0 | 89.0 | 56.0 | 145.00 | 25.00 | 32.00 | G3/8" | SOMX 070305-DT |
| DR235-071-25-07-3D-N | 23.50 | 25.70 | 70.5 | 90.5 | 56.0 | 146.50 | 25.00 | 32.00 | G3/8" | SOMX 070305-DT |
| DR240-072-25-07-3D-N | 24.00 | 26.00 | 72.0 | 92.0 | 56.0 | 148.00 | 25.00 | 32.00 | G3/8" | SOMX 070305-DT |
| DR025-075-32-09-3D-N | 25.00 | 29.50 | 75.0 | 107.0 | 58.0 | 165.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR026-078-32-09-3D-N | 26.00 | 30.00 | 78.0 | 110.0 | 58.0 | 168.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR027-081-32-09-3D-N | 27.00 | 30.50 | 81.0 | 113.0 | 58.0 | 171.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR028-084-32-09-3D-N | 28.00 | 31.00 | 84.0 | 116.0 | 58.0 | 174.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR029-087-32-09-3D-N | 29.00 | 31.50 | 87.0 | 119.0 | 58.0 | 177.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR030-090-32-09-3D-N | 30.00 | 32.00 | 90.0 | 122.0 | 58.0 | 180.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR031-093-32-09-3D-N | 31.00 | 32.50 | 93.0 | 125.0 | 58.0 | 183.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR032-096-32-09-3D-N | 32.00 | 33.00 | 96.0 | 128.0 | 58.0 | 186.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR033-099-32-09-3D-N | 33.00 | 34.00 | 99.0 | 131.0 | 58.0 | 189.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR034-102-32-09-3D-N | 34.00 | 34.50 | 102.0 | 134.0 | 58.0 | 192.00 | 32.00 | 42.00 | G1/2" | SOMT 09T306-DT |
| DR035-105-32-12-3D-N | 35.00 | 40.50 | 105.0 | 141.0 | 58.0 | 199.00 | 32.00 | 50.00 | G1/2-14 | SOMT 120408-DT |
| DR036-108-32-12-3D-N | 36.00 | 41.00 | 108.0 | 144.0 | 58.0 | 202.00 | 32.00 | 50.00 | G1/2-14 | SOMT 120408-DT |
| DR037-111-32-12-3D-N | 37.00 | 41.50 | 111.0 | 147.0 | 58.0 | 205.00 | 32.00 | 50.00 | G1/2-14 | SOMT 120408-DT |
| DR038-114-32-12-3D-N | 38.00 | 42.00 | 114.0 | 150.0 | 58.0 | 208.00 | 32.00 | 50.00 | G1/2-14 | SOMT 120408-DT |
- Hole tolerance D+0.25/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions
- For eccenter sleeves (used with tool
diameter range of 14.00-38.00 only), see page 118 For user guide and cutting conditions, see pages 117-128 (1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications (2) Master insert identification
For inserts, see pages: AOMT/AOGT (114) SOGX/T-AL (115) SOMT-DT (116) SOMT-GF (115) SOMT-HD (116) SOMX-DT (114) SOMX-GF (114) SOMX-HD (115)
