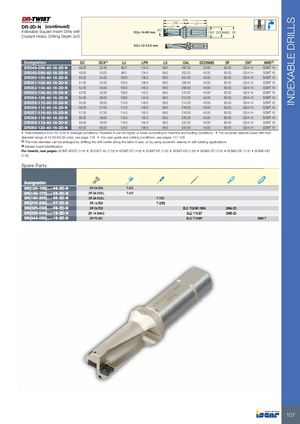

| DR-2D-N (continued) | D | LP LU C | R OAL L | S | ||||||
| Indexable Square Insert Drills Coolant Holes, Drilling Depth 2 | with xD | DC= 14-60 mm | CNT | DF DCONMS | ||||||
| DC= 12-13.5 mm | ||||||||||
| Designation | DC | DCX(1) | LU | LPR | LS | OAL | DCONMS | DF | CNT | MIID(2) |
| DR048-096-40-16-2D-N | 48.00 | 52.50 | 96.0 | 132.0 | 68.0 | 200.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR049-098-40-16-2D-N | 49.00 | 53.00 | 98.0 | 134.0 | 68.0 | 202.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR050-100-40-16-2D-N | 50.00 | 54.00 | 100.0 | 136.0 | 68.0 | 204.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR051-102-40-16-2D-N | 51.00 | 54.50 | 102.0 | 138.0 | 68.0 | 206.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR052-104-40-16-2D-N | 52.00 | 55.00 | 104.0 | 140.0 | 68.0 | 208.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR053-106-40-16-2D-N | 53.00 | 55.50 | 106.0 | 142.0 | 68.0 | 210.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR054-108-40-16-2D-N | 54.00 | 56.00 | 108.0 | 144.0 | 68.0 | 212.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR055-110-40-16-2D-N | 55.00 | 56.50 | 110.0 | 146.0 | 68.0 | 214.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR056-112-40-16-2D-N | 56.00 | 57.00 | 112.0 | 148.0 | 68.0 | 216.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR057-114-40-16-2D-N | 57.00 | 57.50 | 114.0 | 150.0 | 68.0 | 218.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR058-116-40-16-2D-N | 58.00 | 58.00 | 116.0 | 152.0 | 68.0 | 220.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR059-118-40-16-2D-N | 59.00 | 59.00 | 118.0 | 154.0 | 68.0 | 222.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
| DR060-120-40-16-2D-N | 60.00 | 60.00 | 120.0 | 156.0 | 68.0 | 224.00 | 40.00 | 60.00 | G3/4-14 | SOMT 16 |
- Hole tolerance D+0.15/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions
- For eccenter sleeves (used with tool
diameter range of 14.00-60.00 only), see page 118 For user guide and cutting conditions, see pages 117-128 (1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications (2) Master insert identification
For inserts, see pages: AOMT/AOGT (114) SOGX/T-AL (115) SOMT-DT (116) SOMT-GF (115) SOMT-HD (116) SOMX-DT (114) SOMX-GF (114) SOMX-HD (115)
