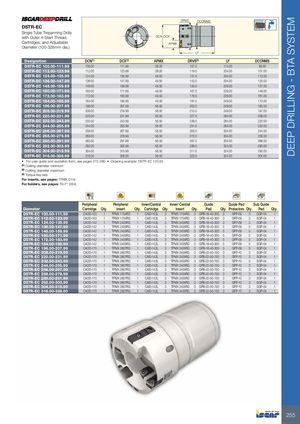

| DSTR-EC Single Tube Trepanning Drills with Outer 4-Start Thread, Cartridges, and Adjustable Diameter (100-328mm dia.) | DCN-D | CX APMX | DRVS LF DCONMS | |||
| Designation | DCN(1) | DCX(2) | APMX | DRVS(3) LF | DCONMS | |
| DSTR-EC 100.00-111.99 | 100.00 | 111.99 | 38.00 | 107.0 174.00 | 89.00 | |
| DSTR-EC 112.00-123.99 | 112.00 | 123.99 | 38.00 | 119.0 204.00 | 101.00 | |
| DSTR-EC 124.00-135.99 | 124.00 | 135.99 | 49.50 | 131.0 204.00 | 113.00 | |
| DSTR-EC 136.00-147.99 | 136.00 | 147.99 | 49.50 | 143.0 204.00 | 125.00 | |
| DSTR-EC 148.00-159.99 | 148.00 | 159.99 | 49.50 | 155.0 229.00 | 137.00 | |
| DSTR-EC 160.00-171.99 | 160.00 | 171.99 | 49.50 | 167.0 229.00 | 149.00 | |
| DSTR-EC 172.00-183.99 | 172.00 | 183.99 | 49.50 | 179.0 229.00 | 161.00 | |
| DSTR-EC 184.00-195.99 | 184.00 | 195.99 | 49.50 | 191.0 249.00 | 173.00 | |
| DSTR-EC 196.00-207.99 | 196.00 | 207.99 | 56.50 | 203.0 249.00 | 185.00 | |
| DSTR-EC 208.00-219.99 | 208.00 | 219.99 | 56.50 | 215.0 249.00 | 197.00 | |
| DSTR-EC 220.00-231.99 | 220.00 | 231.99 | 56.50 | 227.0 284.00 | 208.00 | |
| DSTR-EC 232.00-243.99 | 232.00 | 243.99 | 56.50 | 239.0 284.00 | 220.00 | |
| DSTR-EC 244.00-255.99 | 244.00 | 255.99 | 56.50 | 251.0 284.00 | 232.00 | |
| DSTR-EC 256.00-267.99 | 256.00 | 267.99 | 56.50 | 263.0 304.00 | 244.00 | |
| DSTR-EC 268.00-279.99 | 268.00 | 279.99 | 56.50 | 275.0 304.00 | 256.00 | |
| DSTR-EC 280.00-291.99 | 280.00 | 291.99 | 56.50 | 287.0 304.00 | 268.00 | |
| DSTR-EC 292.00-303.99 | 292.00 | 303.99 | 56.50 | 299.0 324.00 | 280.00 | |
| DSTR-EC 304.00-315.99 | 304.00 | 315.99 | 56.50 | 311.0 324.00 | 292.00 | |
| DSTR-EC 316.00-328.99 | 316.00 | 328.00 | 56.50 | 323.0 324.00 | 304.00 |
- For user guide and quotation form, see pages 272-280
- Ordering example: DSTR-EC 120.55
(1) Cutting diameter minimum (2) Cutting diameter maximum (3) Torque key size
For inserts, see pages: TPMX (214)
For holders, see pages: TS-I** (264)
| Diameter | Peripheral Cartridge | Qty. | Peripheral Insert | Qty. | Inner/Central Cartridge | Qty. Inner/ Central Insert | Qty. Guide Pad | Qty. Guide Pad Protectors | Qty | . Sub Guide Pad | Qty. |
| DSTR-EC 100.00-111.99 | CAOD-103 | 1 | TPMX 1704RG | 1 | CAID-103L | 3 TPMX 1704RG | 3 GPB-18-40-300 | 3 GPP-09 | 3 | SGP-04 | 1 |
| DSTR-EC 112.00-123.99 | CAOD-103 | 1 | TPMX 1704RG | 1 | CAID-103L | 3 TPMX 1704RG | 3 GPB-18-40-300 | 3 GPP-09 | 3 | SGP-04 | 1 |
| DSTR-EC 124.00-135.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-18-40-300 | 3 GPP-09 | 3 | SGP-04 | 1 |
| DSTR-EC 136.00-147.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-EC 148.00-159.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-EC 160.00-171.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-EC 172.00-183.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-EC 184.00-195.99 | CAOD-142 | 1 | TPMX 2405RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-EC 196.00-207.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-18-40-300 | 5 GPP-09 | 5 | SGP-04 | 1 |
| DSTR-EC 208.00-219.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 220.00-231.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 232.00-243.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 244.00-255.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 256.00-267.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 268.00-279.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 280.00-291.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 292.00-303.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 304.00-315.99 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
| DSTR-EC 316.00-328.00 | CAOD-170 | 1 | TPMX 2807RG | 1 | CAID-142L | 3 TPMX 2405RG | 3 GPB-22-50-750 | 3 GPP-10 | 3 | SGP-04 | 1 |
