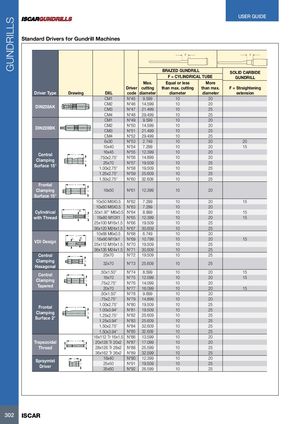

Standard Drivers for Gundrill Machines
| F BRAZED GUNDRIL | L | F SOLID CARBIDE | |||||
| F = CYLINDRIC | L TUBE | GUNDRILL | |||||
| Driver Type | Drawing | DXL | Driver code | Max. cutting diameter | Equal or less than max. cutting diameter | More than max. diameter | F = Straightening extension |
| CM1 | N°45 | 9.599 | 10 | 20 | |||
| DIN228AK | CM2 | N°46 | 14.599 | 10 | 20 | ||
| CM3 | N°47 | 21.499 | 10 | 25 | |||
| CM4 | N°48 | 29.499 | 10 | 25 | |||
| CM1 | N°49 | 9.599 | 10 | 20 | |||
| DIN228BK | CM2 | N°50 | 14.599 | 10 | 20 | ||
| CM3 | N°51 | 21.499 | 10 | 25 | |||
| CM4 | N°52 | 29.499 | 10 | 25 | |||
| 6x30 | N°53 | 2.749 | 10 | 20 | 20 | ||
| 10x40 | N°54 | 7.299 | 10 | 20 | 15 | ||
| Ctl | L | 16x45 | N°55 | 12.399 | 10 | 20 | |
| enra | .750x2.75” | N°56 | 14.899 | 10 | 20 | ||
| Clamping Sf 15° | D | 25x70 | N°57 | 19.509 | 10 | 25 | |
| urace | 1.00x2.75” | N°58 | 19.509 | 10 | 25 | ||
| 1.25x2.75” | N°59 | 25.609 | 10 | 25 | |||
| 1.50x2.75” | N°60 | 32.609 | 10 | 25 | |||
| Frontal | L | ||||||
| Clamping | D | 16x50 | N°61 | 12.399 | 10 | 20 | |
| Surface 15° | |||||||
| 10x50 M6X0.5 | N°62 | 7.299 | 10 | 20 | 15 | ||
| 10x60 M6X0.5 | N°63 | 7.299 | 10 | 20 | |||
| Cylindrical | L M | .50x1.97”M6x0.5 | N°64 | 8.999 | 10 | 20 | 15 |
| with Thread | D | 16x80 M10X1 | N°65 | 12.399 | 10 | 20 | 15 |
| 25x100 M16x1.5 | N°66 | 19.509 | 10 | 25 | |||
| 36x120 M24x1.5 | N°67 | 30.609 | 10 | 25 | |||
| L | 10x68 M6x0.5 | N°68 | 6.749 | 10 | 20 | ||
| M D | 16x90 M10x1 | N°69 | 10.799 | 10 | 20 | 15 | |
| VDI Design | 25x112 M16x1.5 | N°70 | 19.509 | 10 | 25 | ||
| 36x135 M24x1.5 | N°71 | 30.609 | 10 | 25 | |||
| Central | L | 25x70 | N°72 | 19.509 | 10 | 25 | |
| Clamping Hexagonal | D | 32x70 | N°73 | 25.609 | 10 | 25 | |
| Ctl | L | .50x1.50” | N°74 | 8.599 | 10 | 20 | 15 |
| enra Cli | 16x70 | N°75 | 12.099 | 10 | 20 | 15 | |
| ampng Tapered | D | .75x2.75” | N°76 | 14.099 | 10 | 20 | |
| 20x70 | N°77 | 16.099 | 10 | 20 | 15 | ||
| .50x1.50” | N°78 | 9.699 | 10 | 20 | |||
| .75x2.75” | N°79 | 14.899 | 10 | 20 | |||
| Ftl | L | 1.00x2.75” | N°80 | 19.509 | 10 | 25 | |
| rona | 1.00x3.94” | N°81 | 19.509 | 10 | 25 | ||
| Clamping ° | D | 1.25x2.75” | N°82 | 25.609 | 10 | 25 | |
| Surface 2 | 1.25x3.94” | N°83 | 25.609 | 10 | 25 | ||
| 1.50x2.75” | N°84 | 32.609 | 10 | 25 | |||
| 1.50x3.94” | N°85 | 32.609 | 10 | 25 | |||
| 16x112 Tr 16x1.5 | N°86 | 13.599 | 10 | 20 | |||
| Trapezoidal | L | 20x126 Tr 20x2 | N°87 | 17.099 | 10 | 20 | |
| Thread | Tr D | 28x126 Tr 28x2 | N°88 | 25.599 | 10 | 25 | |
| 36x162 Tr 36x2 | N°89 | 32.599 | 10 | 25 | |||
| Spraymist | L D | 16x40 25x50 | N°90 N°91 | 12.399 19509 | 10 10 | 20 25 | |
| Driver | 35x60 | N°92 | . 26.599 | 10 | 25 |
