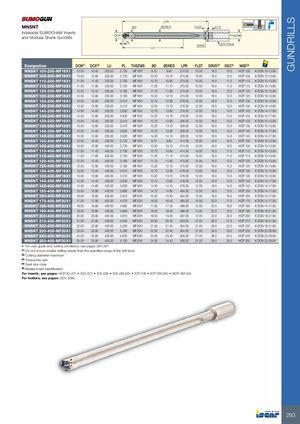

| MNSNT | BD | LPR BDRED | FLGT | 11.5 | |||||||||
| Indexable SUMOCHAM Insert | s | ||||||||||||
| D | Ck7 | TH | ZMS | ||||||||||
| and Modular Shank Gundrills | |||||||||||||
| PL | LU | DRVS | G | DV Driver | |||||||||
| Designation | DCN(1) | DCX(2) | LU | PL | THSZMS | BD | BDRED | LPR | FLGT | DRVS(3) | SSC(4) | MIID(5) | |
| MNSNT 100-200-MF16X1 | 10.00 | 10.40 | 200.00 | 2.720 | MF16X1 | 9.70 | 9.60 | 274.00 | 10.00 | 16.0 | 10.0 | HCP 100 | K DCN 10-13.99 |
| MNSNT 105-200-MF16X1 | 10.50 | 10.90 | 200.00 | 2.720 | MF16X1 | 10.20 | 10.10 | 274.00 | 10.00 | 16.0 | 10.0 | HCP 105 | K DCN 10-13.99 |
| MNSNT 110-200-MF16X1 | 11.00 | 11.40 | 200.00 | 2.750 | MF16X1 | 10.70 | 10.60 | 275.00 | 10.00 | 16.0 | 11.0 | HCP 110 | K DCN 10-13.99 |
| MNSNT 115-200-MF16X1 | 11.50 | 11.90 | 200.00 | 2.750 | MF16X1 | 11.20 | 11.10 | 275.00 | 10.00 | 16.0 | 11.0 | HCP 115 | K DCN 10-13.99 |
| MNSNT 120-200-MF16X1 | 12.00 | 12.40 | 200.00 | 3.160 | MF16X1 | 11.70 | 11.60 | 275.00 | 10.00 | 16.0 | 12.0 | HCP 120 | K DCN 10-13.99 |
| MNSNT 125-200-MF16X1 | 12.50 | 12.90 | 200.00 | 3.160 | MF16X1 | 12.20 | 12.10 | 275.00 | 12.00 | 16.0 | 12.0 | HCP 125 | K DCN 10-13.99 |
| MNSNT 130-200-MF16X1 | 13.00 | 13.40 | 200.00 | 3.510 | MF16X1 | 12.70 | 12.60 | 276.00 | 12.00 | 16.0 | 13.0 | HCP 130 | K DCN 10-13.99 |
| MNSNT 135-200-MF16X1 | 13.50 | 13.90 | 200.00 | 3.510 | MF16X1 | 13.20 | 13.10 | 276.00 | 12.00 | 16.0 | 13.0 | HCP 135 | K DCN 10-13.99 |
| MNSNT 140-200-MF16X1 | 14.00 | 14.40 | 200.00 | 3.630 | MF16X1 | 13.70 | 13.60 | 276.00 | 12.00 | 16.0 | 14.0 | HCP 140 | K DCN 14-17.99 |
| MNSNT 145-200-MF16X1 | 14.50 | 14.90 | 200.00 | 3.630 | MF16X1 | 14.20 | 14.10 | 276.00 | 12.00 | 16.0 | 14.0 | HCP 145 | K DCN 14-17.99 |
| MNSNT 130-250-MF16X1 | 13.00 | 13.40 | 250.00 | 3.510 | MF16X1 | 12.70 | 12.60 | 326.00 | 12.00 | 16.0 | 13.0 | HCP 130 | K DCN 10-13.99 |
| MNSNT 135-250-MF16X1 | 13.50 | 13.90 | 250.00 | 3.510 | MF16X1 | 13.20 | 13.10 | 326.00 | 12.00 | 16.0 | 13.0 | HCP 135 | K DCN 10-13.99 |
| MNSNT 140-250-MF16X1 | 14.00 | 14.40 | 250.00 | 3.630 | MF16X1 | 13.70 | 13.60 | 326.00 | 12.00 | 16.0 | 14.0 | HCP 140 | K DCN 14-17.99 |
| MNSNT 145-250-MF16X1 | 14.50 | 14.90 | 250.00 | 3.630 | MF16X1 | 14.20 | 14.10 | 326.00 | 12.00 | 18.0 | 14.0 | HCP 145 | K DCN 14-17.99 |
| MNSNT 100-400-MF16X1 | 10.00 | 10.40 | 400.00 | 2.720 | MF16X1 | 9.70 | 9.60 | 474.00 | 10.00 | 16.0 | 10.0 | HCP 100 | K DCN 10-13.99 |
| MNSNT 105-400-MF16X1 | 10.50 | 10.90 | 400.00 | 2.720 | MF16X1 | 10.20 | 10.10 | 474.00 | 10.00 | 16.0 | 10.0 | HCP 105 | K DCN 10-13.99 |
| MNSNT 110-400-MF16X1 | 11.00 | 11.40 | 400.00 | 2.750 | MF16X1 | 10.70 | 10.60 | 474.00 | 10.00 | 16.0 | 11.0 | HCP 110 | K DCN 10-13.99 |
| MNSNT 115-400-MF16X1 | 11.50 | 11.90 | 400.00 | 2.750 | MF16X1 | 11.20 | 11.10 | 474.00 | 10.00 | 16.0 | 11.0 | HCP 115 | K DCN 10-13.99 |
| MNSNT 120-400-MF16X1 | 12.00 | 12.40 | 400.00 | 3.160 | MF16X1 | 11.70 | 11.60 | 475.00 | 10.00 | 16.0 | 12.0 | HCP 120 | K DCN 10-13.99 |
| MNSNT 125-400-MF16X1 | 12.50 | 12.90 | 400.00 | 3.160 | MF16X1 | 12.20 | 12.10 | 475.00 | 12.00 | 16.0 | 12.0 | HCP 125 | K DCN 10-13.99 |
| MNSNT 130-400-MF16X1 | 13.00 | 13.40 | 400.00 | 3.510 | MF16X1 | 12.70 | 12.60 | 476.00 | 12.00 | 16.0 | 13.0 | HCP 130 | K DCN 10-13.99 |
| MNSNT 135-400-MF16X1 | 13.50 | 13.90 | 400.00 | 3.510 | MF16X1 | 13.20 | 13.10 | 476.00 | 12.00 | 16.0 | 13.0 | HCP 135 | K DCN 10-13.99 |
| MNSNT 140-400-MF16X1 | 14.00 | 14.40 | 400.00 | 3.630 | MF16X1 | 13.70 | 13.60 | 476.00 | 12.00 | 16.0 | 14.0 | HCP 140 | K DCN 14-17.99 |
| MNSNT 145-400-MF16X1 | 14.50 | 14.90 | 400.00 | 3.630 | MF16X1 | 14.20 | 14.10 | 476.00 | 12.00 | 18.0 | 14.0 | HCP 145 | K DCN 14-17.99 |
| MNSNT 150-400-MF16X1 | 15.00 | 15.90 | 400.00 | 3.880 | MF16X1 | 14.70 | 14.60 | 484.00 | 12.00 | 18.0 | 15.0 | HCP 150 | K DCN 14-17.99 |
| MNSNT 160-400-MF20X1 | 16.00 | 16.90 | 400.00 | 3.910 | MF20X1 | 15.50 | 15.40 | 484.00 | 12.00 | 18.0 | 16.0 | HCP 160 | K DCN 14-17.99 |
| MNSNT 170-400-MF20X1 | 17.00 | 17.90 | 400.00 | 4.570 | MF20X1 | 16.50 | 16.40 | 485.00 | 12.00 | 22.0 | 17.0 | HCP 170 | K DCN 14-17.99 |
| MNSNT 180-400-MF20X1 | 18.00 | 18.90 | 400.00 | 4.660 | MF20X1 | 17.50 | 17.40 | 486.00 | 12.00 | 22.0 | 18.0 | HCP 180 | K DCN 14-17.99 |
| MNSNT 190-400-MF20X1 | 19.00 | 19.90 | 400.00 | 4.660 | MF20X1 | 18.50 | 18.40 | 486.00 | 12.00 | 22.0 | 19.0 | HCP 190 | K DCN 18-21.99 |
| MNSNT 200-400-MF20X1 | 20.00 | 20.90 | 400.00 | 4.810 | MF20X1 | 19.50 | 19.40 | 487.00 | 12.00 | 22.0 | 20.0 | HCP 200 | K DCN 18-21.99 |
| MNSNT 210-400-MF20X1 | 21.00 | 21.90 | 400.00 | 4.940 | MF20X1 | 20.50 | 20.40 | 503.00 | 21.00 | 28.0 | 21.0 | HCP 210 | K DCN 18-21.99 |
| MNSNT 220-400-MF20X1 | 22.00 | 22.90 | 400.00 | 5.200 | MF20X1 | 21.50 | 21.40 | 504.00 | 21.00 | 28.0 | 22.0 | HCP 220 | K DCN 18-21.99 |
| MNSNT 230-400-MF20X1 | 23.00 | 23.90 | 400.00 | 5.280 | MF20X1 | 22.50 | 22.40 | 504.00 | 21.00 | 28.0 | 23.0 | HCP 230 | K DCN 22-26.99 |
| MNSNT 240-400-MF20X1 | 24.00 | 24.90 | 400.00 | 5.630 | MF20X1 | 23.50 | 23.40 | 505.00 | 21.00 | 28.0 | 24.0 | HCP 240 | K DCN 22-26.99 |
| MNSNT 250-400-MF20X1 | 25.00 | 25.90 | 400.00 | 5.700 | MF20X1 | 24.50 | 24.40 | 506.00 | 21.00 | 28.0 | 25.0 | HCP 250 | K DCN 22-26.99 |
- For user guide and cutting conditions, see pages 294-297
(1) Do not mount smaller drilling heads than the specified range of the drill body (2) Cutting diameter maximum (3) Torque key size (4) Seat size code (5) Master insert identification
For inserts, see pages: HCP-IQ (47) ICG (57) ICK (28) ICK-2M (32) ICP (18) ICP-2M (24) QCP-2M (43)
For holders, see pages: GDV (294)
